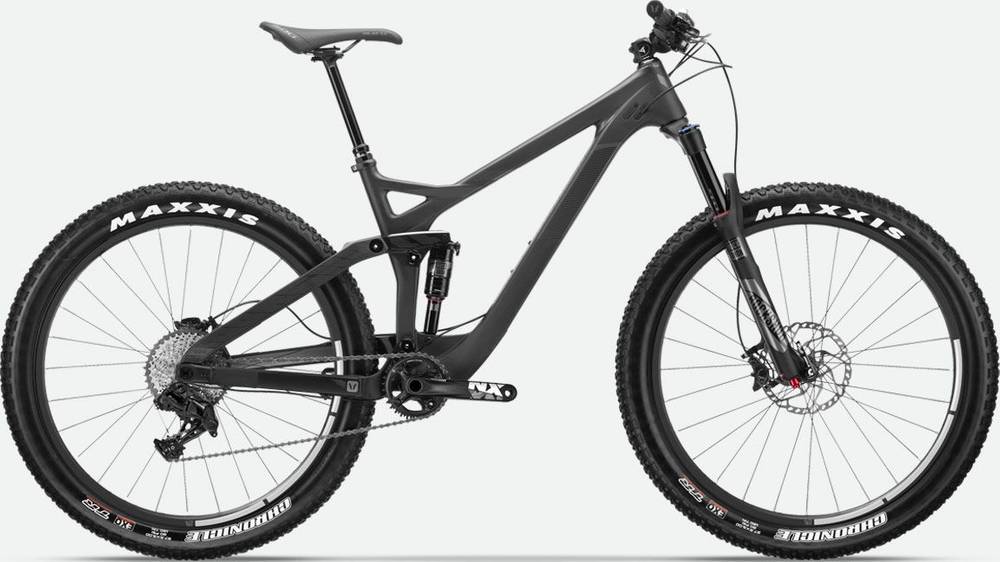

Devinci Marshall Carbon NX 2017
2017 Mountain
Estimate price |
3,789$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 110mm -
Fork RockShox Pike RC
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 110mm
Suspension Fork
RockShox Pike RC 27.5+ Solo Air 120mm
Rear Shock
RockShox Monarch RT3 Debonair 7.875x2.00
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM 11s 11-42T
Crank
RaceFace Aeffect DM30T
Chain
Shimano 11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp Wide db
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Chronicle 27.5x3.0
Brakes
Brakes
SRAM Level T
Cockpit
Stem
V2 Pro 35mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack w/SL bearing
Seat
Saddle
SDG Bel-Air
Seatpost
FSA ajustable 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Stack | 590 mm | 599 mm | 609 mm | 622 mm |
| Reach | 415 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 571 mm | 595 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° | 74.8 ° | 74.8 ° |
| Seat Tube Length | 410 mm | 435 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1143 mm | 1167 mm | 1190 mm | 1216 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 701 mm | 711 mm | 725 mm | 738 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Marshall Carbon NX is part of the Devinci Marshall model. Devinci released 29 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Devinci Marshall 29 NX 2017 is the most affordable bike of this model and has a price of 3099$. On the other hand, Devinci MARSHALL CARBON 29 X01 12S 2017, is the most expensive and costs 6539$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Devinci Marshall Carbon NX price was 3789$. If we compare this with the average Crosscountry bike cost we notice that the price is 98.9% more expensive.
Marshall Carbon NX components
Fork
Devinci Marshall Carbon NX 2017 bike is equipped with the RockShox Pike RC fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Monarch RT3 Debonair 7.875×2.00 rear shock model, which has a travel of 110mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Marshall Carbon NX model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Devinci Marshall Carbon NX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Marshall Carbon NX comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
