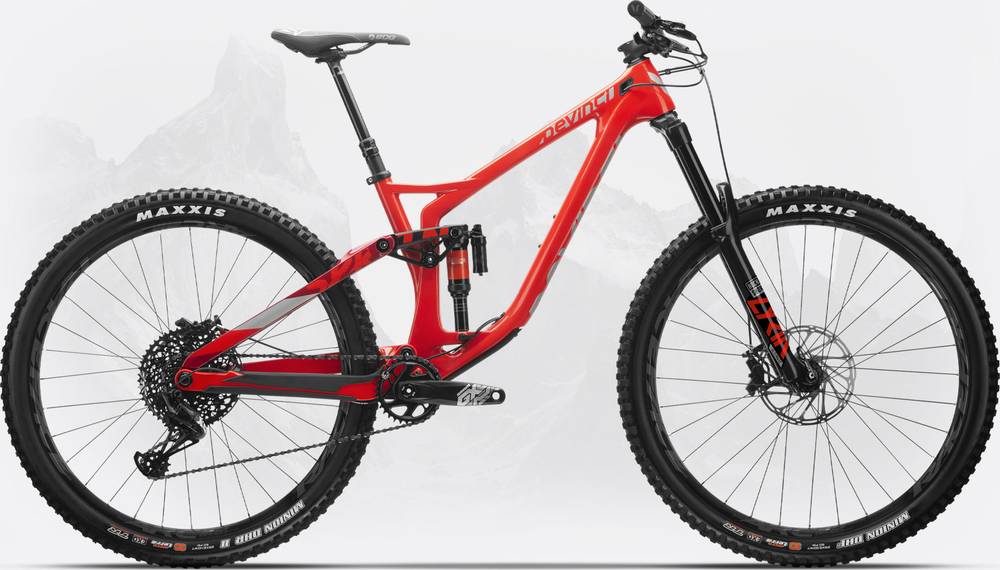

Devinci Spartan Carbon 29 X01 LTD 12s 2020
2020 Mountain
Estimate price |
6,199$
Weight | 14.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 165mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
RockShox Lyrik Ultimate RC2 DB 29 170mm 110x15 42OS 1token
Rear Shock
RockShox SuperDeluxe Ultimate RCT DB 205x65 1token
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12s
Shift Levers
SRAM GX EAGLE 12s
Cassette
SRAM XG1275-12s 10-50T XD
Crank
SRAM GX Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX Eagle 12s
Chain Guide
E13 TRS Race SL Carbon ISCG05
Wheels
Front Hub
RaceFace Vault TA 15x110
Rear Hub
RaceFace Disc Vault SB157x12 XD
Rims
RaceFace ARC35 29er | 35mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Race Face Turbine R 35 | 50mm | 0deg
Handlebar
Race Face Next R 35 Riserbar 20mm | 800mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
RockShox Reverb 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.482 mm | 1.422 mm | 1.436 mm | 1.372 mm | 1.385 mm | 1.335 mm | 1.346 mm |
| Bottom Bracket Height | 352 mm | 343 mm | 352 mm | 343 mm | 352 mm | 343 mm | 352 mm | 343 mm |
| Stack | 635 mm | 630 mm | 644 mm | 639 mm | 649 mm | 644 mm | 658 mm | 653 mm |
| Reach | 433 mm | 425 mm | 453 mm | 445 mm | 473 mm | 465 mm | 493 mm | 485 mm |
| Top Tube Length | 565 mm | 568 mm | 589 mm | 592 mm | 612 mm | 615 mm | 636 mm | 639 mm |
| Seat Tube Angle | 77.6 ° | 77.1 ° | 77.5 ° | 77 ° | 77.4 ° | 76.9 ° | 77.2 ° | 76.7 ° |
| Seat Tube Length | 400 mm | 400 mm | 425 mm | 425 mm | 460 mm | 460 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65 ° | 65.6 ° | 65 ° | 65.6 ° | 65 ° | 65.6 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1183 mm | 1184 mm | 1207 mm | 1208 mm | 1231 mm | 1232 mm | 1256 mm | 1257 mm |
| Bottom Bracket Drop | 22 mm | 31 mm | 22 mm | 31 mm | 22 mm | 31 mm | 22 mm | 31 mm |
| Standover Height | 743 mm | 740 mm | 751 mm | 748 mm | 757 mm | 754 mm | 771 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Spartan Carbon 29 X01 LTD 12s completes the Devinci Spartan model. 58 bikes variations carry this model name so far. Take a sneak peek at all Devinci Spartan bikes models from 2020, by clicking here.
Model range prices
Devinci Spartan 29 SX/NX 12s 2020 is the most affordable bike of this model and has a price of 3399$. On the other hand, Devinci Spartan Carbon 27 X01 Eagle 12S 2020, is the most expensive and costs 7899$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 6199$. In conclusion, this bike price is 72.24% more expensive than the price of the average Enduro bike.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Spartan Carbon 29 X01 LTD 12s has a weight of 14.46 kg (31.88 lbs). To sum up, it’s 1.33% heavier than the average weight of Enduro bikes.
Spartan Carbon 29 X01 LTD 12s components
Fork
This bike has the RockShox Lyrik Ultimate fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox SuperDeluxe Ultimate RCT DB 205×65 1token, with a travel distance of 165mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Spartan Carbon 29 X01 LTD 12s bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Devinci Spartan Carbon 29 X01 LTD 12s includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
