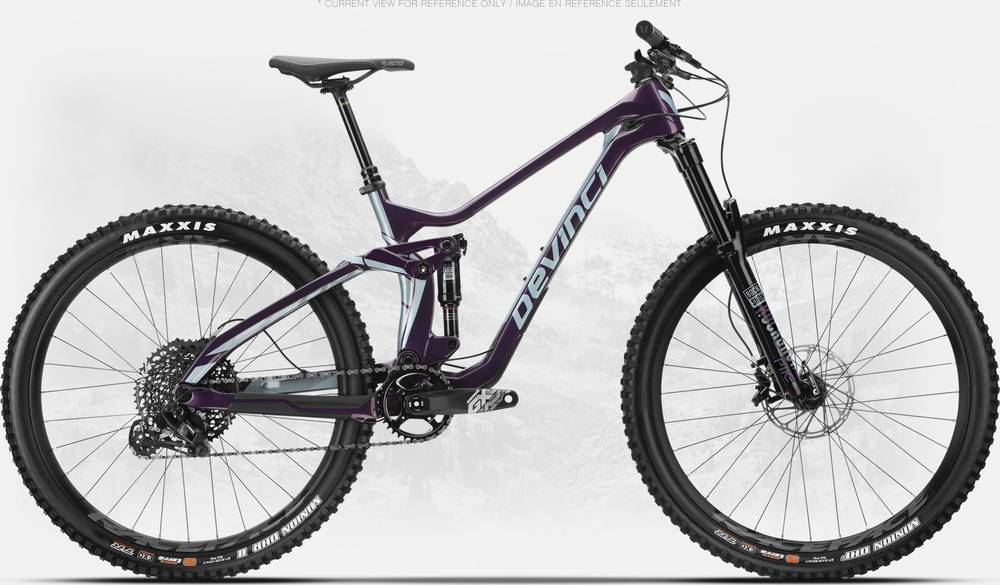

Devinci Troy Carbon 27 NX 12S 2020
2020 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation Charger RC
-
Groupset NX Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
RockShox Revelation Charger RC DB 27.5 150mm 110x15 46
Rear Shock
RockShox Deluxe RT3 Debonair 185x52.5 Trunnion,1token
Drivetrain
Rear Derailleur
SRAM NX Eagle 12s
Shift Levers
SRAM NX Eagle 12s
Cassette
SRAM PG1230-12s 11-50T
Crank
SRAM GX Eagle 34T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM NX Eagle 12s
Wheels
Front Hub
Novatec Disc D791SB-B15 TA 15x110
Rear Hub
Novatec DH82SB-S5S SB157x12
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 27.5x2.5WT 3C Compound, EXO Tubeless Ready
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Fly Mtn
Seatpost
RockShox Reverb 31.6mm 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.38 mm | 1.4 mm | 1.34 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm |
| Stack | 580 mm | 583 mm | 589 mm | 592 mm | 600 mm | 601 mm | 607 mm | 610 mm |
| Reach | 407 mm | 402 mm | 427 mm | 422 mm | 447 mm | 442 mm | 467 mm | 462 mm |
| Top Tube Length | 550 mm | 552 mm | 573 mm | 575 mm | 596 mm | 598 mm | 620 mm | 622 mm |
| Seat Tube Angle | 76.1 ° | 75.6 ° | 76 ° | 75.5 ° | 75.9 ° | 75.4 ° | 75.9 ° | 75.4 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 440 mm | 440 mm | 460 mm | 460 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm |
| Wheelbase | 1126 mm | 1126 mm | 1150 mm | 1150 mm | 1174 mm | 1174 mm | 1198 mm | 1198 mm |
| Bottom Bracket Drop | 9 mm | 16 mm | 9 mm | 16 mm | 9 mm | 16 mm | 9 mm | 16 mm |
| Standover Height | 692 mm | 687 mm | 697 mm | 692 mm | 707 mm | 702 mm | 734 mm | 729 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Troy Carbon 27 NX 12S is part of the Devinci Troy model. 66 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Devinci Troy 27 NX 2020 is the cheapest bike model and costs 2499$. Devinci Troy Carbon 29 X01 LTD 12s 2020 is the most expensive one and costs 6199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 3999$. In conclusion, this bike price is 44.79% more expensive than the price of the average Trail bike.
Overview of components
Fork
This bike has the RockShox Revelation Charger RC fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Troy Carbon 27 NX 12S has a rear shock with a travel of 140mm. The model RockShox Deluxe RT3 Debonair 185×52.5 Trunnion is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Troy Carbon 27 NX 12S 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Troy Carbon 27 NX 12S comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
