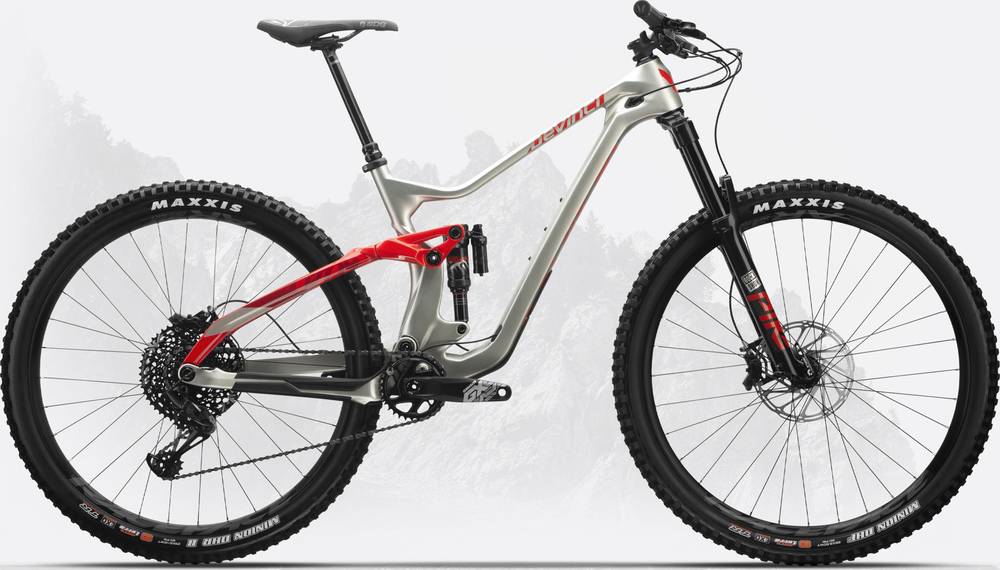

Devinci Troy Carbon 29 GX 12s 2020
2020 Mountain
Estimate price |
5,199$
Weight | 14.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike Select
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
RockShox Pike Select+ RC DB 29 150mm 110x15 42OS 1 Token
Rear Shock
RockShox Super Deluxe Ult Debonair 185x52.5 Trunnion,1token
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX EAGLE 12s
Cassette
SRAM XG1275-12s 10-50T XD
Crank
SRAM GX Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX Eagle 12s
Wheels
Front Hub
Novatec Disc D791SB-B15 TA 15x110
Rear Hub
Novatec XDH42SB/A SB157x12
Rims
RaceFace AR35 Offset 29er | 35mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
Race Face Aeffect R 35 Riserbar 20mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
RockShox Reverb 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.449 mm | 1.382 mm | 1.404 mm | 1.343 mm | 1.363 mm | 1.306 mm | 1.326 mm |
| Bottom Bracket Height | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm |
| Stack | 613 mm | 616 mm | 622 mm | 625 mm | 631 mm | 634 mm | 640 mm | 643 mm |
| Reach | 430 mm | 425 mm | 450 mm | 445 mm | 470 mm | 465 mm | 490 mm | 485 mm |
| Top Tube Length | 581 mm | 583 mm | 604 mm | 606 mm | 628 mm | 630 mm | 652 mm | 654 mm |
| Seat Tube Angle | 76.2 ° | 75.7 ° | 76.1 ° | 75.6 ° | 75.9 ° | 75.4 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | 460 mm | 460 mm | 495 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1167 mm | 1167 mm | 1191 mm | 1191 mm | 1215 mm | 1215 mm | 1242 mm | 1242 mm |
| Bottom Bracket Drop | 28 mm | 35 mm | 28 mm | 35 mm | 28 mm | 35 mm | 28 mm | 35 mm |
| Standover Height | 715 mm | 710 mm | 729 mm | 724 mm | 751 mm | 746 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Troy Carbon 29 GX 12s is a Devinci Troy model. There are 66 bikes that carry this model name. Take a sneak peek at all Devinci Troy bikes models from 2020, by clicking here.
Model range prices
Devinci Troy 27 NX 2020 is the most affordable bike of this model and has a price of 2499$. On the other hand, Devinci Troy Carbon 29 X01 LTD 12s 2020, is the most expensive and costs 6199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 5199$. Comparing the average cost of a Trail bike to this one, you will see that Troy Carbon 29 GX 12s price is 88.23% higher.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Troy Carbon 29 GX 12s weighs 14.42 kg (31.79 lbs) and is considerably heavier than the average. In conclusion, the average Trail bike weighs 11.09% less than Troy Carbon 29 GX 12s.
Overview of components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Devinci Troy Carbon 29 GX 12s bike has the RockShox Super Deluxe Ult Debonair 185×52.5 Trunnion model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Troy Carbon 29 GX 12s model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Troy Carbon 29 GX 12s has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
Devinci Troy Carbon 29 GX 12s comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
