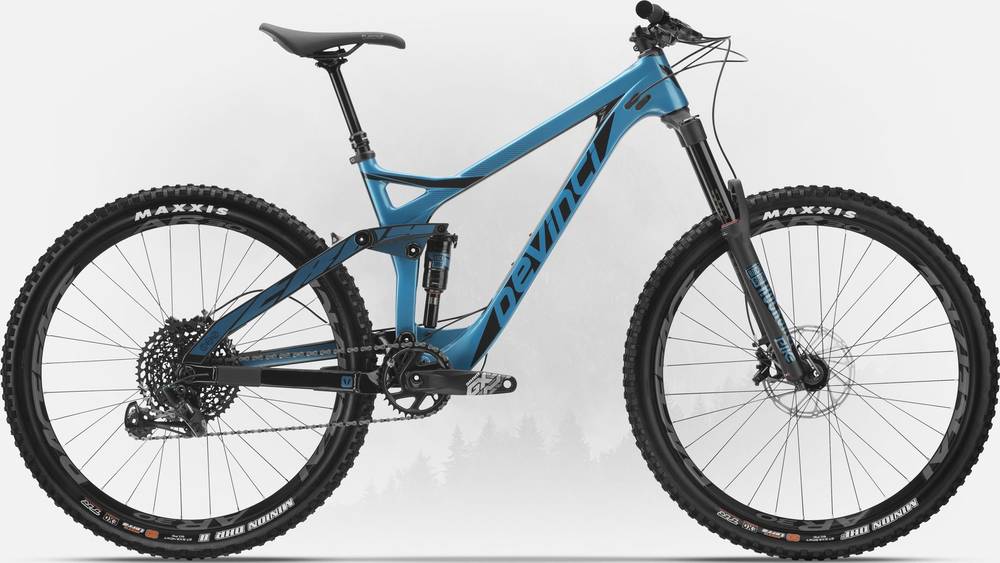

Devinci Troy Carbon NX 2018
2018 Mountain
Estimate price |
3,699$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm
Suspension Fork
RockShox Revelation RC 27.5 Solo Air 150mm Boost 110x15
Rear Shock
RockShox Monarch RT3 Debonair 7.875x2.0
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM PG1130-11s 11-42T
Crank
RaceFace Aeffect DM30T
Chain
Shimano HG601-11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp db, Tubeless Compatible 29mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 27.5x2.5WT 3C Compound, EXO Tubeless Ready
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
V2 Pro 35mm*45mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Bel-Air 2
Seatpost
RaceFace Aeffect 125mm 31.6mm 1x Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm |
| Stack | 590 mm | 592 mm | 600 mm | 602 mm | 608 mm | 611 mm | 621 mm | 625 mm |
| Reach | 417 mm | 413 mm | 437 mm | 433 mm | 457 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 571 mm | 572 mm | 594 mm | 595 mm | 617 mm | 619 mm | 643 mm | 644 mm |
| Seat Tube Angle | 74.9 ° | 74.5 ° | 74.9 ° | 74.5 ° | 74.9 ° | 74.5 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 67.4 ° | 67 ° | 67.4 ° | 67 ° | 67.4 ° | 67 ° | 67.4 ° | 67 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 417 mm | 419 mm | 417 mm | 419 mm | 417 mm | 419 mm | 417 mm | 419 mm |
| Wheelbase | 1130 mm | 1131 mm | 1153 mm | 1155 mm | 1177 mm | 1179 mm | 1203 mm | 1204 mm |
| Bottom Bracket Drop | 12 mm | 17 mm | 12 mm | 17 mm | 12 mm | 17 mm | 12 mm | 17 mm |
| Standover Height | 707 mm | 702 mm | 718 mm | 713 mm | 731 mm | 726 mm | 745 mm | 740 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Troy Carbon NX completes the Devinci Troy model. Devinci launched 66 bikes of this model so far. You can easily view all of the Devinci Troy bikes models from 2018, here.
Model range prices
Devinci Troy NX 2018 is the most affordable bike of this model and has a price of 2999$. On the other hand, Devinci Troy Carbon X01 12s 2018, is the most expensive and costs 7699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3699$. Comparing this to the average Trail bike price, we see that the price is 33.92% higher.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.1 kg (28.88 lbs), Devinci bike is slightly heavier than average. To sum up, it’s 0.92% heavier than the average weight of Trail bikes.
Troy Carbon NX components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT3 Debonair 7.875×2.0 model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Troy Carbon NX bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Troy Carbon NX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Troy Carbon NX. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
