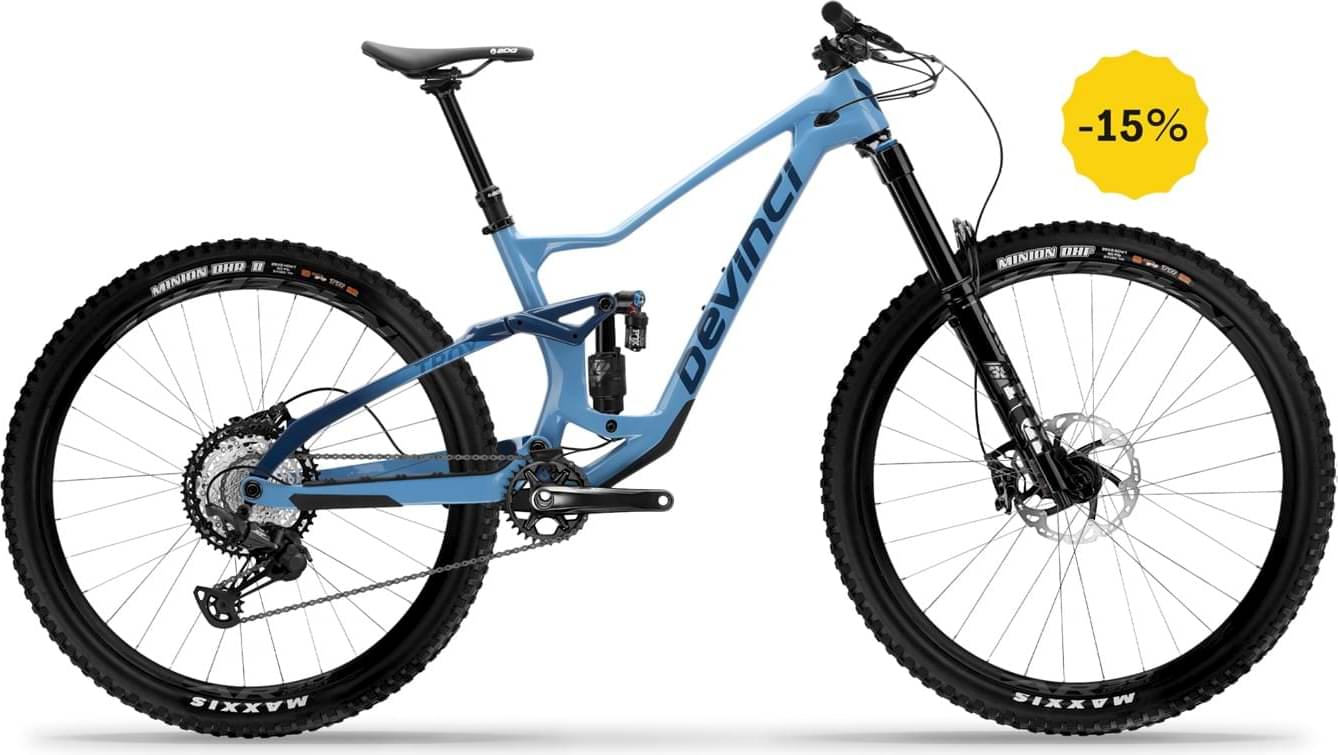

Devinci Troy Carbon XT 12S 2023
2023 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm
Suspension Fork
Fox 36 Performance Elite Grip2 160 | 44 Offset
Rear Shock
Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185x52.5
Drivetrain
Rear Derailleur
Shimano XT M8100 | 12s
Shift Levers
Shimano XT M8100 | 12s | I-spec EV
Cassette
Shimano XT M8100 | 12s | 10-51T | Microspline
Crank
Shimano XT M8130-1 | 32T | SuperBoost 157
Bottom Bracket
Shimano MT801 | BSA | 68/73mm
Chain
Shimano M7100 | 12s
Chain Guide
E*thirteen Vario | ISCG05
Wheels
Front Hub
RaceFace Vault | 6bolts | TA 15x110mm
Rear Hub
RaceFace Vault | 6bolts | TA 12x157mm | Microspline
Rims
RaceFace ARC30 | 30mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxGrip DoubleDown TR, Rear: Maxxis Minion DHF | 29x2.5wt | 3C MaxxGrip DoubleDown TR
Brakes
Brakes
Front: Shimano XT M8120/M8100 | 4 Pistons, Rear: Shimano XT M8120/M8100 | 4 Pistons
Cockpit
Stem
RaceFace Turbine R35 | B:35mm | L:40mm | 0°
Handlebar
RaceFace Next R35 | B:35mm | R:20mm | W:800mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis 34.9mm | Travel 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.391 mm | 1.327 mm | 1.35 mm | 1.291 mm | 1.315 mm | 1.257 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm |
| Stack | 608 mm | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 445 mm | 440 mm | 465 mm | 460 mm | 485 mm | 480 mm | 505 mm | 500 mm |
| Top Tube Length | 573 mm | 574 mm | 597 mm | 598 mm | 625 mm | 626 mm | 654 mm | 655 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78 ° | 77.5 ° | 77.4 ° | 76.9 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 400 mm | 400 mm | 420 mm | 420 mm | 445 mm | 445 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 435 mm | 433 mm | 435 mm | 438 mm | 440 mm | 443 mm | 445 mm |
| Wheelbase | 1189 mm | 1190 mm | 1213 mm | 1215 mm | 1243 mm | 1244 mm | 1272 mm | 1273 mm |
| Bottom Bracket Drop | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm |
| Standover Height | 738 mm | 733 mm | 759 mm | 754 mm | 775 mm | 769 mm | 786 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
Model Overview
Troy Carbon XT 12S is a Devinci Troy model. There are 66 bikes that carry this model name. Take a sneak peek at all Devinci Troy bikes models from 2023, by clicking here.
Model range prices
Devinci Troy NX 12S 2023 is the cheapest bike model and costs 3399$. Devinci Troy Carbon XT 12S 2023 is the most expensive one and costs 6999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. Doing a quick comparison, we notice that Troy Carbon XT 12S price is 153.4% more expensive than the average cost of a Trail bike.
Troy Carbon XT 12S components
Fork
The Fox Performance Elite Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Troy Carbon XT 12S has a rear shock with a travel of 140mm. The model Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185×52.5 is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Troy Carbon XT 12S 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Troy Carbon XT 12S comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Devinci model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
