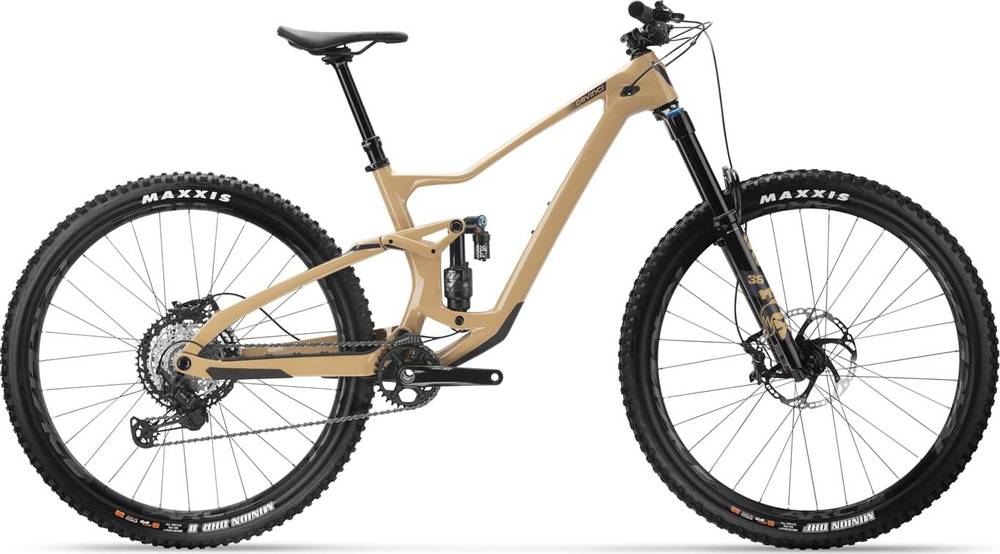

Devinci Troy Carbon XT 12S LTD 2021
2021 Mountain
Estimate price |
6,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm
Suspension Fork
Fox Float 36 Performance Elite Grip2 160 | 44 Offset
Rear Shock
Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185x52.5
Drivetrain
Rear Derailleur
Shimano XT M8100 | 12s
Shift Levers
Shimano XT M8100 | 12s | I-spec EV
Cassette
Shimano XT M8100 | 12s | 10-51T | Microspline
Crank
Shimano XT M8130-1 | 32T | SuperBoost 157
Bottom Bracket
Shimano MT800 | BSA | 68/73mm
Chain
Shimano M7100 | 12s
Wheels
Front Hub
RaceFace Vault | 6bolts | TA 15x110mm
Rear Hub
RaceFace Vault | 6bolts | TA 12x157mm | Microspline
Rims
RaceFace ARC35 | 35mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.5wt | 3C MaxxGrip DoubleDown TR
Brakes
Brakes
Shimano XT M8120/M8100 | 4 Pistons
Disk Rotors
Shimano RT76 | 203mm
Cockpit
Stem
RaceFace Turbine R35 | B:35mm | L:50mm | 0°
Handlebar
RaceFace Next R35 | B:35mm | R:20mm | W:800mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis | 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.391 mm | 1.327 mm | 1.35 mm | 1.291 mm | 1.315 mm | 1.257 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm |
| Stack | 608 mm | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 445 mm | 440 mm | 465 mm | 460 mm | 485 mm | 480 mm | 505 mm | 500 mm |
| Top Tube Length | 573 mm | 574 mm | 597 mm | 598 mm | 625 mm | 626 mm | 654 mm | 655 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78 ° | 77.5 ° | 77.4 ° | 76.9 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 400 mm | 400 mm | 420 mm | 420 mm | 445 mm | 445 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 435 mm | 433 mm | 435 mm | 438 mm | 440 mm | 443 mm | 445 mm |
| Wheelbase | 1189 mm | 1190 mm | 1213 mm | 1215 mm | 1243 mm | 1244 mm | 1272 mm | 1273 mm |
| Bottom Bracket Drop | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm |
| Standover Height | 717 mm | 712 mm | 739 mm | 734 mm | 755 mm | 750 mm | 768 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
Model Overview
Troy Carbon XT 12S LTD is a Devinci Troy model. 66 bikes variations carry this model name so far. Take a sneak peek at all Devinci Troy bikes models from 2021, by clicking here.
Model range prices
Devinci Troy SX 12S 2021 is the cheapest bike model and costs 2999$. Devinci Troy Carbon XT 12S LTD 2021 is the most expensive one and costs 6699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 6699$. If we compare this with the average Trail bike cost we notice that the price is 142.54% more expensive.
Troy Carbon XT 12S LTD components
Fork
The Troy Carbon XT 12S LTD comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Troy Carbon XT 12S LTD has a rear shock with a travel of 140mm. The model Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185×52.5 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Troy Carbon XT 12S LTD 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
