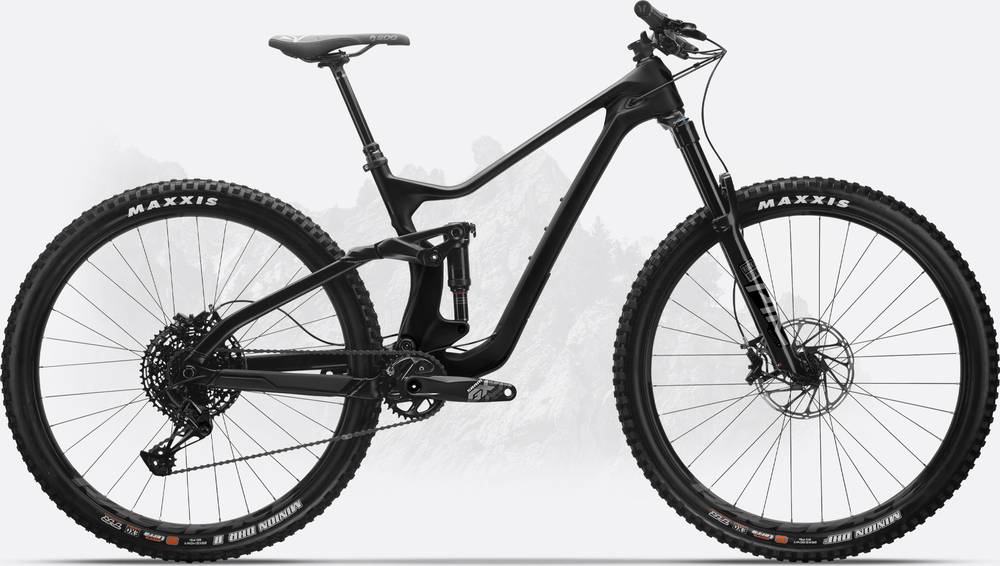

Devinci Troy Carbon/Alu 29 GX 12S 2020
2020 Mountain
Estimate price |
4,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike Select
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
RockShox Pike Select+ RC DB 29 150mm 110x15 42OS 1 Token
Rear Shock
RockShox Deluxe Ultimate Debonair 185x52.5 Trunnion,1token
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX EAGLE 12s
Cassette
SRAM XG1275-12s 10-50T XD
Crank
SRAM GX Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX Eagle 12s
Wheels
Front Hub
Novatec Disc D791SB-B15 TA 15x110
Rear Hub
Novatec XDH42SB/A SB157x12
Rims
RaceFace AR35 Offset 29er | 35mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
Race Face Aeffect R 35 Riserbar 20mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
RockShox Reverb 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.449 mm | 1.382 mm | 1.404 mm | 1.343 mm | 1.363 mm | 1.306 mm | 1.326 mm |
| Bottom Bracket Height | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm |
| Stack | 613 mm | 616 mm | 622 mm | 625 mm | 631 mm | 634 mm | 640 mm | 643 mm |
| Reach | 430 mm | 425 mm | 450 mm | 445 mm | 470 mm | 465 mm | 490 mm | 485 mm |
| Top Tube Length | 581 mm | 583 mm | 604 mm | 606 mm | 628 mm | 630 mm | 652 mm | 654 mm |
| Seat Tube Angle | 76.2 ° | 75.7 ° | 76.1 ° | 75.6 ° | 75.9 ° | 75.4 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | 460 mm | 460 mm | 495 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1167 mm | 1167 mm | 1191 mm | 1191 mm | 1215 mm | 1215 mm | 1242 mm | 1242 mm |
| Bottom Bracket Drop | 28 mm | 35 mm | 28 mm | 35 mm | 28 mm | 35 mm | 28 mm | 35 mm |
| Standover Height | 715 mm | 710 mm | 729 mm | 724 mm | 751 mm | 746 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Troy Carbon/Alu 29 GX 12S is part of the Devinci Troy model. 66 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Devinci Troy 27 NX 2020 is the most affordable bike of this model and has a price of 2499$. On the other hand, Devinci Troy Carbon 29 X01 LTD 12s 2020, is the most expensive and costs 6199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Devinci released this model in 2020, its price was 4699$. Comparing this to the average Trail bike price, we see that the price is 70.13% more expensive.
Troy Carbon/Alu 29 GX 12S components
Fork
The RockShox Pike Select is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Ultimate Debonair 185×52.5 Trunnion rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Troy Carbon/Alu 29 GX 12S model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Troy Carbon/Alu 29 GX 12S comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
The Devinci model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
