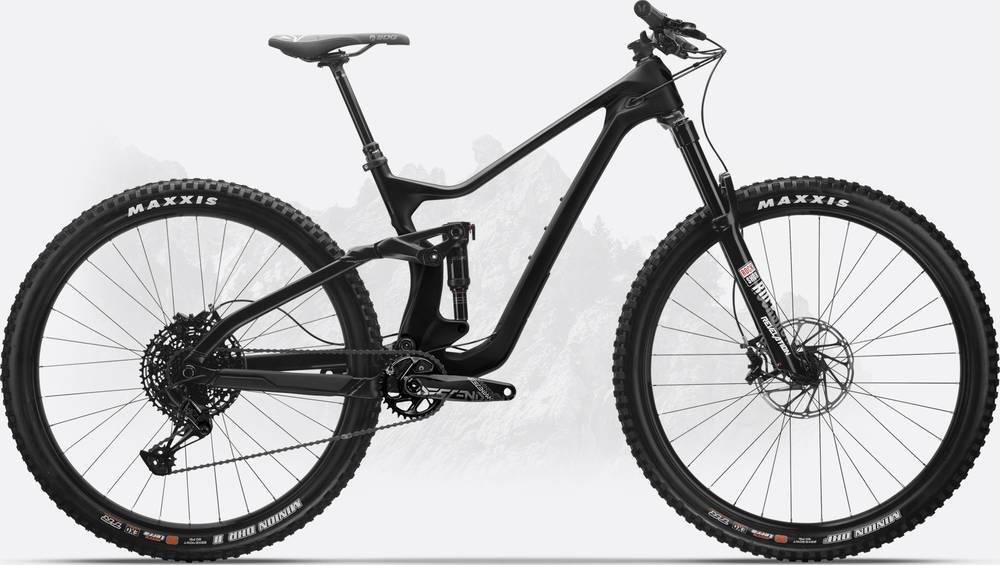

Devinci Troy Carbon/Alu 29 NX/GX 12S 2020
2020 Mountain
Estimate price |
4,199$
Weight | 15.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
RockShox Revelation RC DB 29 150mm 110x15 42OS 1Token
Rear Shock
RockShox Deluxe Ultimate Debonair 185x52.5 Trunnion,1token
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM NX Eagle 12s
Cassette
SRAM PG1230-12s 11-50T
Crank
Truvativ Descendant Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM NX Eagle 12s
Wheels
Front Hub
Novatec Disc D791SB-B15 TA 15x110
Rear Hub
Novatec DH82SB-S5S SB157x12
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
RockShox Reverb 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.449 mm | 1.382 mm | 1.404 mm | 1.343 mm | 1.363 mm | 1.306 mm | 1.326 mm |
| Bottom Bracket Height | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm | 346 mm | 339.5 mm |
| Stack | 613 mm | 616 mm | 622 mm | 625 mm | 631 mm | 634 mm | 640 mm | 643 mm |
| Reach | 430 mm | 425 mm | 450 mm | 445 mm | 470 mm | 465 mm | 490 mm | 485 mm |
| Top Tube Length | 581 mm | 583 mm | 604 mm | 606 mm | 628 mm | 630 mm | 652 mm | 654 mm |
| Seat Tube Angle | 76.2 ° | 75.7 ° | 76.1 ° | 75.6 ° | 75.9 ° | 75.4 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | 460 mm | 460 mm | 495 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1167 mm | 1167 mm | 1191 mm | 1191 mm | 1215 mm | 1215 mm | 1242 mm | 1242 mm |
| Bottom Bracket Drop | 28 mm | 35 mm | 28 mm | 35 mm | 28 mm | 35 mm | 28 mm | 35 mm |
| Standover Height | 715 mm | 710 mm | 729 mm | 724 mm | 751 mm | 746 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Troy Carbon/Alu 29 NX/GX 12S is a Devinci Troy model. Devinci released 66 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Devinci Troy 27 NX 2020 is the most affordable bike of this model and has a price of 2499$. On the other hand, Devinci Troy Carbon 29 X01 LTD 12s 2020, is the most expensive and costs 6199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 4199$. In conclusion, this bike price is 52.03% more expensive than the price of the average Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 15.02 kg (33.11 lbs), Devinci bike is much heavier than average. In short, the average Trail bike weight is 15.72% lower than this one.
Troy Carbon/Alu 29 NX/GX 12S components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Devinci Troy Carbon/Alu 29 NX/GX 12S bike has the RockShox Deluxe Ultimate Debonair 185×52.5 Trunnion model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Troy Carbon/Alu 29 NX/GX 12S are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
The Devinci model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
