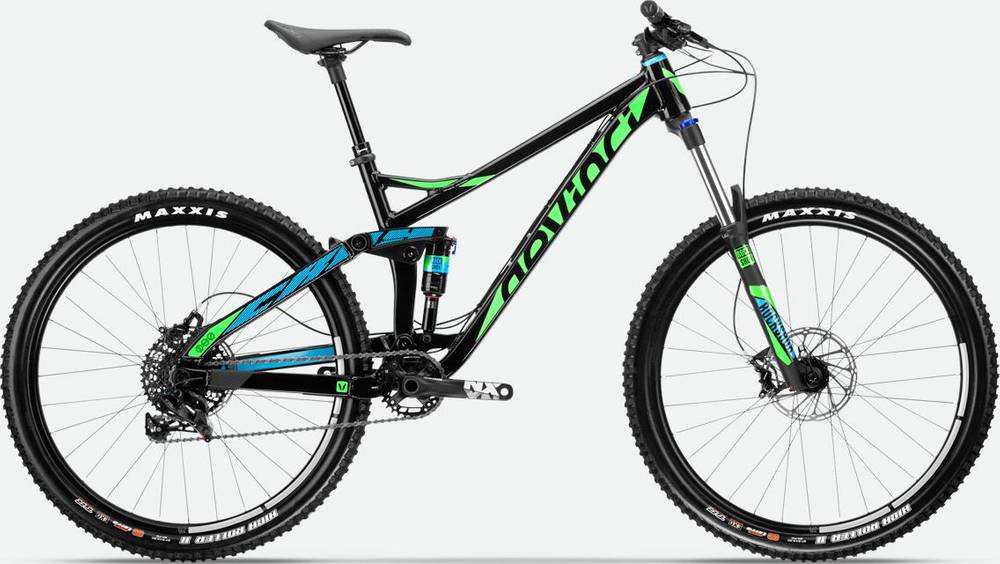

Devinci Troy NX 2017
2017 Mountain
Estimate price |
2,829$
Weight | 15.22 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 140mm
Suspension Fork
RockShox Sektor RL 27.5 Solo Air 150mm Boost 110x15
Rear Shock
Rock Shox Monarch RT Debonair 7.875x2.0
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM 11s 11-42T
Crank
SRAM NX 30T Boost 148
Bottom Bracket
SRAM BB92
Chain
Shimano 11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp db
Spokes
Stainless 14G w/Nylok
Tires
Maxxis HighRoller II 27.5x2.3" 3C Compound EXO protection
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
V2 Pro 35mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Bel-Air
Seatpost
FSA ajustable 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm |
| Stack | 590 mm | 592 mm | 600 mm | 602 mm | 608 mm | 611 mm | 621 mm | 625 mm |
| Reach | 417 mm | 413 mm | 437 mm | 433 mm | 457 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 571 mm | 572 mm | 594 mm | 595 mm | 617 mm | 619 mm | 643 mm | 644 mm |
| Seat Tube Angle | 74.9 ° | 74.5 ° | 74.9 ° | 74.5 ° | 74.9 ° | 74.5 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 67.4 ° | 67 ° | 67.4 ° | 67 ° | 67.4 ° | 67 ° | 67.4 ° | 67 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 417 mm | 419 mm | 417 mm | 419 mm | 417 mm | 419 mm | 417 mm | 419 mm |
| Wheelbase | 1130 mm | 1131 mm | 1153 mm | 1155 mm | 1177 mm | 1179 mm | 1203 mm | 1204 mm |
| Bottom Bracket Drop | 12 mm | 17 mm | 12 mm | 17 mm | 12 mm | 17 mm | 12 mm | 17 mm |
| Standover Height | 710 mm | 705 mm | 721 mm | 716 mm | 741 mm | 736 mm | 761 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Troy NX is a Devinci Troy model. 66 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Devinci Troy S 2017 is the cheapest bike model and costs 2299$. Devinci Troy Carbon X01 2017 is the most expensive one and costs 6729$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Devinci Troy NX price was 2829$. If we compare this with the average Trail bike cost we notice that the price is 2.43% higher.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Troy NX has a weight of 15.22 kg (33.55 lbs). In other words, this model is 17.26% heavier than the average Trail bike.
Troy NX components
Fork
Devinci Troy NX 2017 bike is equipped with the RockShox Sektor fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Rock Shox Monarch RT Debonair 7.875×2.0 rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Troy NX are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Troy NX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
