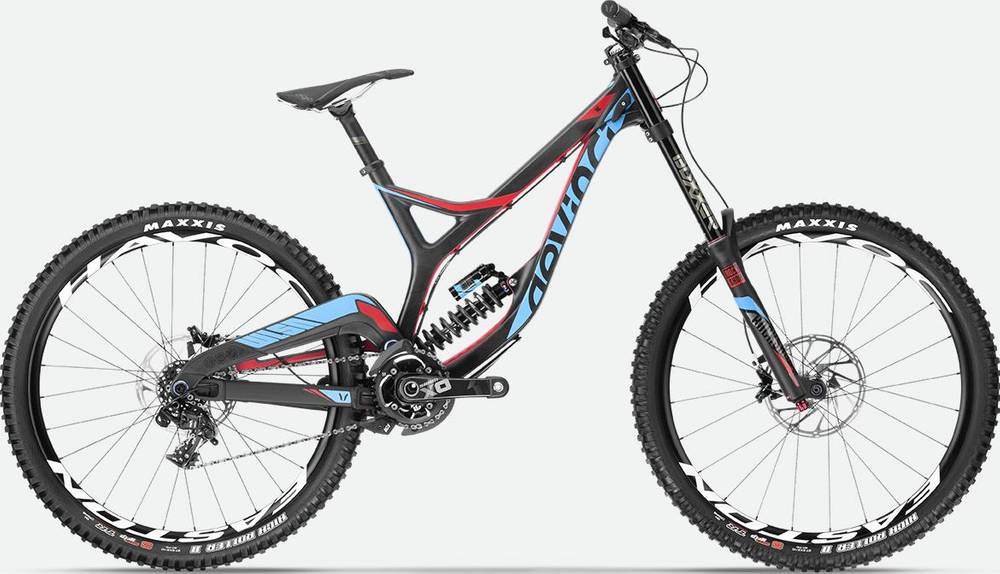

Devinci Wilson Carbon X01 DH 2017
2017 Mountain
Estimate price |
5,439$
Weight | 16.44 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 204mm -
Fork RockShox BoXXer
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 204mm
Suspension Fork
RockShox Boxxer WorldCup 27.5 Solo Air 200mm
Rear Shock
RockShox Vivid R2C 9.5x3.0
Drivetrain
Rear Derailleur
SRAM XO1 DH X-Actuation
Shift Levers
SRAM XO1 DH 7s
Cassette
SRAM 7s 10-24T
Crank
SRAM XO1 36T
Bottom Bracket
SRAM GXP
Chain
Shimano HG601-11s
Chain Guide
E13 LG1+ with Taco Bash
Wheels
Rims
Easton Havoc 27.5 20mm axle
Tires
Maxxis High Roller II 27.5x2.4" 3C Compound, Tubeless Ready, DH casing
Brakes
Brakes
SRAM Guide Ultimate
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Chromag BZA direct mount
Handlebar
Chromag BZA 35 800mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack w/SL bearing
Seat
Saddle
Saddle SDG Fly RL CrMo rail
Seatpost
V2 Pro 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.44 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm | 356 mm |
| Stack | 600 mm | 600 mm | 600 mm | 600 mm |
| Reach | 397 mm | 417 mm | 442 mm | 457 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 432 mm | 445 mm | 457 mm |
| Head Tube Angle | 63.2 ° | 63.2 ° | 63.2 ° | 63.2 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1183 mm | 1203 mm | 1228 mm | 1243 mm |
| Bottom Bracket Drop | -1 mm | -1 mm | -1 mm | -1 mm |
| Standover Height | 736 mm | 736 mm | 736 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Wilson Carbon X01 DH is part of the Devinci Wilson model. Devinci released 27 bikes variations of this model so far. You can easily view all of the Devinci Wilson bikes models from 2017, here.
Model range prices
Devinci Wilson XP 2017 is the cheapest bike model and costs 2709$. Devinci Wilson Carbon X01 DH 2017 is the most expensive one and costs 5439$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 5439$. Comparing the average cost of a Downhill bike to this one, you will see that Wilson Carbon X01 DH price is 60.4% higher.
Downhill bikes average weight
If we make a quick analysis of the average weight of a Downhill bike, we get 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Wilson Carbon X01 DH weighs 16.44 kg (36.24 lbs) and is slightly heavier than the average. To sum up, it’s 3.46% heavier than the average weight of Downhill bikes.
Overview of components
Fork
Devinci Wilson Carbon X01 DH 2017 bike is equipped with the RockShox BoXXer fork, and has 200mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Vivid R2C 9.5×3.0, with a travel distance of 204mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Wilson Carbon X01 DH bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Wilson Carbon X01 DH has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Devinci Wilson Carbon X01 DH bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
