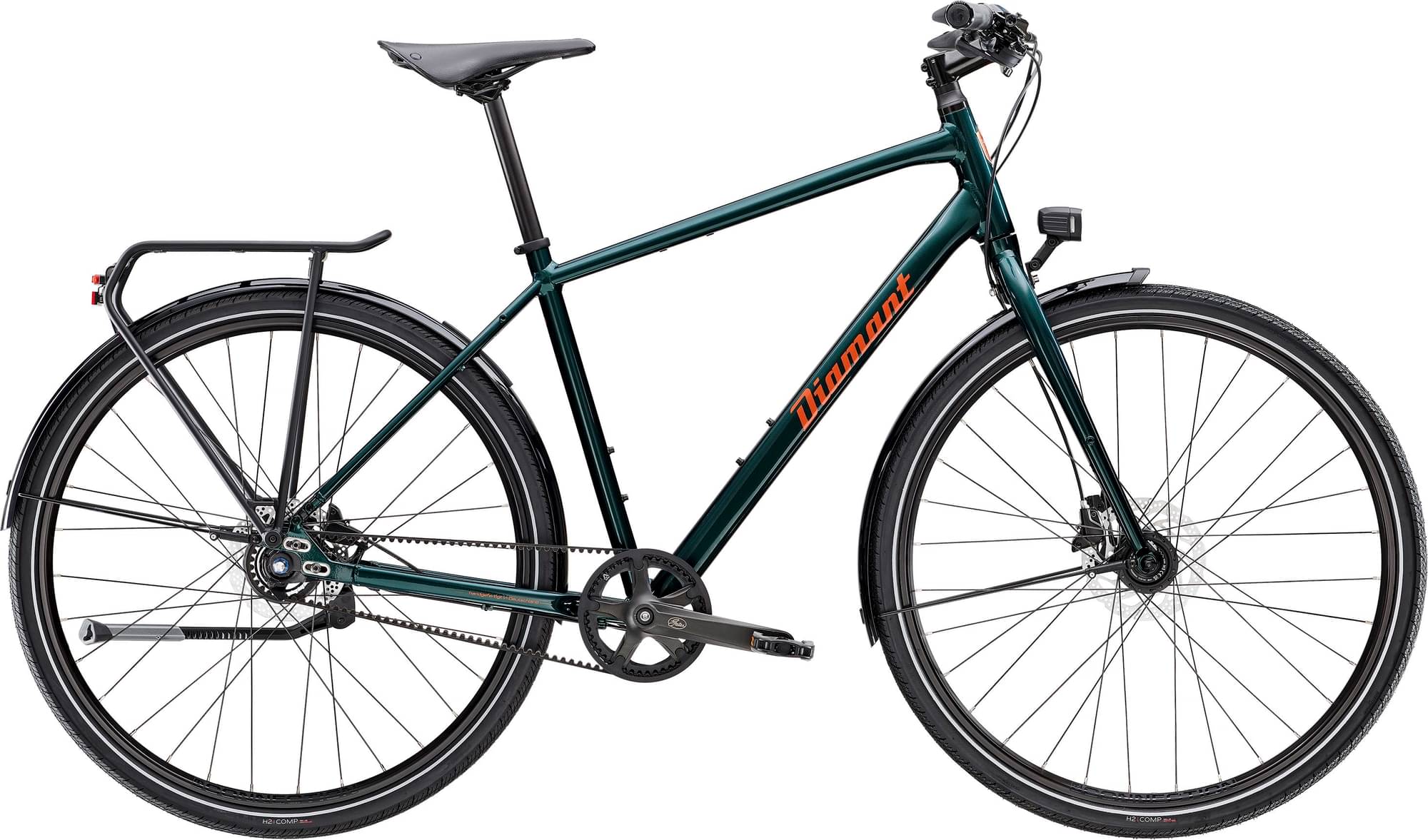

diamant 247 Deluxe 2023
2023 Urban
Estimate price |
2,344$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alfine, Gates CDN -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
164cm - 177cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, internal cable routing, drive belt compatible, post mount disc brake mount
Suspension Fork
Rigid fork on aluminum with lowrider eyelets
Drivetrain
Shift Levers
Shimano Alfine, 11-speed
Cassette
Gates CDC CenterTrack, 24 Z.
Crank
Gates CDN S150, 46 teeth. 175 mm crank arm length VP BC73C, 68 mm, threaded
Bottom Bracket
BSA, 73mm, threaded
Chain
Gates CDN CenterTrac
Pedals
Non-slip aluminum pedals with reflectors
Wheels
Rims
Bontrager Connection, hollow chamber rim, 32 holes, 20 mm inner width, Presta valve
Brakes
Brakes
Shimano MT200 hydraulic disc brake
Cockpit
Stem
Bontrager Comp, 31 8mm, Blendr compatible, 7 degree, 100mm length
Handlebar
Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 690mm width
Seat
Saddle
Brooks C17 Cambium Bold
Seatpost
Aluminum Bontrager, 27.2mm, 12mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.608 mm | 1.647 mm | 1.658 mm |
| Front Center | 64 mm | 63 mm | 66 mm |
| Rake | 6 mm | 3 mm | 5 mm |
| Trail | 110 mm | 110 mm | 105 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 177 cm | 187 cm | 197 cm |
Model Overview
247 Deluxe belongs to the Diamant 247 model. 4 bikes variations carry this model name so far. Take a sneak peek at all Diamant 247 bikes models from 2023, by clicking here.
Model range prices
Diamant 247 2023 is the most economical model, with a starting price of 1490$. Diamant 247 Deluxe 2023 on the other hand costs 2097$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2097$. Comparing the average cost of a Commuter bike to this one, you will see that 247 Deluxe price is 175.2% higher.
Commuter bikes average weight
Commuter bikes weigh an average of 14.29 kg (31.5 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
247 Deluxe weighs 14 kg (30.86 lbs) and is slightly lighter than the average. In short, the average Commuter bike weight is 2.07% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
247 Deluxe components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on 247 Deluxe are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamant 247 Deluxe has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
247 Deluxe comes in 3 sizes, that range from 164 cm – 197 cm (5.38 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
