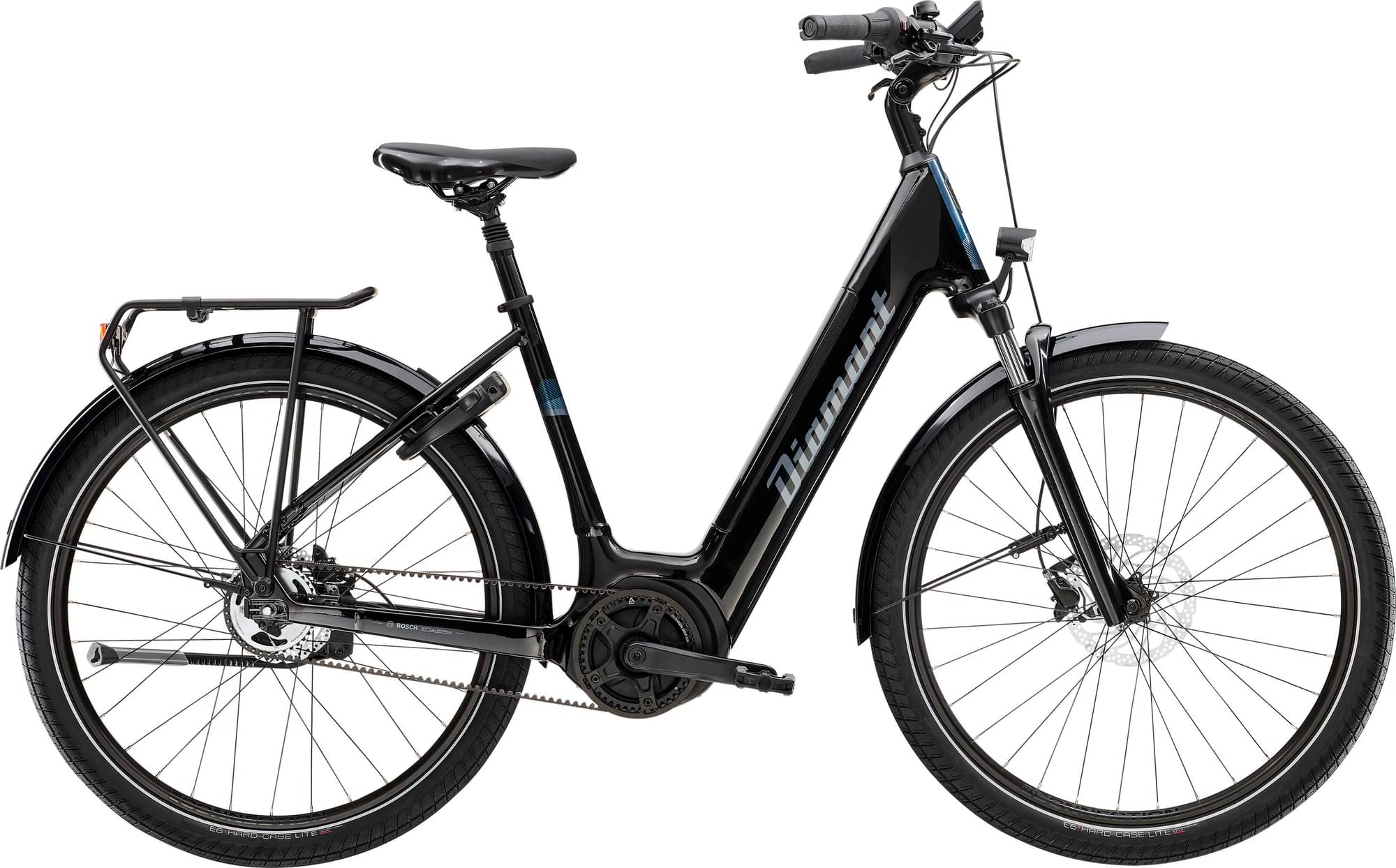

diamant Beryll Esprit Gen 3 2023
2023 E-bike
Estimate price |
4,472$
Weight | 28.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack 545 / 725, Smart System -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, Removable Integrated Battery, internal cable routing, Motor Armor, post mount disc brake mount, 135 x 5 mm quick release axle
Suspension Fork
SR Suntour NVX30, coil spring, adjustable spring preload, 100mm QR axle, 60mm travel
Drivetrain
Shift Levers
Shimano Nexus C7000, 5-speed
Cassette
Gates CDX, 36 Z. Steel
Crank
ProWheel, aluminum, 170 mm crank arm length
Chain
Gates CDX, 130 Z.
Pedals
non-slip pedals with reflectors
Wheels
Rims
Bontrager Connection, hollow chamber rim, 32 holes, 20 mm inner width, Presta valve
Brakes
Brakes
Shimano MT200 hydraulic disc brake
Cockpit
Stem
Bontrager, aluminum, 31.8mm clamp diameter, adjustable rise, Blendr compatible, 85mm length
Handlebar
Aluminum, 31.8mm clamp, 25mm rise, 630mm width
Seat
Saddle
Selle Royal Nuvola
Seatpost
Aluminum, spring-loaded, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Performance Line Cruise, 250 W, 75 Nm, 25 km/h
Battery
Bosch Powerpack 545 / 725, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.726 mm | 1.636 mm | 1.686 mm | 1.735 mm |
| Front Center | 64 mm | 65 mm | 66 mm | 67 mm |
| Rake | 9.5 mm | 9.5 mm | 9.5 mm | 9.5 mm |
| Trail | 128 mm | 129 mm | 128 mm | 128 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm |
Model Overview
Beryll Esprit Gen 3 completes the Diamant E Beryll model. 5 e-bikes variations carry this model name so far. You can easily view all of the Diamant E Beryll e-bikes models from 2023, here.
Model range prices
Diamant Beryll Gen 3 2023 is the cheapest e-bike model and costs 3928$. Diamant Beryll 160 Gen 3 2023 is the most expensive one and costs 4352$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 4140$. If we compare this with the average Commuter e-bike cost we notice that the price is 61.15% higher.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 24.02 kg (52.95 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, Beryll Esprit Gen 3 has a weight of 28.5 kg (62.83 lbs). In short, the average Commuter e-bike weight is 18.65% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Suntour NVX model. The travel on this model is 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Beryll Esprit Gen 3 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamant Beryll Esprit Gen 3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Diamant Beryll Esprit Gen 3 e-bike has 4 sizes, in the range of 147 cm – 187 cm (4.82 ft – 6.14 ft). In short, you can easily find one that suits you.
