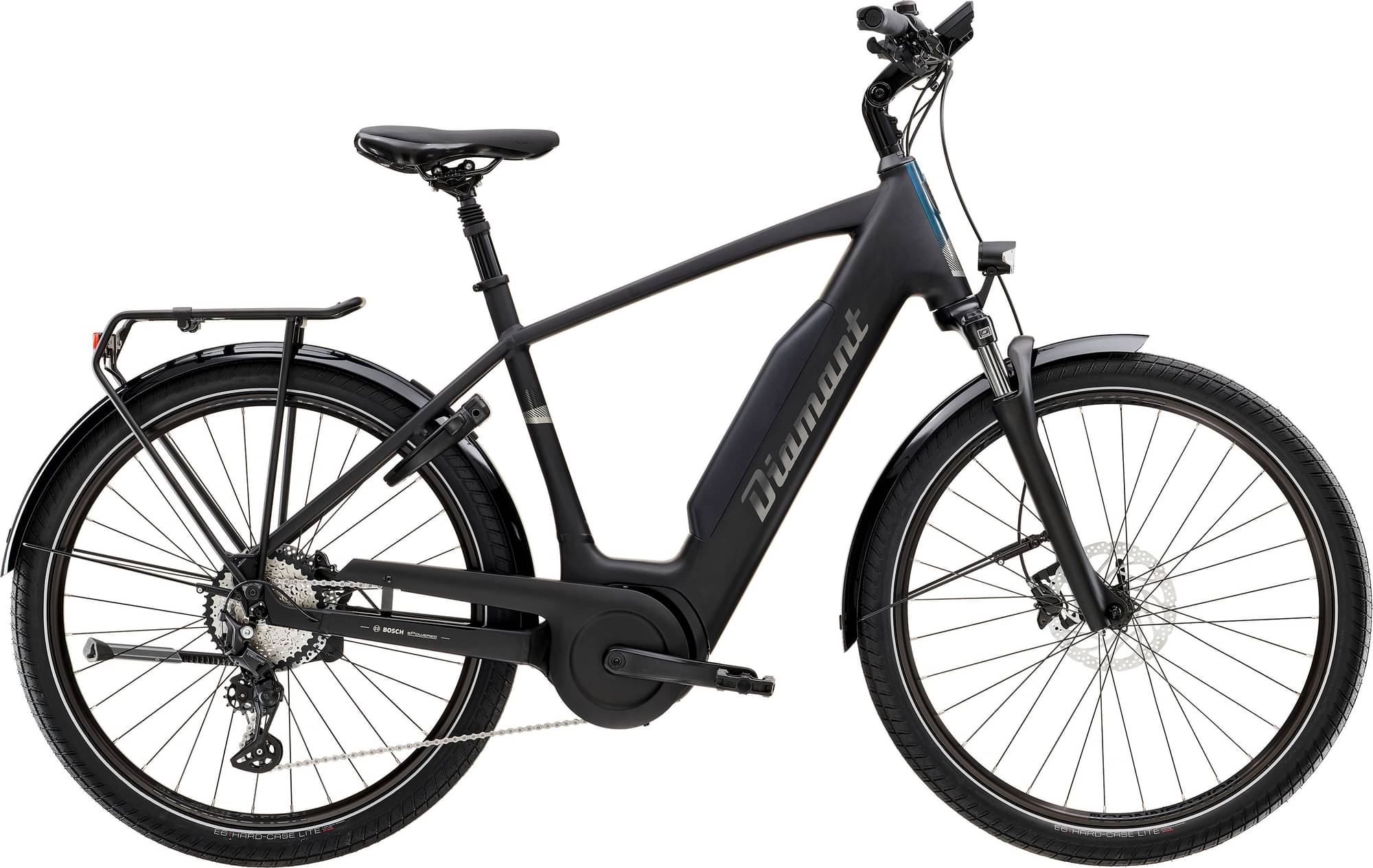

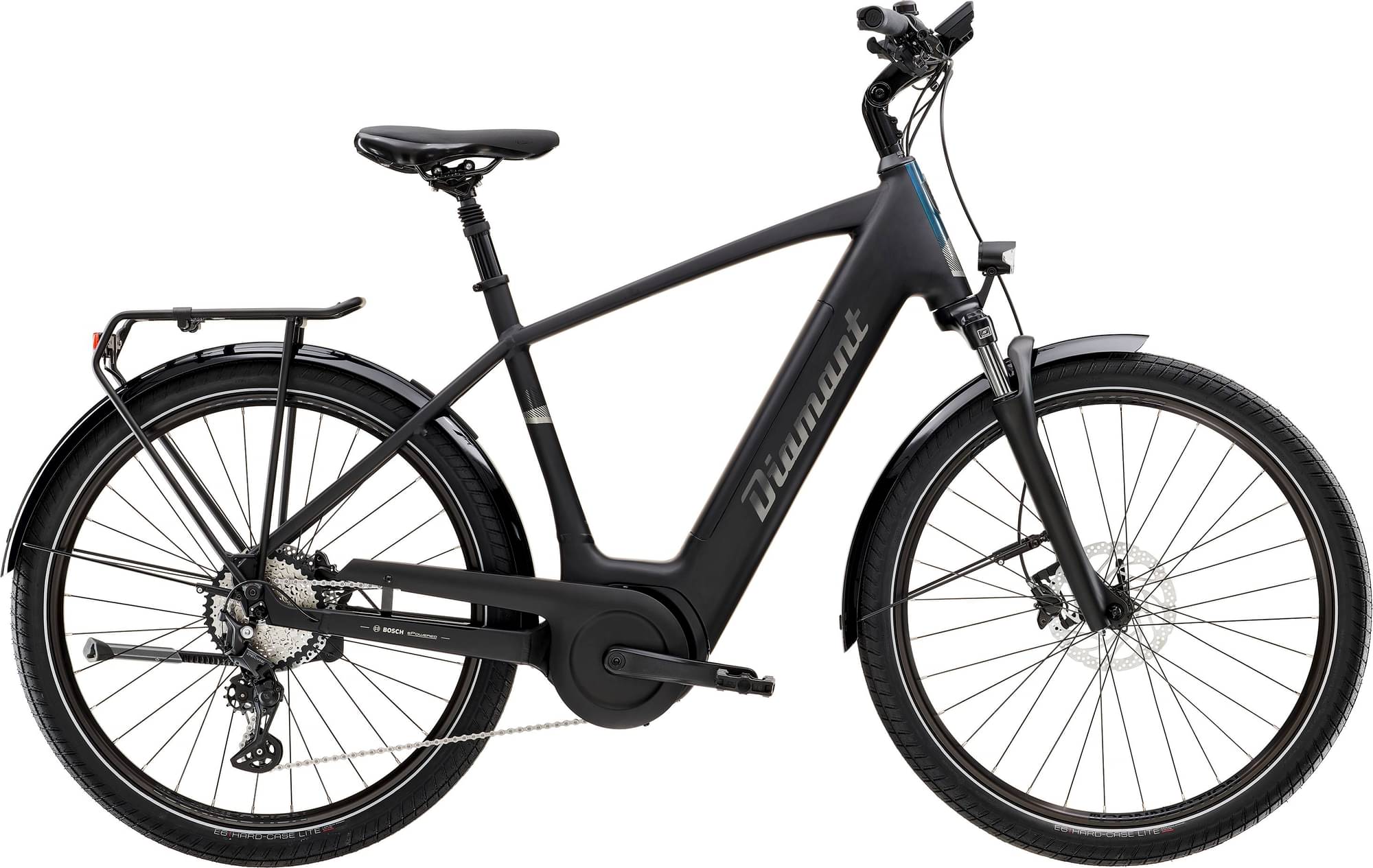

diamant Mandara Gen 3 2023
2023 E-bike
Estimate price |
4,187$
Weight | 28.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack 545 / 725, Smart System -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
164cm - 177cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, Removable Integrated Battery, internal cable routing, Motor Armor, post mount disc brake mount, 135 x 5 mm quick release axle
Suspension Fork
SR Suntour NVX30, coil spring, adjustable spring preload, 100mm QR axle, 60mm travel
Drivetrain
Rear Derailleur
Shimano Deore M5130, GS, Shadow Plus
Shift Levers
Shimano Deore M5130, 10-speed
Cassette
Shimano LG400, 11-43, 10-speed
Crank
ProWheel, aluminum, 175 mm crank arm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
non-slip pedals with reflectors
Wheels
Rims
Bontrager Connection, hollow chamber rim, 32 holes, 20 mm inner width, Presta valve
Brakes
Brakes
Shimano MT200 Shimano RT30 hydraulic disc brake, Centerlock disc mount, 180 mm
Cockpit
Stem
Bontrager, aluminum, 31.8mm clamp diameter, adjustable rise, Blendr compatible, 105mm length
Handlebar
Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 690mm width
Seat
Saddle
Selle Royal Nuvola
Seatpost
Aluminum, spring-loaded, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Performance Line Cruise, 250 W, 75 Nm, 25 km/h
Battery
Bosch Powerpack 545 / 725, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.731 mm | 1.758 mm | 1.782 mm |
| Front Center | 66 mm | 67 mm | 69 mm |
| Rake | 9.5 mm | 9.5 mm | 9.5 mm |
| Trail | 127 mm | 128 mm | 127 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 177 cm | 187 cm | 197 cm |
About this model
Mandara Gen 3 is a Diamant E Mandara model. There are 2 e-bikes that carry this model name. Take a sneak peek at all Diamant E Mandara e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Diamant Mandara Gen 3 2023 has a starting price of 3821$. Diamant Mandara 160 Gen 3 2023 on the other hand is the most expensive at 4140$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Diamant Mandara Gen 3 price was 3821$. Doing a quick comparison, we notice that Mandara Gen 3 price is 54.07% more expensive than the average cost of a Hybrid e-bike.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.81 kg (52.49 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Diamant Mandara Gen 3 it’s weighing 28.3 kg (62.39 lbs). At this weight, is much heavier than average. In short, the average Hybrid e-bike weight is 18.86% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Mandara Gen 3 components
Fork
The fork installed on this bike is the Suntour NVX model. The travel on this model is 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Diamant Mandara Gen 3 2023, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Mandara Gen 3 comes in 3 sizes, that range from 164 cm – 197 cm (5.38 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
