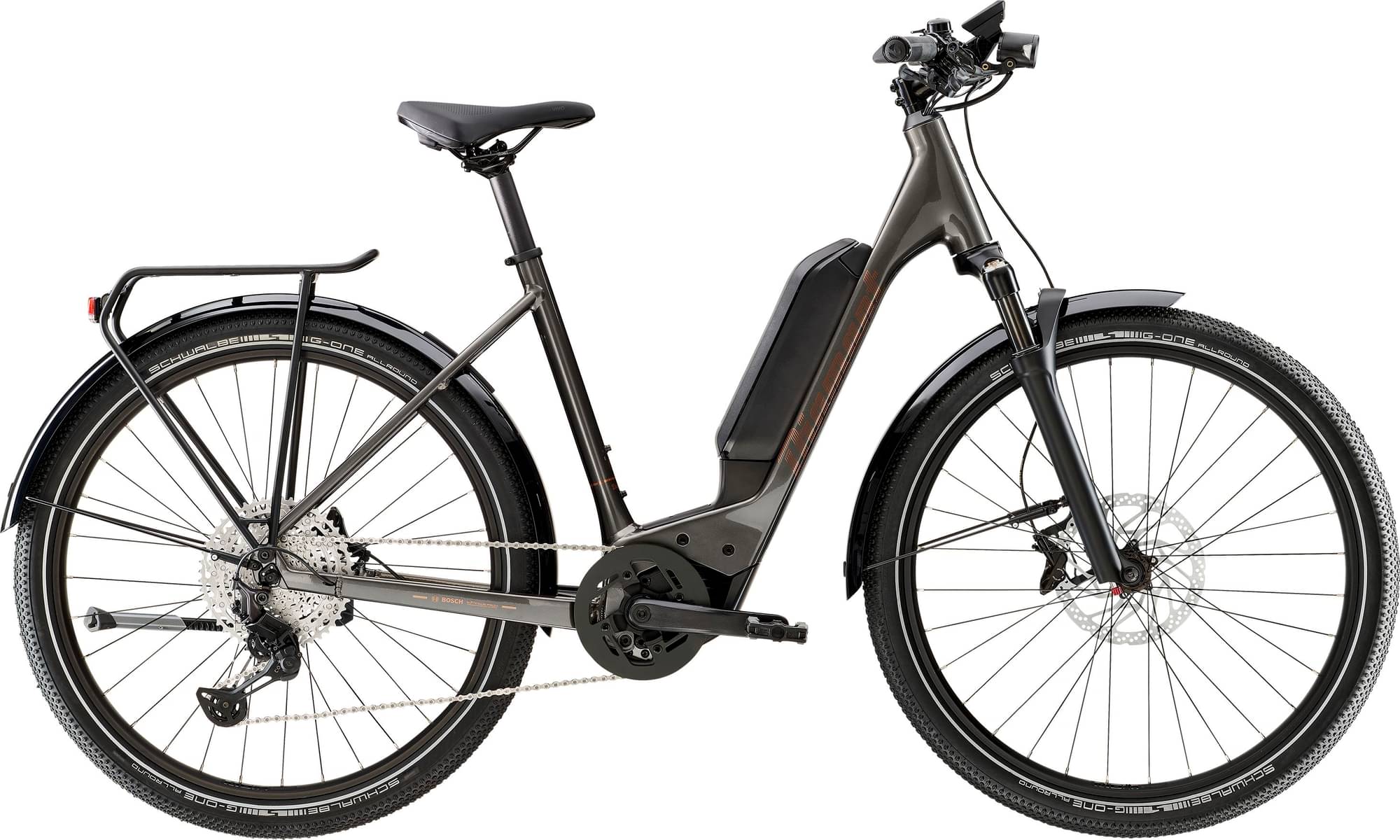

diamant Zing Deluxe Gen 2 2023
2023 E-bike
Estimate price |
4,652$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powerpack 545 / 725, Smart System -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame Diamant Zing MY23 Aluminum, RD, Suspension fork Compatible, Bosch BES 3, external downtube battery
Suspension Fork
SR Suntour Mobie 34, air suspension, external adjustment of rebound and compression, 60 mm travel,
Drivetrain
Rear Derailleur
Shimano XT M8130, SGS, Shadow Plus
Shift Levers
Shimano XT M8130, 11-speed
Cassette
Shimano LinkGlide, 11-50, 11 speed
Crank
ProWheel, aluminum, 170 mm crank arm length
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500, 9/10/11-speed
Pedals
non-slip pedals with reflectors
Wheels
Rims
Alex MD35, suitable for tubeless, 32 holes, 35 mm internal width, Presta valve
Brakes
Brakes
Shimano MT401 / MT420 hydraulic disc brake, 180 mm disc diameter Shimano RT30, Center Lock, 203 mm
Cockpit
Stem
Bontrager Comp, 31 8mm, Blendr compatible, 7 degree, 80mm length
Handlebar
Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 660mm width
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Aluminum Bontrager, 31.6mm, 12mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance Line CX, 25 km/h
Battery
Bosch Powerpack 545 / 725, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.581 mm | 1.617 mm | 1.638 mm |
| Bottom Bracket Height | 368 mm | 368 mm | 368 mm |
| Front Center | 64 mm | 65 mm | 66 mm |
| Rake | 8.9 mm | 8.6 mm | 8.3 mm |
| Trail | 138 mm | 135 mm | 132 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm |
Model Overview
Zing Deluxe Gen 2 is a Diamant E Zing model. Diamant launched 2 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Diamant Zing Gen 2 2023 is the cheapest e-bike model and costs 3609$. Diamant Zing Deluxe Gen 2 2023 is the most expensive one and costs 4246$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 4246$. Doing a quick comparison, we notice that Zing Deluxe Gen 2 price is 73.09% more expensive than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes have an average weight of 22.58 kg (49.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Diamant Zing Deluxe Gen 2 it’s weighing 22.9 kg (50.49 lbs). At this weight, is slightly heavier than average. In short, the average Crosscountry e-bike weight is 1.42% lower than this one.
Overview of components
Fork
The Zing Deluxe Gen 2 comes factory-installed with the Suntour MOBIE fork. This has a travel range of 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Diamant Zing Deluxe Gen 2 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamant Zing Deluxe Gen 2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Zing Deluxe Gen 2 comes in 3 sizes, that range from 154 cm – 187 cm (5.05 ft – 6.14 ft). In short, you can easily find one that suits you.
