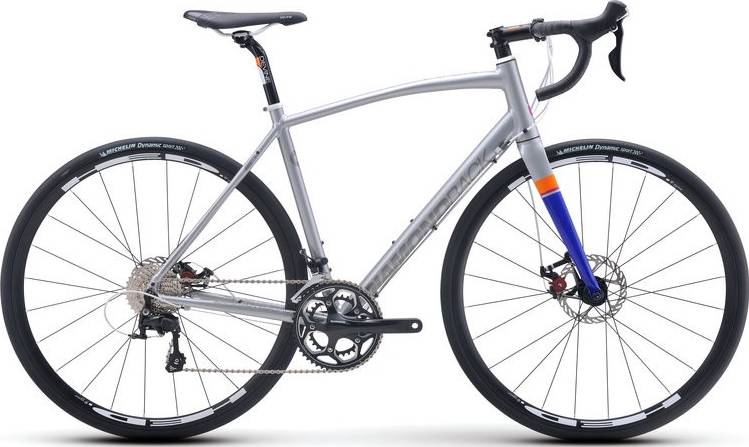

Diamondback Airen 1 2017
2017 Road
Estimate price |
1,199$
Weight | 9.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Devine Womens Specific Road Disc, Custom Fully Butted 7005 Series Alloy, Enhanced Performance Geometry, Formed Top Tube, w/ Integrated Headtube and Flat Mount Disc Brake Tab, 142x12mm Thru-axle Drop Outs
Suspension Fork
DBR Podium SPF Airformed Alloy, Bladed Legs, 12mm Thru-axle Drop Outs, 1.5" Alloy Taper Steerer Tube, w/ Flat Mount Disc Tab
Drivetrain
Rear Derailleur
Shimano 105 RD-5800, 11 Speed
Front Derailleur
Shimano 105 FD-5800, 31.8mm Band Clamp
Shift Levers
Shimano 105 ST-5800 Dual Control, 2x11 Speed
Cassette
Shimano 105 CS-5800 Cassette, 11 Speed, 11-32T
Crank
Shimano FC-RS500 Compact, 50/34T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC X11L, 11 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 12mm Thru-axle w/ CNC Disc Mount
Rear Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 142x12mm Thru-axle, w/ CNC Disc Mount, Cassette
Rims
HED Flanders C2+ Disc, 24h
Spokes
14g Stainless Steel
Tires
Michelin Dynamic Sport, 700x28c
Brakes
Brakes
TRP Spyre Mechanical Disc, w/ 160mm Front / 160mm Rear Rotors
Brake Levers
Shimano 105 ST-5800
Cockpit
Stem
HED Tour Stem, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Tour Flat Top Drop Bar, 31.8 Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Devine Performance Womens Road
Seatpost
HED Tour, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.52 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 580 mm | 586 mm | 583 mm | 593 mm | 598 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 68 mm | 65 mm | 59 mm | 59 mm | 57 mm |
| Stack | 531 mm | 542 mm | 565 mm | 589 mm | 608 mm |
| Reach | 366 mm | 373 mm | 372 mm | 374 mm | 379 mm |
| Top Tube Length | 503 mm | 518 mm | 528 mm | 543 mm | 553 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm | 500 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 130 mm | 150 mm | 175 mm | 195 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 993 mm | 990 mm | 1000 mm | 1006 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm |
| Standover Height | 719 mm | 737 mm | 760 mm | 780 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Airen 1 belongs to the Diamondback Airen model. 6 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Diamondback Airen Sport 2017 is the most affordable bike of this model and has a price of 599$. On the other hand, Diamondback Airen 5 Carbon 2017, is the most expensive and costs 2799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 1199$. In conclusion, this bike price is 95.66% smaller than the price of the average Endurance bike.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 9.7 kg (21.38 lbs), the Airen 1 model is much heavier than average. To sum up, it’s 18.29% heavier than the average weight of Endurance bikes.
Airen 1 components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Airen 1 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Airen 1 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
