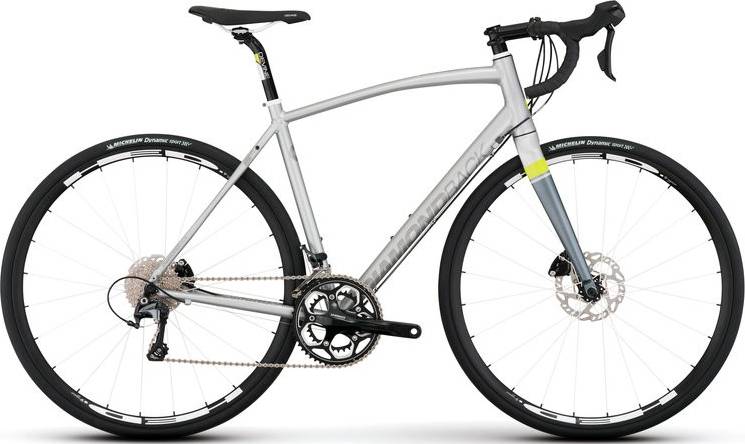

Diamondback Airen 2 2017
2017 Road
Estimate price |
1,799$
Weight | 9.62 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Devine Womens Specific Road Disc, Custom Fully Butted 7005 Series Alloy, Enhanced Performance Geometry, Formed Top Tube, w/ Integrated Headtube and Flat Mount Disc Brake Tab, 142x12mm Thru-axle Drop Outs
Suspension Fork
DBR AmmP Carbon Fork, 12mm Thru-axle Drop Outs, 1.5" Alloy Taper Steerer Tube, w/ Flat Mount Disc Tab
Drivetrain
Rear Derailleur
Shimano Ultegra RD-6800, 11 Speed
Front Derailleur
Shimano Ultegra FD-6800, 31.8mm Band Clamp
Shift Levers
Shimano ST-RS685, Dual Control 2x11 Speed
Cassette
Shimano 105 CS-5800 Cassette, 11 Speed, 11-32T
Crank
Shimano Ultegra FC-6800 Compact, 50/34T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC X11L, 11 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 12mm Thru-axle w/ Center Lock Disc Mount
Rear Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 142x12mm Thru-axle, w/ Center Lock Disc Mount, Cassette
Rims
HED Flanders C2+ Disc, 24h
Spokes
14g Stainless Steel
Tires
Michelin Dynamic Sport, 700x28c
Brakes
Brakes
Shimano BR-RS805 Flat Mount Hydraulic Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Shimano ST-RS685
Cockpit
Stem
HED Tour Stem, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Tour Flat Top Drop Bar, 31.8 Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Devine Performance Womens Road
Seatpost
HED Tour, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.52 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 580 mm | 586 mm | 583 mm | 593 mm | 598 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 68 mm | 65 mm | 59 mm | 59 mm | 57 mm |
| Stack | 531 mm | 542 mm | 565 mm | 589 mm | 608 mm |
| Reach | 366 mm | 373 mm | 372 mm | 374 mm | 379 mm |
| Top Tube Length | 503 mm | 518 mm | 528 mm | 543 mm | 553 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm | 500 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 130 mm | 150 mm | 175 mm | 195 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 993 mm | 990 mm | 1000 mm | 1006 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm |
| Standover Height | 719 mm | 737 mm | 760 mm | 780 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Airen 2 completes the Diamondback Airen model. Diamondback released 6 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Diamondback Airen Sport 2017 is the most affordable bike of this model and has a price of 599$. On the other hand, Diamondback Airen 5 Carbon 2017, is the most expensive and costs 2799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 1799$. Comparing this to the average Endurance bike price, we see that the price is 30.41% smaller.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 9.62 kg (21.21 lbs), the Airen 2 model is much heavier than average. In other words, this model is 17.32% heavier than the average Endurance bike.
Airen 2 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Airen 2 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
