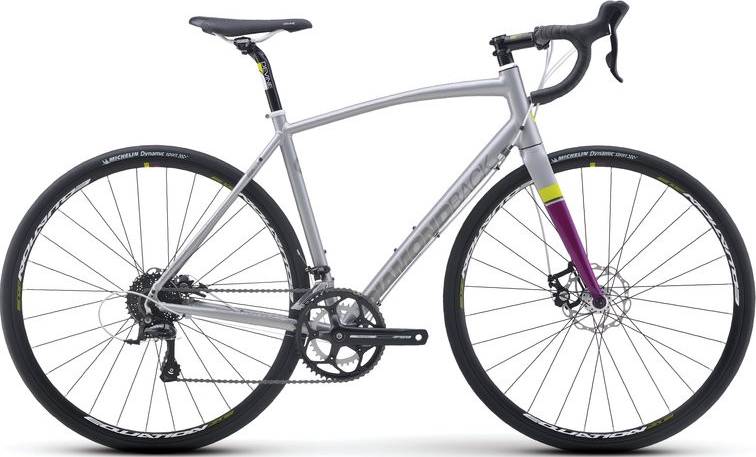

Diamondback Airen 2017
2017 Road
Estimate price |
949$
Weight | 10.37 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Devine Womens Specific Road Disc, Custom Fully Butted 7005 Series Alloy, Enhanced Performance Geometry (EPG), Formed Top Tube, w/ Integrated Headtube and Flat Mount Disc Brake Tab
Suspension Fork
DBR Podium SPF Airformed Alloy, Bladed Legs, 1.5" Alloy Taper Steerer Tube, w/ Flat Mount Disc Tab
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000, 9 Speed
Front Derailleur
Shimano Sora FD-3500, 31.8mm Band Clamp
Shift Levers
Shimano Sora ST-3500 Dual Control, 2x9 Speed
Cassette
Shimano HG200 Cassette, 9 Speed, 11-32T
Crank
Shimano Sora FC-3550 Compact, 50/34T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC Z99, 9 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
28h Alloy w/ CNC Disc Mount
Rear Hub
28h Alloy w/ CNC Disc Mount, Cassette
Rims
28h Equation SE, Doublewall
Spokes
14g Stainless Steel
Tires
Michelin Dynamic Sport, 700x28c
Brakes
Brakes
Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Shimano Sora ST-3500
Cockpit
Stem
HED Tour Stem, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Tour Flat Top Drop Bar, 31.8 Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Devine Performance Womens Road
Seatpost
HED Tour, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.52 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 580 mm | 586 mm | 583 mm | 593 mm | 598 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 68 mm | 65 mm | 59 mm | 59 mm | 57 mm |
| Stack | 531 mm | 542 mm | 565 mm | 589 mm | 608 mm |
| Reach | 366 mm | 373 mm | 372 mm | 374 mm | 379 mm |
| Top Tube Length | 503 mm | 518 mm | 528 mm | 543 mm | 553 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm | 500 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 130 mm | 150 mm | 175 mm | 195 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 987 mm | 993 mm | 990 mm | 1000 mm | 1006 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm |
| Standover Height | 719 mm | 737 mm | 760 mm | 780 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Airen belongs to the Diamondback Airen model. 6 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Airen bikes models from 2017, by clicking here.
Model range prices
Diamondback Airen Sport 2017 is the cheapest bike model and costs 599$. Diamondback Airen 5 Carbon 2017 is the most expensive one and costs 2799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Diamondback Airen price was 949$. Doing a quick comparison, we notice that Airen price is 147.21% lower than the average cost of an Endurance bike.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Airen weighs 10.37 kg (22.86 lbs) and is much heavier than the average. To sum up, it’s 26.46% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The Airen 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Airen comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
