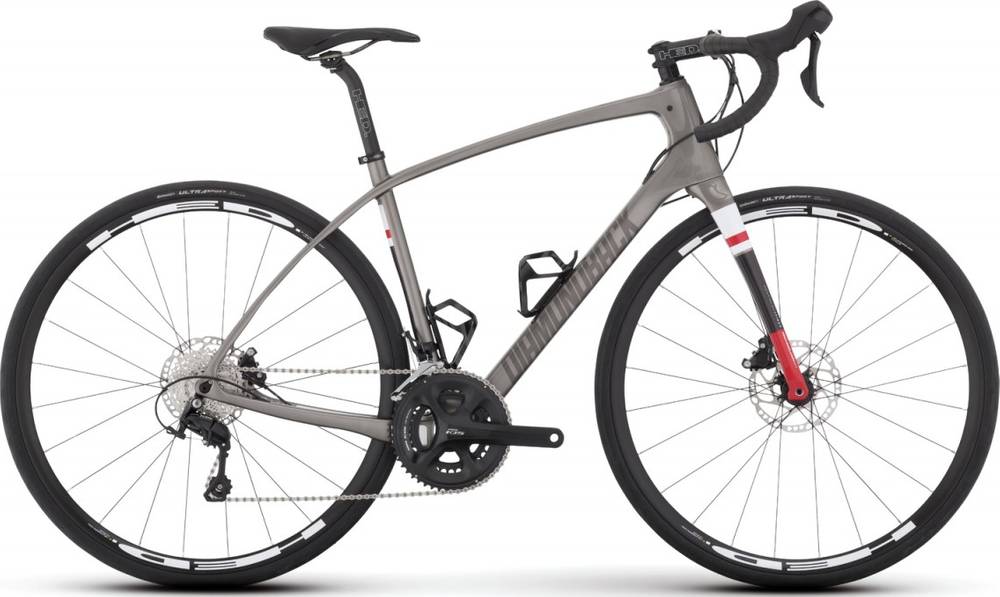

Diamondback Airen 4 Carbon 2017
2017 Road
Estimate price |
2,199$
Weight | 8.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Women's Specific Carbon Monocoque Endurance Road Frame, Internal Cable Routing, 142x12mm Carbon Drop Outs, w/Taper Headtube, Di2 Compatible
Suspension Fork
DB Road Performance, Full Monocoque Carbon "CFT", 12mm Thru-axle Drop Outs, Flat Mount Disc Tabs, 1.5" Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano 105 RD-5800, 11 Speed
Front Derailleur
Shimano 105 FD-5800, 31.8mm Band Clamp
Shift Levers
Shimano ST-RS505, Dual Control 2x11 Speed
Cassette
Shimano 105 CS-5800 Cassette, 11 Speed, 11-32T
Crank
Shimano 105 FC-5800 Compact, 50/34T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC X11EL, 11 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 12mm Thru-axle w/ Center Lock Disc Mount
Rear Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 142x12mm Thru-axle, w/ Center Lock Disc Mount, Cassette
Rims
HED Flanders C2+ Disc, 24h
Spokes
14g Stainless Steel
Tires
Continental Ultra Sport II, Folding, 700x28c
Brakes
Brakes
Shimano BR-RS505 Flat Mount Hydraulic Disc, w/ 160mm Front / 160mm Rear Rotors
Brake Levers
Shimano ST-RS505
Cockpit
Stem
HED Tour Stem, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Tour Flat Top Drop Bar, 31.8 Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
Prologo Kappa DEA2, w/ Cromoly Rails
Seatpost
HED Tour, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.49 mm | 1.53 mm | 1.58 mm | 1.61 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 266 mm |
| Front Center | 583 mm | 581 mm | 583 mm | 594 mm | 598 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 64 mm | 65 mm | 59 mm | 59 mm | 57 mm |
| Stack | 518 mm | 545 mm | 568 mm | 592 mm | 610 mm |
| Reach | 369 mm | 367 mm | 371 mm | 374 mm | 378 mm |
| Top Tube Length | 503 mm | 513 mm | 528 mm | 543 mm | 558 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm | 500 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 130 mm | 150 mm | 175 mm | 195 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 990 mm | 988 mm | 990 mm | 1001 mm | 1006 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 70 mm |
| Standover Height | 701 mm | 723 mm | 745 mm | 768 mm | 791 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Airen 4 Carbon belongs to the Diamondback Airen model. 6 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Airen Sport 2017 has a starting price of 599$. Diamondback Airen 5 Carbon 2017 on the other hand is the most expensive at 2799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Diamondback released this model in 2017, its price was 2199$. Comparing this to the average Endurance bike price, we see that the price is 6.68% lower.
Average weight for Endurance bikes
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.77 kg (19.33 lbs), the Airen 4 Carbon model is a bit heavier than average. In other words, this model is 6.95% heavier than the average Endurance bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Airen 4 Carbon 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Airen 4 Carbon comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
