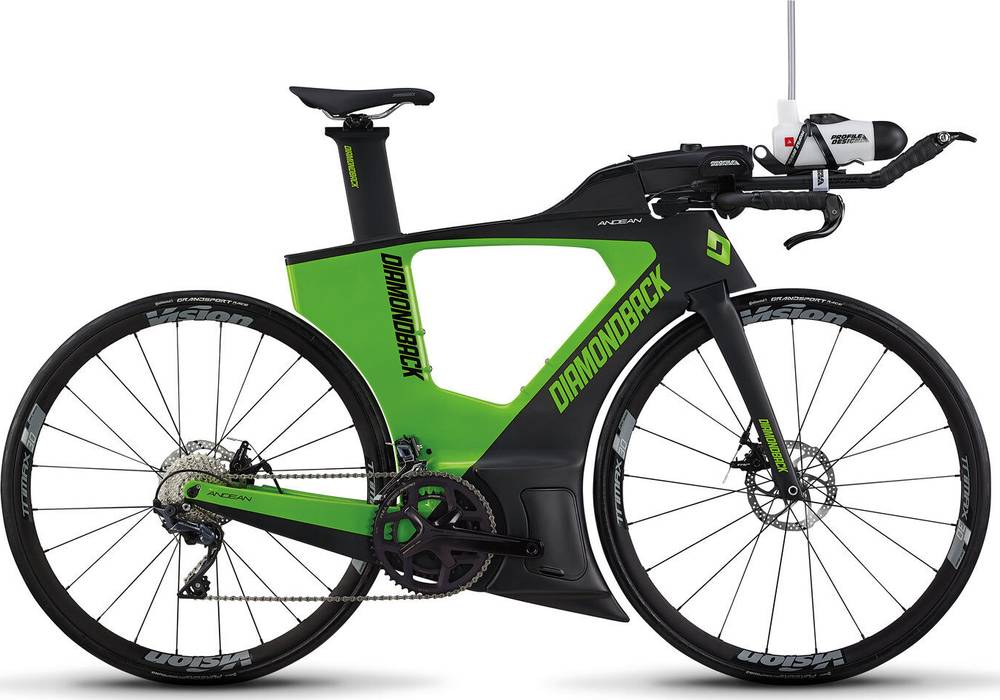

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Andean Aero Core Triathlon Frameset, Unidirectional Carbon, 1" Headtube, Press-Fit 30 BB, Di2 ready Internal Cable Routing, Integrated Storage System
Suspension Fork
Andean Aero Triathlon Fork, Unidirectional Carbon,1" steer, Continuous Fiber Technology (CFT)
Drivetrain
Rear Derailleur
Shimano Ultegra RD-R8000, 11 Speed
Front Derailleur
Shimano Ultegra FD-R8000, Braze-on
Shift Levers
Shimano Dura-Ace SL-BSR1 Bar End, 2x11 Speed
Cassette
Shimano CS-R7000, 11-Speed, 11-32T
Crank
FSA Gossamer Pro ABS BB386 EVO, 52/36T
Bottom Bracket
FSA PF30
Chain
KMC X11 EL, 11-Speed, Light Weight Chain
Wheels
Front Hub
Vision TriMax 6-bolt Disc, 21 Hole, 12mm Thru Axle
Rear Hub
Vision TriMax 6-bolt Disc, 24 Hole, 12mm Thru Axle
Rims
Vision TriMax 30 disc, Aluminum Alloy Tubeless Ready Clincher
Spokes
Aero Bladed Stainless
Tires
Continental Grand Sport Race, 700x25c
Brakes
Brakes
TRP Spyre Flat Mount Mechanical Disc,160mm TRP-29 Rotors
Brake Levers
Tektro TL 720 TT, Aluminum Alloy w/ Reach Adjuster
Cockpit
Stem
Diamondback Alloy TT, w/ Full Custom Internal Cable Routing System
Handlebar
Profile Design Wing/10a, 42cm, w/ Profile Design Sonic Ergo 35a Alloy Clip-On
Headset
FSA orbit IS-2A, Integrated 1", Sealed Cartridge Bearing
Seat
Saddle
Diamondback Triathlon, Cutout Relief Zone, Chromoly Rails
Seatpost
Diamondback TT Aero Carbon, Ritchey WCS Seat Rail Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.3 mm | 1.31 mm | 1.32 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 581 mm | 592 mm | 615 mm | 637 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 59 mm | 59 mm | 59 mm |
| Stack | 486 mm | 514 mm | 539 mm | 564 mm |
| Reach | 381 mm | 396 mm | 411 mm | 426 mm |
| Top Tube Length | 467 mm | 487 mm | 507 mm | 526 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 498 mm | 526 mm | 551 mm | 577 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 81 mm | 106 mm | 132 mm | 158 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 975 mm | 986 mm | 1009 mm | 1032 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 739 mm | 770 mm | 791 mm | 818 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Andean 1 belongs to the Diamondback Andean model. Diamondback launched 15 bikes of this model so far. Take a sneak peek at all Diamondback Andean bikes models from 2021, by clicking here.
Model range prices
Diamondback Andean 1 2021 is the most affordable bike of this model and has a price of 4500$. On the other hand, Diamondback Andean 3 2021, is the most expensive and costs 12000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 4500$. If we compare this with the average Triathlon bike cost we notice that the price is 7.73% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Andean 1 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Andean 1 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
