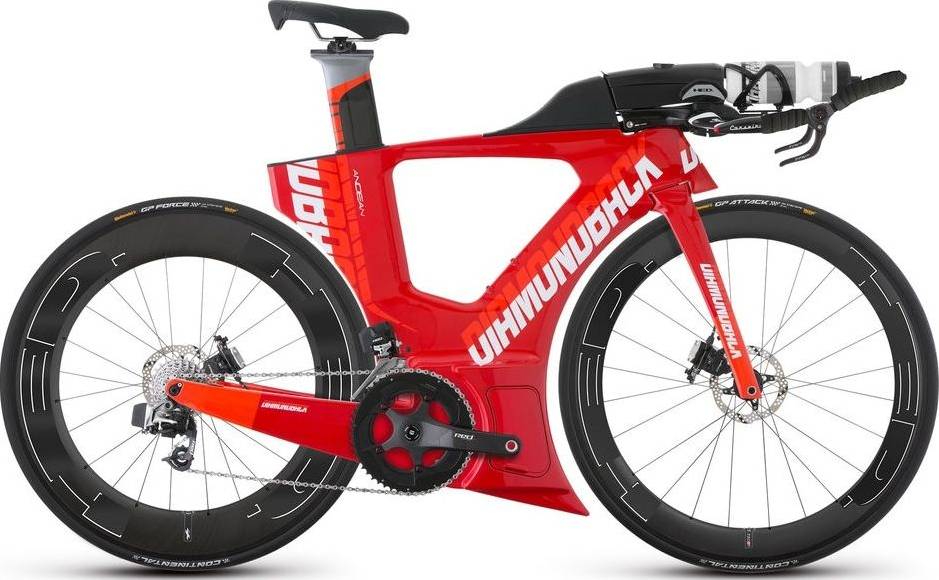

Diamondback Andean 3 – Pre-built 2018
2018 Road
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Andean Aero Core Triathlon Frameset, Unidirectional Carbon, 1" Headtube, Press-Fit 30 BB, Di2 Compatible Internal Cable Routing with integrated storage system
Suspension Fork
Andean Aero Triathlon Fork, Unidirectional Carbon,1" steer, Continuous Fiber Technology (CFT)
Drivetrain
Rear Derailleur
SRAM Red eTap, 11 speed
Front Derailleur
SRAM Red eTap, Braze-on
Shift Levers
SRAM eTap Blip base bar and Clics aero bar end buttons
Cassette
SRAM Red XP-1190, 11-28
Crank
SRAM Red BB30, 53/39T
Bottom Bracket
SRAM PressFit 30
Chain
SRAM Red 11-speed
Wheels
Front Hub
HED Sonic Centerlock Disc, 24 hole
Rear Hub
HED 545 Centerlock Disc, 24 hole
Rims
HED Jet 6 Plus Carbon Front / HED Jet 9 Plus Carbon Rear
Spokes
HED Bladed Stainless Steel
Tires
Continental Grandprix 4000 S II. 700x23c
Brakes
Brakes
TRP HY/RD Flat Mount cable pull hydraulic with 140mm TRP-25 Centerlock 2-piece rotors
Brake Levers
TRP RL 979 TT/Tri levers, carbon blade with cable and reach adjusters
Cockpit
Stem
DB Carbon TT w/ Full custom Internal cable routing system
Handlebar
HED Corsair TT, 42cm Flat, 31.8mm Bar Bore, w/ Carbon Lazy S Bend
Grips
Diamondback EVA with PU coating
Headset
FSA orbit IS-2A integrated 1"
Seat
Saddle
ISM PS 1.0, CrN/T Rails with Trihook nose
Seatpost
DB TT Aero Carbon w/ Ritchey Seat Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.3 mm | 1.31 mm | 1.32 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 581 mm | 592 mm | 615 mm | 637 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 59 mm | 59 mm | 59 mm |
| Stack | 486 mm | 514 mm | 539 mm | 564 mm |
| Reach | 381 mm | 396 mm | 411 mm | 426 mm |
| Top Tube Length | 467 mm | 487 mm | 507 mm | 526 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 498 mm | 526 mm | 551 mm | 577 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 81 mm | 106 mm | 132 mm | 158 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 975 mm | 986 mm | 1009 mm | 1032 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
Andean 3 – Pre-built completes the Diamondback Andean model. Diamondback launched 15 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Andean 1 – Pre-built 2018 has a starting price of 3999$. Diamondback Andean 3 – Pre-built 2018 on the other hand is the most expensive at 6999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 6999$. In conclusion, this bike price is 67.56% higher than the price of the average Triathlon bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Andean 3 – Pre-built components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Andean 3 – Pre-built model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Andean 3 – Pre-built has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
