Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 100mm -
Fork SunTour XCM
-
Groupset Altus, Alivio -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Seat Tube Routed for Internal Dropper Post, Aggressive Geometry, Replaceable Hanger
Suspension Fork
SR Suntour XCM 120mm Travel, 30mm Stanchions, w/ Preload Adjust
Rear Shock
Kindshock, Coil Shock, 184x44mm
Drivetrain
Rear Derailleur
Shimano Altus M370, 9 Speed
Front Derailleur
Shimano Alivio M4020 Side Swing,
Shift Levers
Shimano Altus SL-M2010, 2x9 Speed
Cassette
Shimano HG-31, 9 Speed, 11-32T
Crank
Shimano Alloy, 36/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z99, 9 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
Formula Hubs, 32h Alloy w/ CNC Disc Mount
Rear Hub
Formula Hubs, 32h Alloy Cassette w/ CNC Disc mount
Rims
DDM-2, 32h, 27.5 Doublewall
Spokes
14g Stainless Steel
Tires
VEE Rubber - Trax 27.5x2.35
Brakes
Brakes
Tektro Aries Mechanical Disc, w/ 180mm Front and 160mm Rear Rotors
Brake Levers
Tektro 2 Finger Alloy Linear w/ Reach Adjust
Cockpit
Stem
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar
Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
New DB "Flanged" 135mm Silcone
Headset
Ahead 1 1/8" Zero Stack
Seat
Saddle
DB Sync'r Saddle
Seatpost
Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Front Center | 660 mm | 695 mm | 726 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 556 mm | 556 mm | 565 mm |
| Reach | 370 mm | 405 mm | 432 mm |
| Top Tube Length | 547 mm | 582 mm | 612 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1092 mm | 1127 mm | 1158 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 752 mm | 768 mm | 772 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

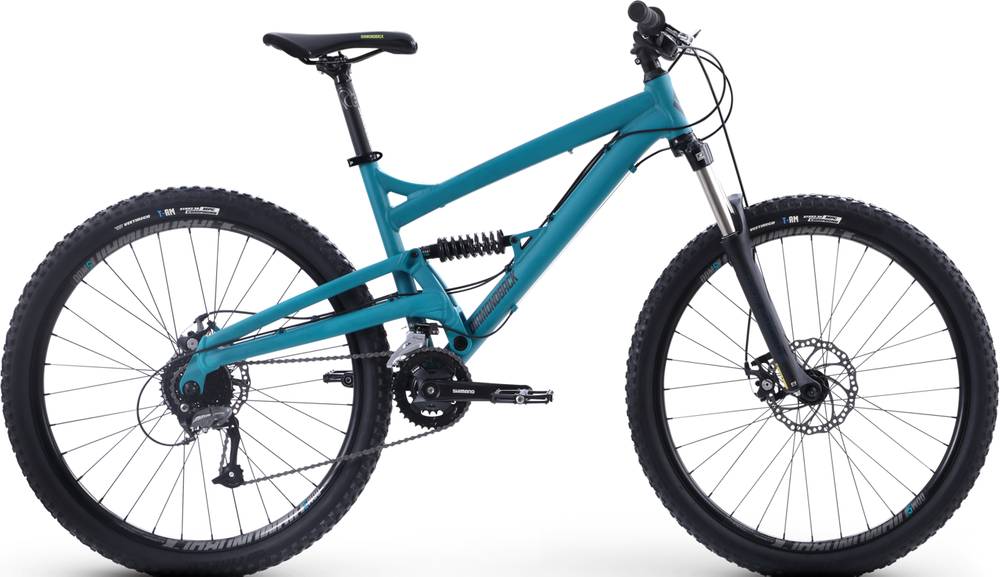

Atroz 1 is a Diamondback Atroz model. Diamondback released 22 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Diamondback Atroz 1 2020 is the cheapest bike model and costs 1000$. Diamondback Atroz 3 2020 is the most expensive one and costs 1650$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 1000$. Comparing the average cost of a Crosscountry bike to this one, you will see that Atroz 1 price is 90.5% smaller.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Atroz 1 components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Diamondback Atroz 1 bike has the Kindshock model installed, and has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Diamondback Atroz 1 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Atroz 1 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Atroz 1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
