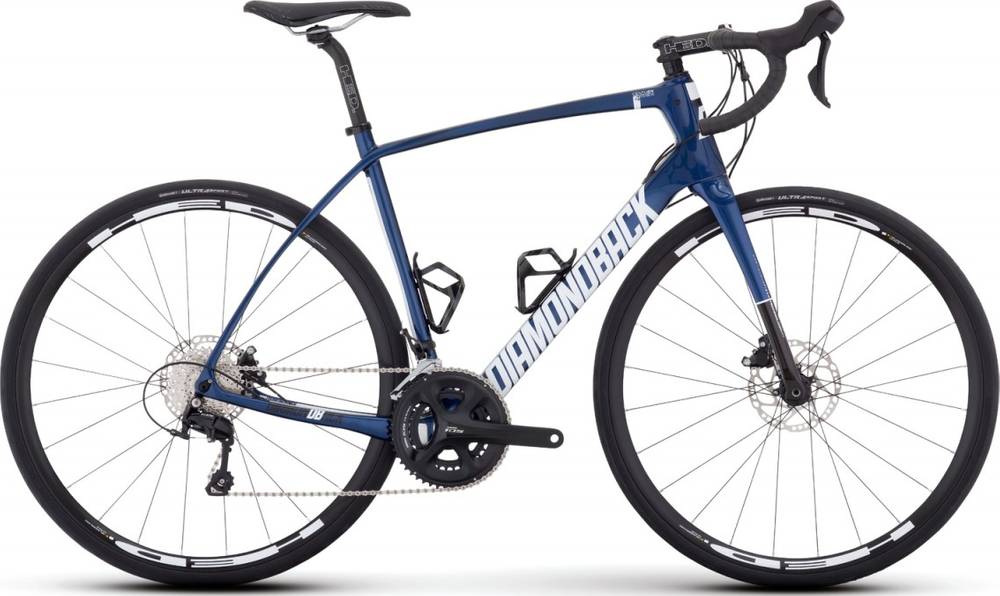

Diamondback Century 4 Carbon 2017
2017 Road
Estimate price |
2,199$
Weight | 8.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Monocoque Endurance Road Frame, Internal Cable Routing, 142x12mm Carbon Drop Outs, w/ Taper Headtube, Di2 Compatible
Suspension Fork
DB Road Performance, Full Monocoque Carbon "CFT", 12mm Thru-axle Drop Outs, Flat Mount Disc Tabs, 1.5" Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano 105 RD-5800, 11 Speed
Front Derailleur
Shimano 105 FD-5800, 31.8mm Band Clamp
Shift Levers
Shimano ST-RS505, Dual Control 2x11 Speed
Cassette
Shimano 105 CS-5800 Cassette, 11 Speed, 11-32T
Crank
Shimano 105 FC-5800 Compact, 50/34T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC X11EL, 11 Speed
Pedals
Wellgo Alloy Road
Wheels
Front Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 12mm Thru-axle w/ Center Lock Disc Mount
Rear Hub
24h Alloy, Sealed Cartridge, HighLow Flange, 142x12mm Thru-axle, w/ Center Lock Disc Mount, Cassette
Rims
HED Flanders C2+ Disc, 24h
Spokes
14g Stainless Steel
Tires
Continental Ultra Sport II, Folding, 700x28c
Brakes
Brakes
Shimano BR-RS505 Flat Mount Hydraulic Disc, w/ 160mm Front / 160mm Rear Rotors
Brake Levers
Shimano ST-RS505
Cockpit
Stem
HED Tour Stem, +/-7° Rise, 31.8mm Bar Bore
Handlebar
HED Tour Flat Top Drop Bar, 31.8 Bar Bore
Grips
EVA Cork w/ Gel
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
Prologo Scratch Pro, w/ Cromoly Rails
Seatpost
HED Tour, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.49 mm | 1.51 mm | 1.57 mm | 1.57 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm |
| Front Center | 564 mm | 577 mm | 582 mm | 592 mm | 607 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 72 mm | 57 mm | 56 mm | 54 mm | 54 mm |
| Stack | 534 mm | 555 mm | 568 mm | 597 mm | 614 mm |
| Reach | 374 mm | 373 mm | 377 mm | 380 mm | 390 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.25 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.75 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 135 mm | 150 mm | 180 mm | 200 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 970 mm | 983 mm | 989 mm | 999 mm | 1015 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 738 mm | 758 mm | 780 mm | 804 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Century 4 Carbon is a Diamondback Century model. Diamondback released 24 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Century Sport 2017 is the most economical model, with a starting price of 599$. Diamondback Century 4 Carbon 2017 on the other hand costs 2199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 2199$. If we compare this with the average Endurance bike cost we notice that the price is 6.68% smaller.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Century 4 Carbon has a weight of 8.26 kg (18.21 lbs). In other words, this model is 0.73% heavier than the average Endurance bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Century 4 Carbon has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Century 4 Carbon bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Century 4 Carbon has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Century 4 Carbon comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
