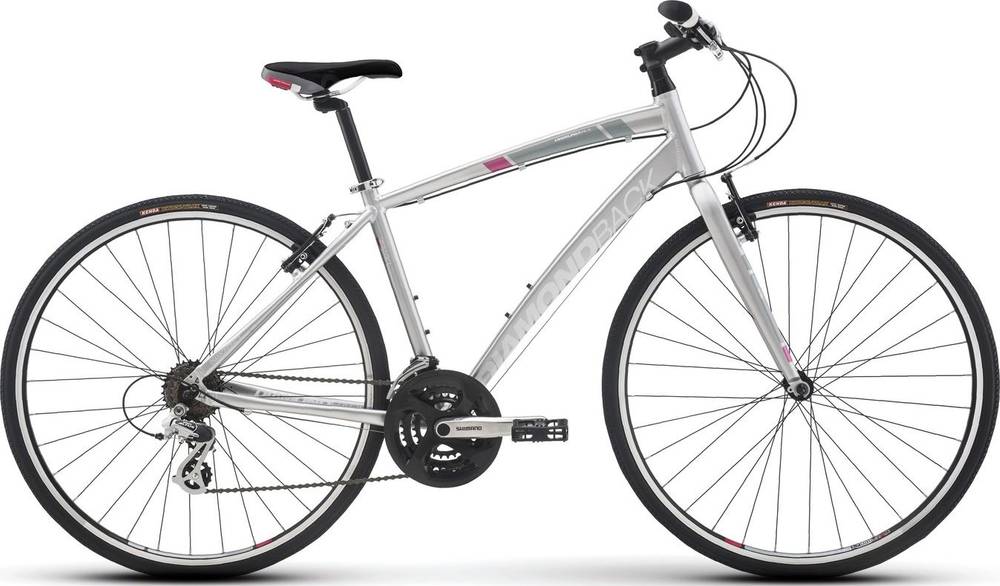

Diamondback Clarity 1 2016
2016 Urban
Estimate price |
449$
Weight | 11.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Clarity 6061-T6 Devine Geometry, Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, VCS compliant stays, replaceable derailleur hanger
Suspension Fork
Clarity integrated Ferous Aero Hi-Ten steel straight blade
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TX51
Shift Levers
Shimano EF-51 Easyfire 7spd
Cassette
Shimano 7spd (14-28t) Freewheel
Crank
Shimano FCM131 w/ chainguard, 28/38/48t
Bottom Bracket
Sealed Cartridge
Chain
KMC-Z51
Pedals
DB Toe Clip Compatible Platform
Wheels
Front Hub
32h Alloy QR
Rear Hub
32h Alloy QR Cassette
Rims
32h Equation R23 Doublewall
Spokes
Black 14g Stainless Steel
Tires
Kenda Kwick Trax 700x32c
Brakes
Brakes
Alloy Linear
Brake Levers
Shimano EF-51
Cockpit
Stem
DB 3D Forged 7° 31.8mm
Handlebar
DB 31.8mm low rise Alloy
Grips
Diamondback Dual Density Comfort Grip
Headset
Integrated "Cane Creek" Size Drop-in ACB 1 1/8"
Seat
Saddle
DB Performance Hybrid w/ Gel
Seatpost
Alloy Micro Adjust 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Top Tube Length | 548 mm | 558 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 120 mm | 150 mm | 175 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1039 mm | 1049 mm | 1076 mm | 1096 mm |
| Standover Height | 629 mm | 667 mm | 725 mm | 782 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Clarity 1 belongs to the Diamondback Clarity model. Diamondback released 11 bikes variations of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
Diamondback Clarity 20 2016 is the most economical model, with a starting price of 219$. Diamondback Clarity 2 2016 on the other hand costs 499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2016 for 449$. Comparing this to the average Fitness bike price, we see that the price is 46.1% smaller.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Clarity 1 has a weight of 11.82 kg (26.06 lbs). To sum up, it’s 5.16% heavier than the average weight of Fitness bikes.
Clarity 1 components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Diamondback Clarity 1 2016, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Clarity 1 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
