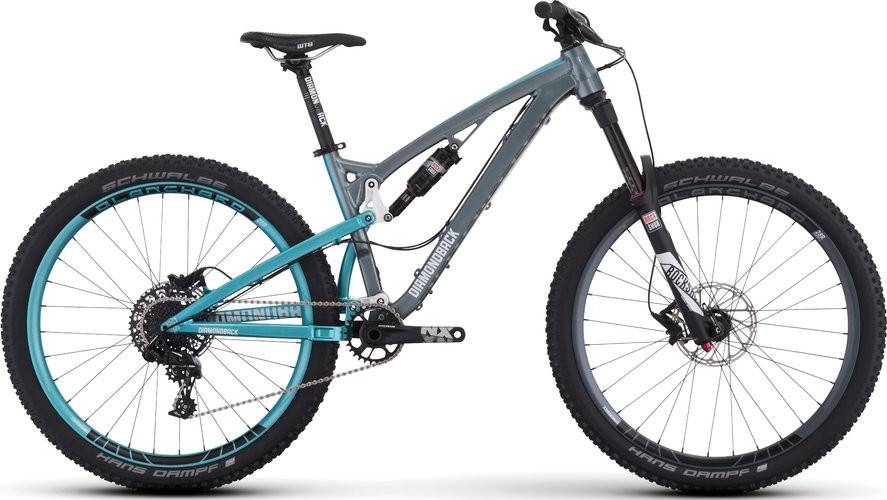

Diamondback Clutch 1 2017
2017 Mountain
Estimate price |
1,799$
Weight | 14.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Clutch 27.5, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
Rockshox Yari RC, 150mm Travel, w/ Rebound and Compression Damping, 35mm Stanction, 1.5" Alloy Taper Steerer, w/ 110x15mm Boost Thru-axle
Rear Shock
Rockshox Monarch R DebonAir, 200x57mm
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM NX 1x, w/ X-Sync 30T Chain Ring
Bottom Bracket
SRAM GXP
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy,110x15mm BoostThru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Schwalbe Hans Dampf, Performance, 27.5x2.35"
Brakes
Brakes
SRAM Level Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Cockpit
Stem
DB35 Alloy, 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge
Seat
Saddle
WTB Deva Comp
Seatpost
DB Alloy Micro Adjust, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.44 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 682 mm | 708 mm | 735 mm | 761 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 588 mm | 588 mm | 597 mm | 606 mm |
| Reach | 383 mm | 409 mm | 432 mm | 454 mm |
| Top Tube Length | 559.5 mm | 588 mm | 613 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 369 mm | 394 mm | 432 mm | 483 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1110 mm | 1136 mm | 1163 mm | 1189 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 742 mm | 742 mm | 743 mm | 746 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Clutch 1 is a Diamondback Clutch model. 5 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Clutch 1 2017 has a starting price of 1799$. Diamondback Clutch 2 2017 on the other hand is the most expensive at 3499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2017 for 1799$. Comparing the average cost of a Trail bike to this one, you will see that Clutch 1 price is 53.53% lower.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.38 kg (31.7 lbs), the Clutch 1 model is considerably heavier than average. To sum up, it’s 10.79% heavier than the average weight of Trail bikes.
Clutch 1 components
Fork
The Clutch 1 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the Rockshox Monarch R DebonAir model, with a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Clutch 1 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Clutch 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Diamondback Clutch 1 bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
