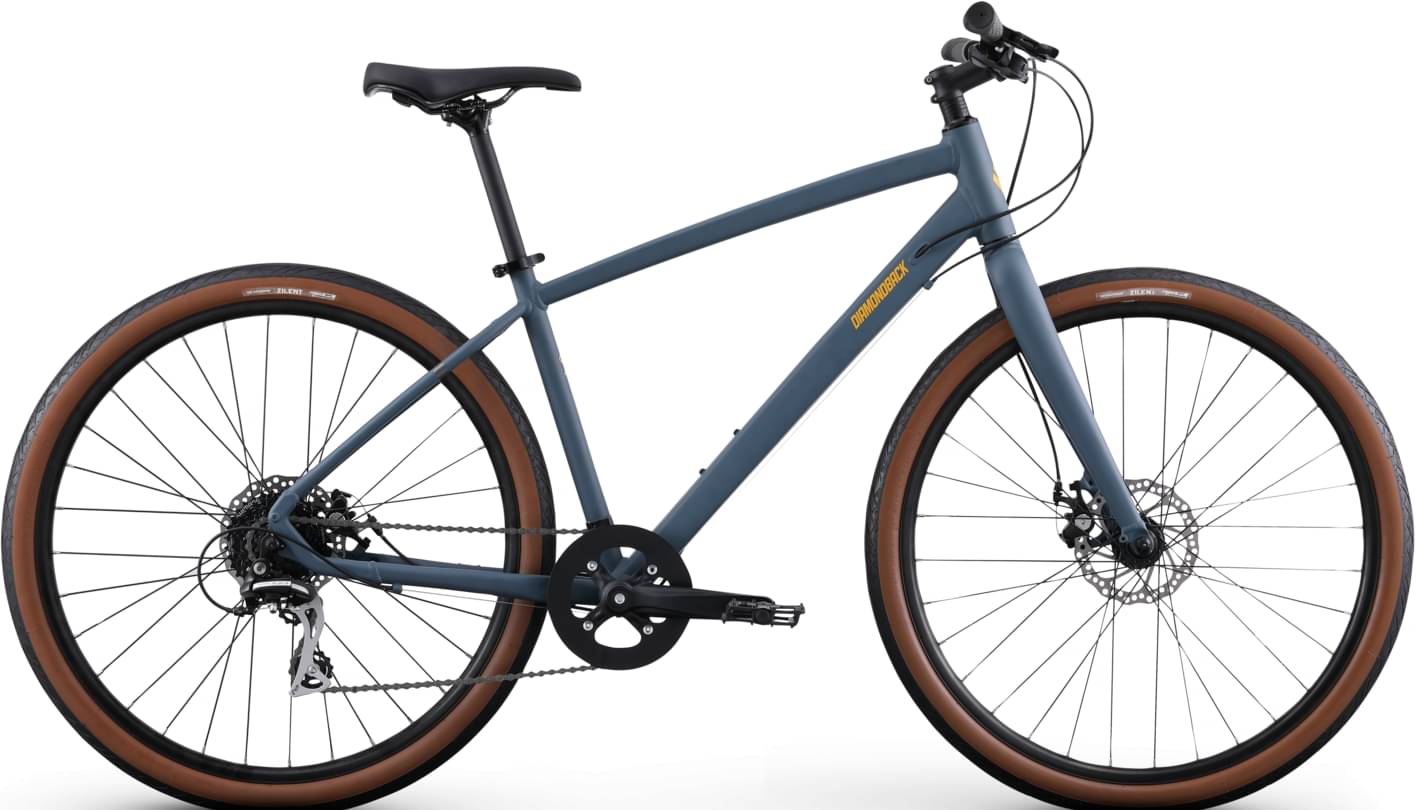

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Acera, Shimano -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum 27.5 City Sport Geometry
Suspension Fork
Aluminum Blades, with Post Mount Disc
Drivetrain
Rear Derailleur
Shimano Acera M360
Shift Levers
Shimano M315 8-speed Trigger Shifter, Right Only
Cassette
Shimano 8 Speed, 12-32 Cassette
Crank
Aluminum Forged 3PC 104 BCD, 40t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC 8 Speed
Pedals
Aluminum Body, Chromoly Spindle
Wheels
Front Hub
Aluminum Quick Release Disc, 32 Hole
Rear Hub
Aluminum Quick Release Disc, 32 Hole
Rims
Aluminum DDM-5, 32h, 27.5", 28mm Wide Double Wall
Spokes
14g Stainless Steel with Brass Nipples
Tires
Vee Tire Co. Zilent 650x47c, Wire Bead, 30 TPI
Brakes
Brakes
Tektro MD-M300 Mechanical Disc with 160mm Rotors
Brake Levers
Tektro 2 Finger Aluminum
Cockpit
Stem
Forged Aluminum Alloy 31.8mm Bar Clamp
Handlebar
Aluminum 31.8, 15mm Rise, 680mm Wide
Grips
ERGO Dual Density
Headset
1 1/8" Internal Cartridge Bearing
Seat
Saddle
Urban Warrior Saddle
Seatpost
Aluminum Micro Adjust, 27.2 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.37 mm | 1.4 mm | 1.43 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 627 mm | 658 mm | 674 mm | 691 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 69 mm | 69 mm | 69 mm |
| Stack | 547 mm | 570 mm | 594 mm | 617 mm |
| Reach | 393 mm | 416 mm | 424 mm | 432 mm |
| Top Tube Length | 562 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1040 mm | 1071 mm | 1087 mm | 1104 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 691 mm | 734 mm | 775 mm | 815 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Division 1 belongs to the Diamondback Division model. Diamondback released 10 bikes variations of this model so far. You can easily view all of the Diamondback Division bikes models from 2022, here.
Model range prices
Diamondback Division 24 2022 is the cheapest bike model and costs 525$. Diamondback Division 2 2022 is the most expensive one and costs 925$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 835$. Doing a quick comparison, we notice that Division 1 price is 9.58% higher than the average cost of a Commuter bike.
Division 1 components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the Division 1 bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
