Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Acera, Shimano -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum, 27.5 City Sport Geometry
Suspension Fork
Aluminum Blades, with Post Mount Disc
Drivetrain
Rear Derailleur
Shimano Acera M360
Front Derailleur
N/A
Shift Levers
Shimano M315 8-speed Trigger Shifter, Right Only
Cassette
Shimano 8 Speed, 12-32 Cassette
Crank
Aluminum Forged 3PC 104 BCD, 40t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC 8 Speed
Pedals
Aluminum Body, Chromoly Spindle
Wheels
Front Hub
Aluminum Quick Release Disc, 32 Hole
Rear Hub
Aluminum Quick Release Disc, 32 Hole
Rims
Aluminum DDM-5, 32h, 27.5", 28mm Wide Double Wall
Spokes
14g Stainless Steel with Brass Nipples
Tires
Vee Tire Co. Zilent 650x47c, Wire Bead, 30 TPI
Brakes
Brakes
Tektro MD-M300 Mechanical Disc with 160mm Rotors
Brake Levers
Tektro 2 Finger Aluminum
Cockpit
Stem
Forged Aluminum Alloy 31.8mm Bar Clamp
Handlebar
Aluminum 31.8, 15mm Rise, 680mm Wide
Grips
ERGO Dual Density
Headset
1 1/8" Internal Cartridge Bearing
Seat
Saddle
Urban Warrior Saddle
Seatpost
Aluminum Micro Adjust, 27.2 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.37 mm | 1.4 mm | 1.43 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 627 mm | 658 mm | 674 mm | 691 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 69 mm | 69 mm | 69 mm |
| Stack | 547 mm | 570 mm | 594 mm | 617 mm |
| Reach | 393 mm | 416 mm | 424 mm | 432 mm |
| Top Tube Length | 562 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1040 mm | 1071 mm | 1087 mm | 1104 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 691 mm | 734 mm | 775 mm | 815 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

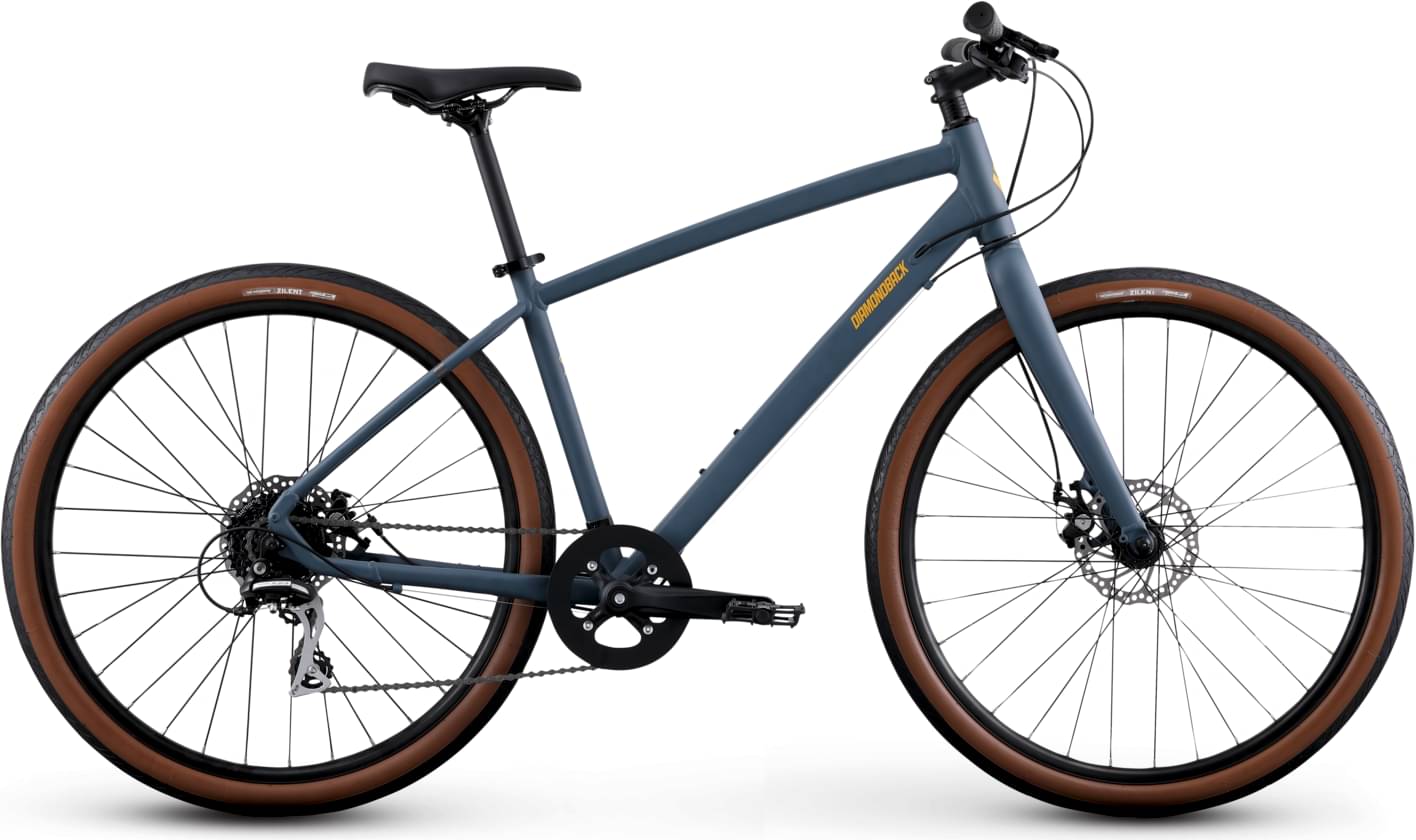

About this model
Division 1 is a Diamondback Division model. 10 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Division bikes models from 2023, by clicking here.
Model range prices
Diamondback Division 24 2023 is the cheapest bike model and costs 525$. Diamondback Division 2 2023 is the most expensive one and costs 925$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Diamondback released this model in 2023, its price was 835$. In conclusion, this bike price is 9.58% higher than the price of the average Commuter bike.
Overview of components
Fork material
Division 1 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Division 1 bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Division 1 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
