Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Bluto RL
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
El Oso Butted 6061-T6 Aluminum w/ Formed Top / Down Tube, 1.5" Tapered Machined Headtube, 197mm Thru Axle, Fits up to 26x5" tire
Suspension Fork
RockShox Bluto 100mm Solo Air, 32mm Stanchion, Rebound, Lockout, 150mm Thru, 1.5 Taper
Drivetrain
Rear Derailleur
Shimano SLX M615 Shadow Plus
Front Derailleur
Shimano Deore M618, High Direct Mount
Shift Levers
Shimano SLX M670 10spd
Cassette
Shimano HG50 10spd (11-36t)
Crank
Raceface Ride, 36/26T
Bottom Bracket
Raceface Outboard Bearing
Chain
KMC X10 EPT Anti-Rust
Pedals
DB Platform CNC, w/replaceable pins, sealed cartidge bearing
Wheels
Front Hub
Alloy 32h Sealed Cartridge Bearing 150mmx15mm Thru
Rear Hub
Alloy 32h Cassette, Sealed Cartridge Bearing 197mmx12mm Thru
Rims
DB 95Wide w/55mm Cutout, Singlewall 32h
Spokes
14g Stainless Steel
Tires
Kenda Juggernaut 26x4.5"
Brakes
Brakes
Shimano M447 Hydraulic Disc - 180/180mm Rotor
Brake Levers
Shimano M506 Hydraulic Disc
Cockpit
Stem
DB 3D Forged, +/-7° Rise 31.8
Handlebar
DB Pro Bar750mm width, 15mm rise, 31.8mm barbore
Grips
DB4L Lock-on 135mm D2 Kraton
Headset
FSA C-40 Sealed 1-1/8"/1.5" ACB Integrated
Seat
Saddle
DB Race M-series saddle w/ cromo rails
Seatpost
DB Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Rake | 50 mm | 50 mm | 50 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 457 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Standover Height | 787 mm | 804 mm | 820 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

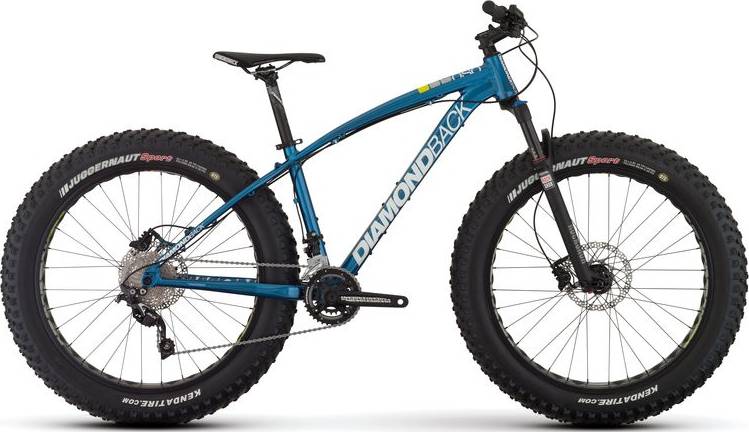

El Oso is a Diamondback El Oso model. There are 23 bikes that carry this model name. Take a sneak peek at all Diamondback El Oso bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The RockShox Bluto RL is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the El Oso bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The El Oso has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Diamondback El Oso bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
