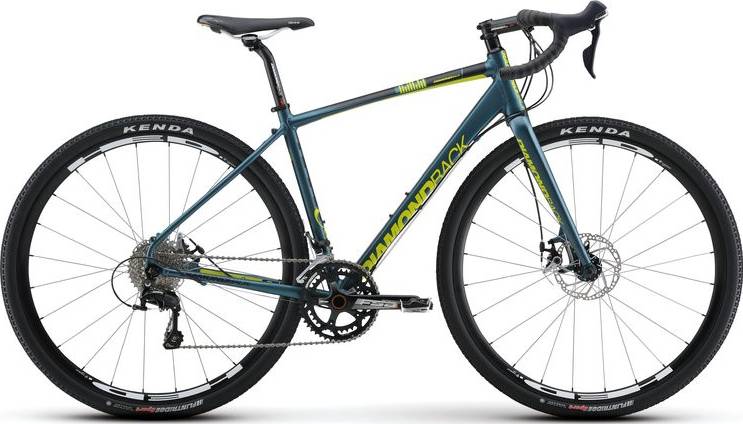

Diamondback Haanjenn Comp 2017
2017 Urban
Estimate price |
1,499$
Weight | 10.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex 1, 105 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Women's Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Disc Only, 142x12mm Thru-axle w/ Replaceable Hanger
Suspension Fork
DB Gravel Disc, Carbon Leg, 1.5" Tapered Alloy Steerer Tube, w/ 15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM Apex 1, 11 Speed
Front Derailleur
Shimano 105 FD-5800, 31.8
Shift Levers
SRAM Apex 1, 1x11 Speed
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM S350 X-Sync, w/ 44T Chainring
Bottom Bracket
SRAM GXP
Chain
KMC X11EL, 11 Speed
Pedals
DB Laser Alloy Platform
Wheels
Front Hub
24h Alloy HighLow Flange, Sealed Cartridge, CNC Disc Mount, 15mm Thru-axle
Rear Hub
24h Alloy HighLow Flange, Sealed Cartridge, CNC Disc Mount, 142x12mm Thru-axle
Rims
HED Tomcat Disc, 24h, 21mm Internal Width, Tubeless Ready
Spokes
14g Stainless Steel
Tires
Kenda Flintridge, 60TPI, 700x35c
Brakes
Brakes
SRAM Apex 1 Hydraulic Disc, w/ 160mm Front / 140mm Rear Centerline Rotors
Brake Levers
SRAM Apex 1
Cockpit
Stem
HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED Eroica, 7050 Alloy, 31.8mm Bar Bore
Grips
DB Gel Tape
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Performance Womens Road
Seatpost
HED Eroica, 6061 Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.51 mm | 1.56 mm | 1.57 mm |
| Front Center | 609 mm | 595 mm | 596 mm | 601 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 67 mm | 63 mm | 61 mm |
| Stack | 536 mm | 549 mm | 565 mm | 581 mm |
| Reach | 372 mm | 363 mm | 363 mm | 369 mm |
| Top Tube Length | 508 mm | 518 mm | 528 mm | 543 mm |
| Seat Tube Angle | 76 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1022 mm | 1008 mm | 1009 mm | 1014 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 717 mm | 741 mm | 767 mm | 793 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Haanjenn Comp completes the Diamondback Haanjenn model. Diamondback launched 12 bikes of this model so far. You can easily view all of the Diamondback Haanjenn bikes models from 2017, here.
Model range prices
Diamondback Haanjenn Metro 2017 is the most economical model, with a starting price of 549$. Diamondback Haanjenn Comp 2017 on the other hand costs 1499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Diamondback Haanjenn Comp price was 1499$. If we compare this with the average Commuter bike cost we notice that the price is 96.72% more expensive.
Average weight for Commuter bikes
Commuter bikes weigh an average of 14.29 kg (31.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Haanjenn Comp has a weight of 10.3 kg (22.71 lbs). In conclusion, the average Commuter bike weighs 38.74% more than Haanjenn Comp.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Haanjenn Comp are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Haanjenn Comp is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Diamondback Haanjenn Comp bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
