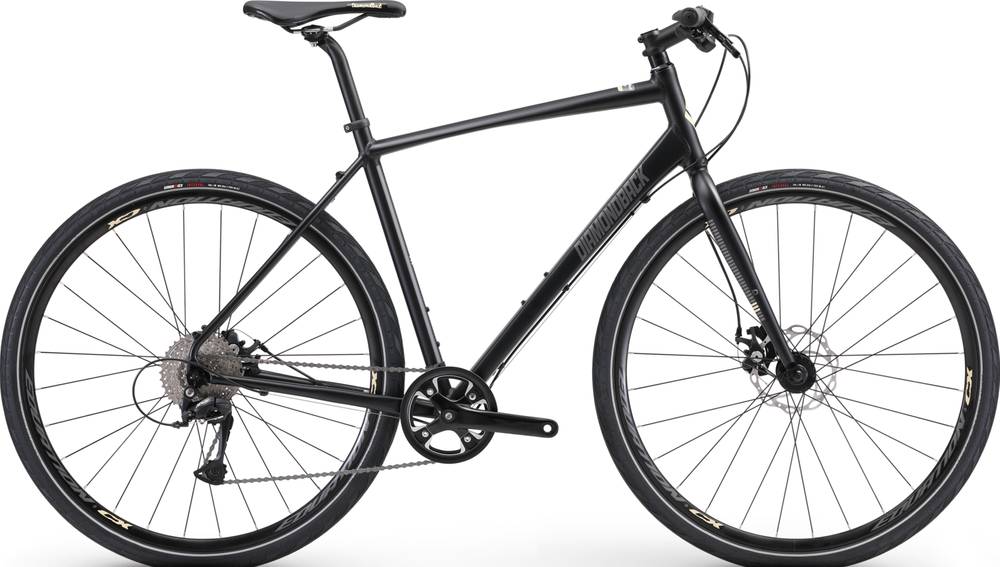

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Acera -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, 1 1/8" Headtube, Replaceable Hanger
Suspension Fork
DB Steel Gravel Disc, 1-1/8" Steerer Tube, w/Fender and Low Rider Mounts
Drivetrain
Rear Derailleur
Shimano Acera RD-T3000, 9 Speed, SGS
Shift Levers
Shimano Acera M3000, 9 Speed
Cassette
Shimano HG201, 9 Speed Cassette, 11-36T
Crank
Alloy, 38T Single Ring w/Alloy Chainguard
Bottom Bracket
Steel Cartridge
Chain
KMC Z9, 9 Speed
Pedals
DB Platform
Wheels
Front Hub
28h Alloy Quick Release
Rear Hub
28h Alloy Quick Release, Cassette
Rims
Diamondback Equation CX, 28h, Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Zilent Wire Bead, 700x38c, Reflective Sidewall, 27TPI
Brakes
Brakes
Tektro Aries Mechanical Disc, w/160mm Rotor / 140mm Rear Rotor
Brake Levers
Tektro 2 Finger Alloy
Cockpit
Stem
DB 6061 Alloy, 3D Forged, +/-7° Rise, 31.8mm Bar Bore
Handlebar
DB Flat Bar, 640mm Wide, 31.8mm Bar Bore
Grips
Diamondback Dual Density Grip
Headset
FSA IS-3/ No.11 Integrated Style
Seat
Saddle
Diamondback Performance Mens Gravel Road
Seatpost
DB Alloy, Micro Adjust, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.57 mm | 1.6 mm | 1.61 mm | 1.6 mm |
| Bottom Bracket Height | 276 mm | 278 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 588 mm | 589 mm | 606 mm | 628 mm | 648 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 536 mm | 555 mm | 579 mm | 602 mm | 621 mm |
| Reach | 359 mm | 353 mm | 362 mm | 375 mm | 389 mm |
| Top Tube Length | 520 mm | 520 mm | 535 mm | 555 mm | 575 mm |
| Seat Tube Angle | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 450 mm | 505 mm | 535 mm | 565 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 130 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1013 mm | 1014 mm | 1031 mm | 1053 mm | 1074 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 700 | 733 mm | 777 mm | 806 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Haanjo 1 completes the Diamondback Haanjo model. There are 60 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Diamondback Haanjo 1 2020 is the most economical model, with a starting price of 785$. Diamondback Haanjo 8C Carbon 2020 on the other hand costs 4600$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 785$. In conclusion, this bike price is 213.63% lower than the price of the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Diamondback Haanjo 1 2020, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
