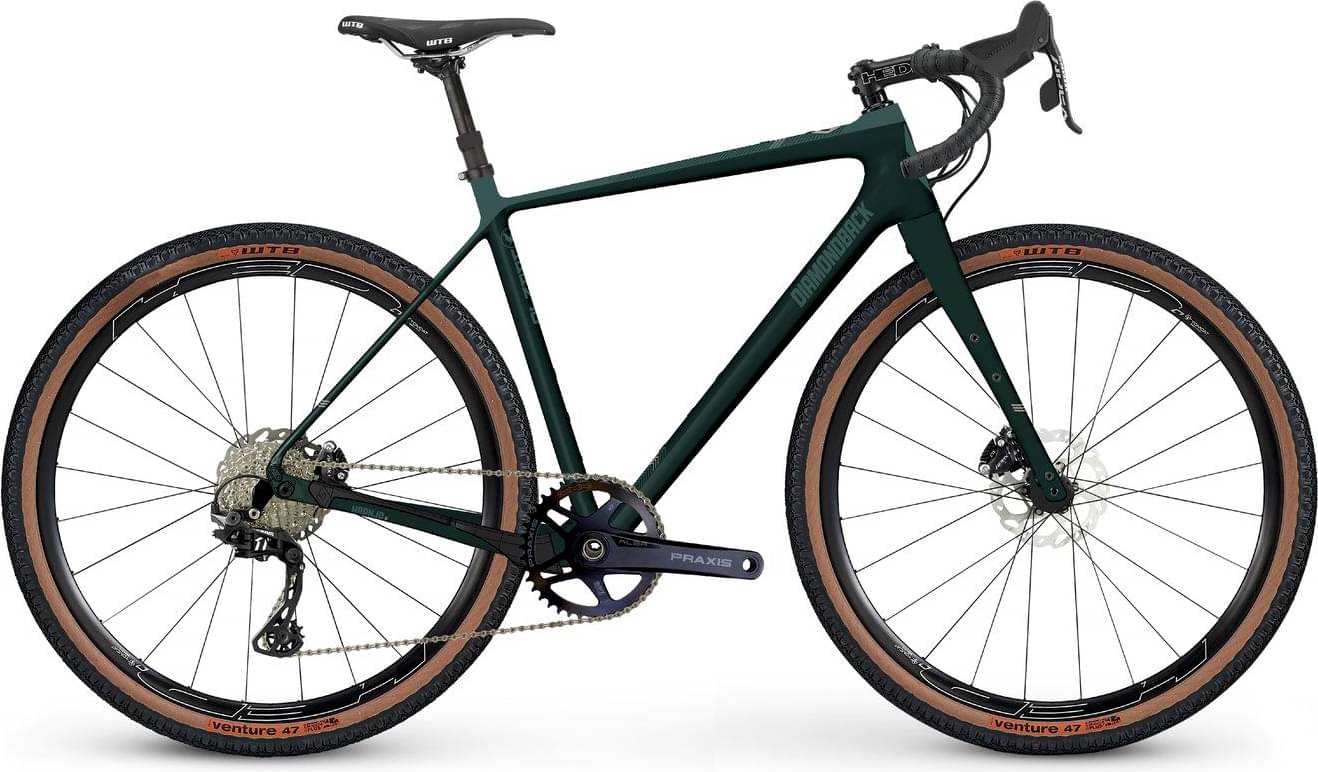

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Gravel Frame, Endurance Geometry, Disc Specific, w/ 142x12 Thru-axle, Top Tube Bag Mounts, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
SRAM Apex, 12 Speed
Shift Levers
SRAM Apex, Double Tap 1x12 Speed
Cassette
SRAM PG-1210 Cassette 11-50T, 12 Speed
Crank
SRAM Apex DUB Wide, 40T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Apex, 12 Speed
Pedals
DB Resin Gravel Platform
Wheels
Front Hub
24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Aluminum Sealed Cartridge, Enter Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 25mm Internal Width, Tubeless Compatible
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Vulpine, TCS, Dual DNA Compound, Lightweight Tubeless Casing, 700x40
Brakes
Brakes
SRAM Apex, Flat Mount Hydraulic Disc, w/160mm F / 160mm R, Rotors
Brake Levers
SRAM Apex Hydraulic
Cockpit
Stem
HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Gravelier, Cromoly Rail, 142x250
Seatpost
Kind Shock eTENi 27.2 Dropper, 65mm (XS,SM,MD) 100mm (LG,XL) travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.57 mm | 1.57 mm | 1.56 mm |
| Bottom Bracket Height | 278 mm | 280.5 mm | 280.5 mm | 280.5 mm |
| Front Center | 613 mm | 619 mm | 630 mm | 655 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 77 mm | 66 mm | 67 mm |
| Stack | 578 mm | 590 mm | 608 mm | 631 mm |
| Reach | 373 mm | 375 mm | 387 mm | 405 mm |
| Top Tube Length | 534 mm | 549 mm | 574 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 535 mm | 565 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 185 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1031 mm | 1038 mm | 1049 mm | 1074 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 748 mm | 784 mm | 812 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Haanjo 6C belongs to the Diamondback Haanjo model. Diamondback launched 60 bikes of this model so far. Take a sneak peek at all Diamondback Haanjo bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Diamondback Haanjo 1 2023 has a starting price of 785$. Diamondback Haanjo 8C 2023 on the other hand is the most expensive at 5700$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3500$. Doing a quick comparison, we notice that Haanjo 6C price is 42.16% more expensive than the average cost of a Gravel bike.
Haanjo 6C components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Haanjo 6C are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Haanjo 6C has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
