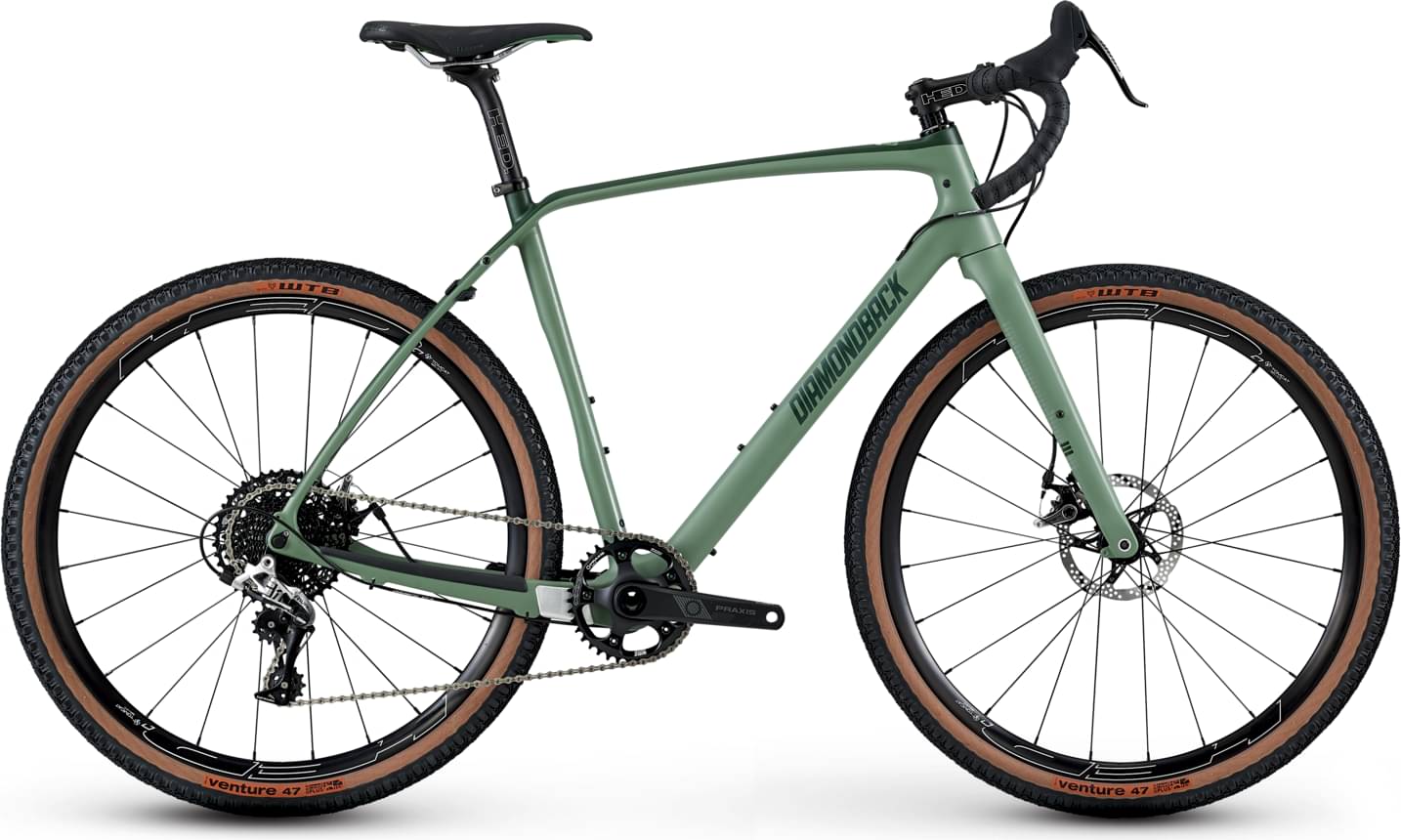

Diamondback Haanjo 6C Carbon 2023
2023 Road
Estimate price |
2,550$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival, Praxis -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
SRAM Rival 1, 11 Speed
Shift Levers
SRAM Rival 1, 1x11 Speed
Cassette
SRAM PG-1130, 11 Speed, 11-42T
Crank
Praxis Cadet, Direct Mount, 38T
Bottom Bracket
Praxis M30 Sealed
Chain
KMC X11EL, 11 Speed
Wheels
Front Hub
24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 21mm Internal Width, Taped for Tubeless
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Venture Road Plus TCS, Dual DNA Compound, Lightweight Casing Tubeless, 650x47
Brakes
Brakes
TRP Spyre Mechanical Flat mount w/160mm Front /160mm Rear Center lock Rotors
Brake Levers
SRAM Rival 1
Cockpit
Stem
HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Race
Seatpost
HED, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 72 mm | 66 mm | 61 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
Haanjo 6C Carbon belongs to the Diamondback Haanjo model. Diamondback released 60 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Diamondback Haanjo 1 2023 has a starting price of 785$. Diamondback Haanjo 8C 2023 on the other hand is the most expensive at 5700$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Diamondback released this model in 2023, its price was 2550$. Comparing the average cost of a Gravel bike to this one, you will see that Haanjo 6C Carbon price is 3.57% higher.
Haanjo 6C Carbon components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Haanjo 6C Carbon bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Haanjo 6C Carbon is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
