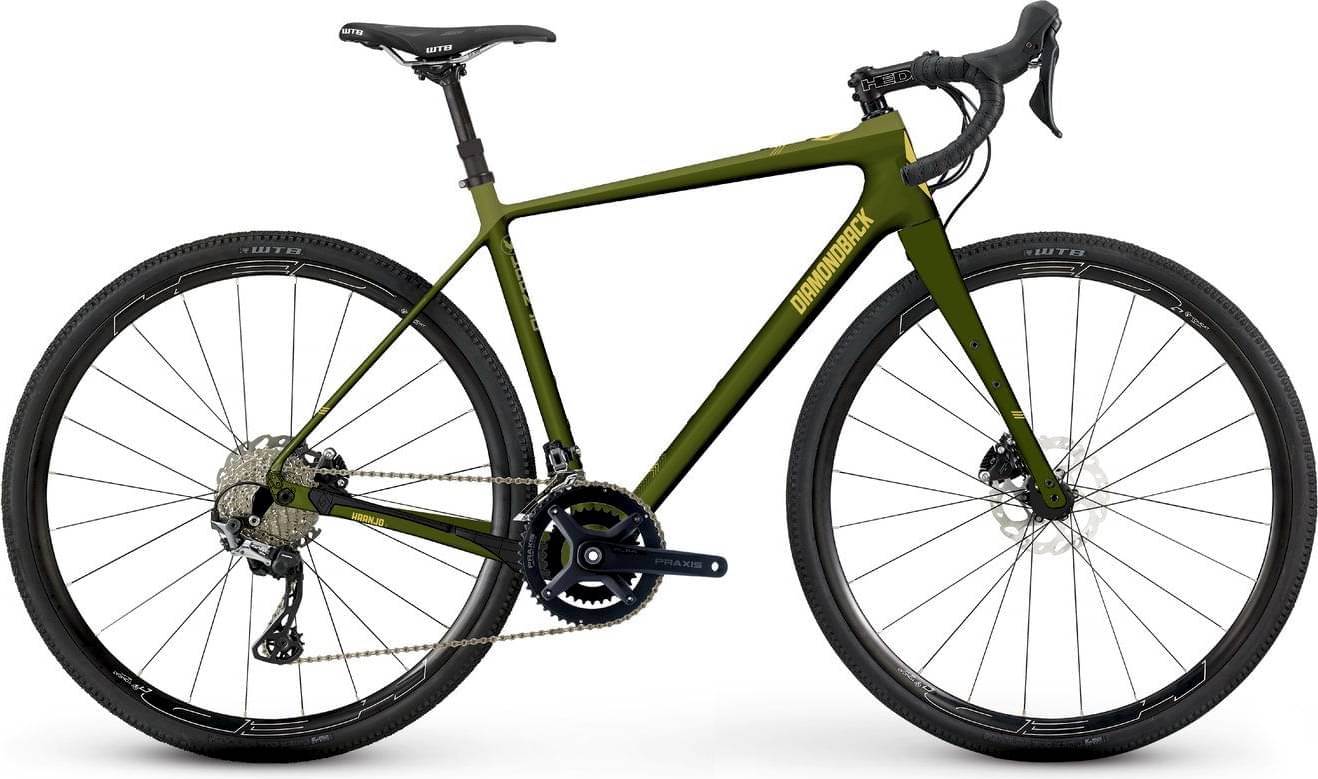

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Gravel Frame, Endurance Geometry, Disc Specific, w/ 142x12 Thru-axle, Top Tube Bag Mounts, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
SRAM Apex AXS Eagle eTap, 12 Speed
Shift Levers
SRAM Apex AXS eTap, 12 speed
Cassette
SRAM PG-1230 Eagle 11-50T
Crank
SRAM Apex 1 DUB WIDE, w/40t Ring
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Apex 12 speed
Wheels
Front Hub
24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 25mm Internal Width, Tubeless Compatible
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Vulpine, Dual DNA Compound, Lightweight Tubeless Casing, 700x40c
Brakes
Brakes
SRAM Apex, Flat Mount Hydraulic Disc, w/160mm F / 160mm R, Rotors
Brake Levers
SRAM Apex Hydraulic
Cockpit
Stem
HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Gravelier, Cromoly Rail, 142x250
Seatpost
Kind Shock eTENi 27.2 Dropper, 65mm (XS,S,MD) 100mm (L,XL) travel w/KG Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.57 mm | 1.57 mm | 1.56 mm |
| Bottom Bracket Height | 278 mm | 280.5 mm | 280.5 mm | 280.5 mm |
| Front Center | 613 mm | 619 mm | 630 mm | 655 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 77 mm | 66 mm | 67 mm |
| Stack | 578 mm | 590 mm | 608 mm | 631 mm |
| Reach | 373 mm | 375 mm | 387 mm | 405 mm |
| Top Tube Length | 534 mm | 549 mm | 574 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 535 mm | 565 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 185 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1031 mm | 1038 mm | 1049 mm | 1074 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 748 mm | 784 mm | 812 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Haanjo 7C is part of the Diamondback Haanjo model. Diamondback launched 60 bikes of this model so far. You can easily view all of the Diamondback Haanjo bikes models from 2023, here.
Model range prices
Diamondback Haanjo 1 2023 is the cheapest bike model and costs 785$. Diamondback Haanjo 8C 2023 is the most expensive one and costs 5700$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 3800$. In conclusion, this bike price is 54.35% higher than the price of the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Haanjo 7C model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Haanjo 7C has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Diamondback Haanjo 7C comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
