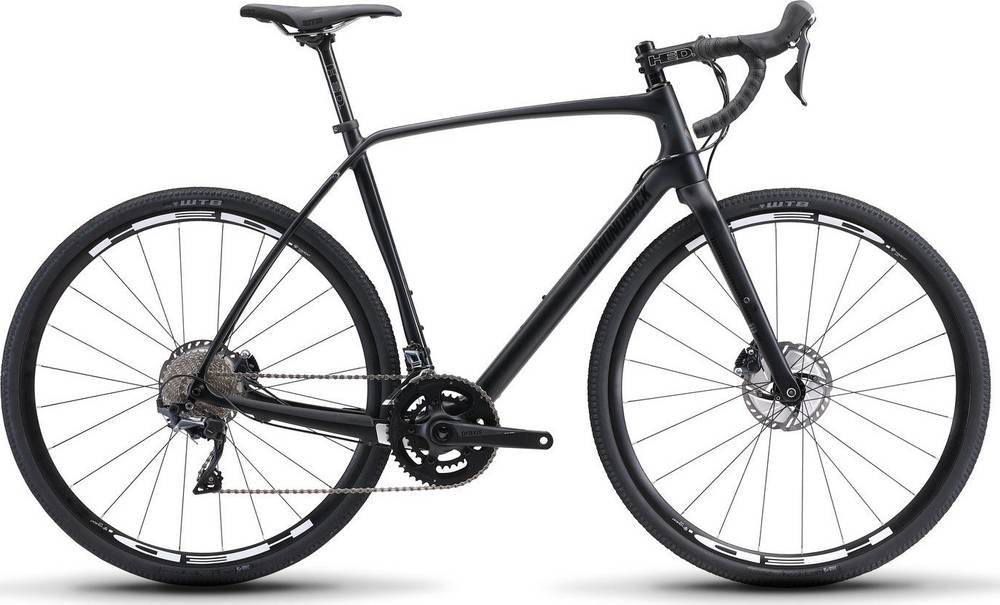

Diamondback Haanjo 7C Carbon 2019
2019 Road
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano Ultegra RX RD-R8000, Shadow Plus, 11 Speed, GS
Front Derailleur
Shimano Ultegra FD-R8000, 31.8mm Band Clamp
Shift Levers
Shimano ST-R8020, Dual Control 2x11 Speed
Cassette
Shimano CS-HG800 Cassette, 11 Speed, 11-34T
Crank
Praxxis Girder Direct Mount, 48/32T
Bottom Bracket
Praxxis M30 Sealed
Chain
KMC X11EL, 11 Speed
Wheels
Front Hub
24h Alloy, Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Alloy, Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 21mm Internal Width, Tubeless Ready
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Riddler, Dual DNA Compound, Lightweight Casing Tubeless, 700x37c
Brakes
Brakes
Shimano BR-R8070 Flat Mount Hydraulic Disc, w/160mm Front / 160mm Rear Rotors
Brake Levers
Shimano ST-R8020
Cockpit
Stem
HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED Eroica, 7050 Alloy, 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Pro
Seatpost
HED Pro Tour Carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 79 mm | 73 mm | 67 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Haanjo 7C Carbon belongs to the Diamondback Haanjo model. Diamondback released 60 bikes variations of this model so far. You can easily view all of the Diamondback Haanjo bikes models from 2019, here.
Model range prices
Diamondback Haanjo 1 2019 is the most economical model, with a starting price of 599$. Diamondback Haanjo 7C Carbon 2019 on the other hand costs 2999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Diamondback Haanjo 7C Carbon price was 2999$. In conclusion, this bike price is 21.81% higher than the price of the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Haanjo 7C Carbon are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
