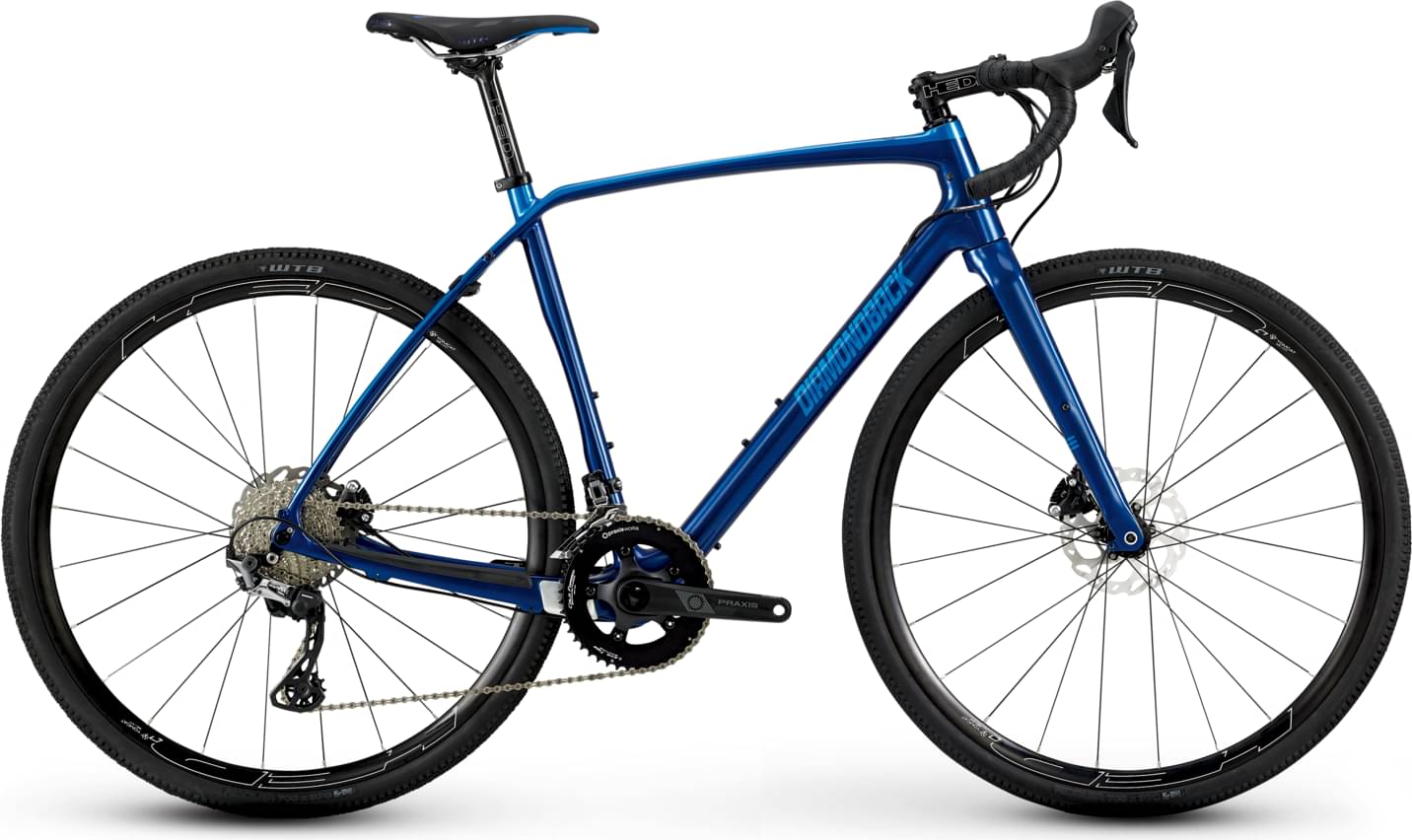

Diamondback Haanjo 7C Carbon 2023
2023 Road
Estimate price |
3,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano GRX810, Shadow Plus, 11 Speed
Front Derailleur
Shimano GRX810, 31.8mm Band Clamp
Shift Levers
Shimano GRX600 Dual Control 2x11 Speed
Cassette
Shimano CS-HG70011 Cassette, 11 Speed, 11-34T
Crank
Praxis Cadet Direct Mount, 48/32T
Bottom Bracket
Praxis M30 Sealed
Chain
KMC X11EL, 11 Speed
Wheels
Front Hub
24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 21mm Internal Width, Tubeless Ready
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Riddler, Dual DNA Compound, Lightweight Casing Tubeless, 700x37c
Brakes
Brakes
Shimano BR-RX400 Flat Mount Hydraulic Disc, w/160mm F / 160mm R, RT70 Rotors
Brake Levers
Shimano GRX600
Cockpit
Stem
HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Race
Seatpost
HED Pro Tour Carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 79 mm | 73 mm | 67 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Haanjo 7C Carbon is part of the Diamondback Haanjo model. 60 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Diamondback Haanjo 1 2023 has a starting price of 785$. Diamondback Haanjo 8C 2023 on the other hand is the most expensive at 5700$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3000$. In conclusion, this bike price is 21.85% higher than the price of the average Gravel bike.
Haanjo 7C Carbon components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Haanjo 7C Carbon bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Haanjo 7C Carbon has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
