Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset Apex AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Gravel Frame, Endurance Geometry, Disc Specific, w/ 142x12 Thru-axle, Top Tube Bag Mounts, Replaceable Hanger
Suspension Fork
Rock Shox Rudy 40mm Travel, Maxle Stealth
Drivetrain
Rear Derailleur
SRAM Apex AXS Eagle eTap, 12 speed
Shift Levers
SRAM Apex AXS eTap 12 speed
Cassette
SRAM PG-1230 Eagle 11-50t
Crank
SRAM Apex 1 DUB WIDE, w/40t Ring
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Apex, 12 Speed
Wheels
Front Hub
24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 25mm Internal Width, Tubeless Compatible
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Raddler, Dual DNA Compound, TCS, Lightweight Tubeless Casing, 700x44c
Brakes
Brakes
SRAM Apex, Flat Mount Hydraulic Disc, w/160mm F / 160mm R, Rotors
Brake Levers
SRAM Apex Hydraulic
Cockpit
Stem
HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Gravelier, Cromoly Rail, 142x250
Seatpost
Kind Shock eTENi 27.2 Dropper, 65mm (XS,S,MD) 100mm (L,XL) travel w/KG Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.57 mm | 1.57 mm | 1.56 mm |
| Bottom Bracket Height | 278 mm | 280.5 mm | 280.5 mm | 280.5 mm |
| Front Center | 613 mm | 619 mm | 630 mm | 655 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 77 mm | 66 mm | 50 mm |
| Stack | 578 mm | 590 mm | 608 mm | 631 mm |
| Reach | 373 mm | 375 mm | 387 mm | 405 mm |
| Top Tube Length | 534 mm | 549 mm | 574 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 535 mm | 565 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 185 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1031 mm | 1038 mm | 1049 mm | 1074 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 748 mm | 784 mm | 812 mm | 840 mm |
| Front Travel | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

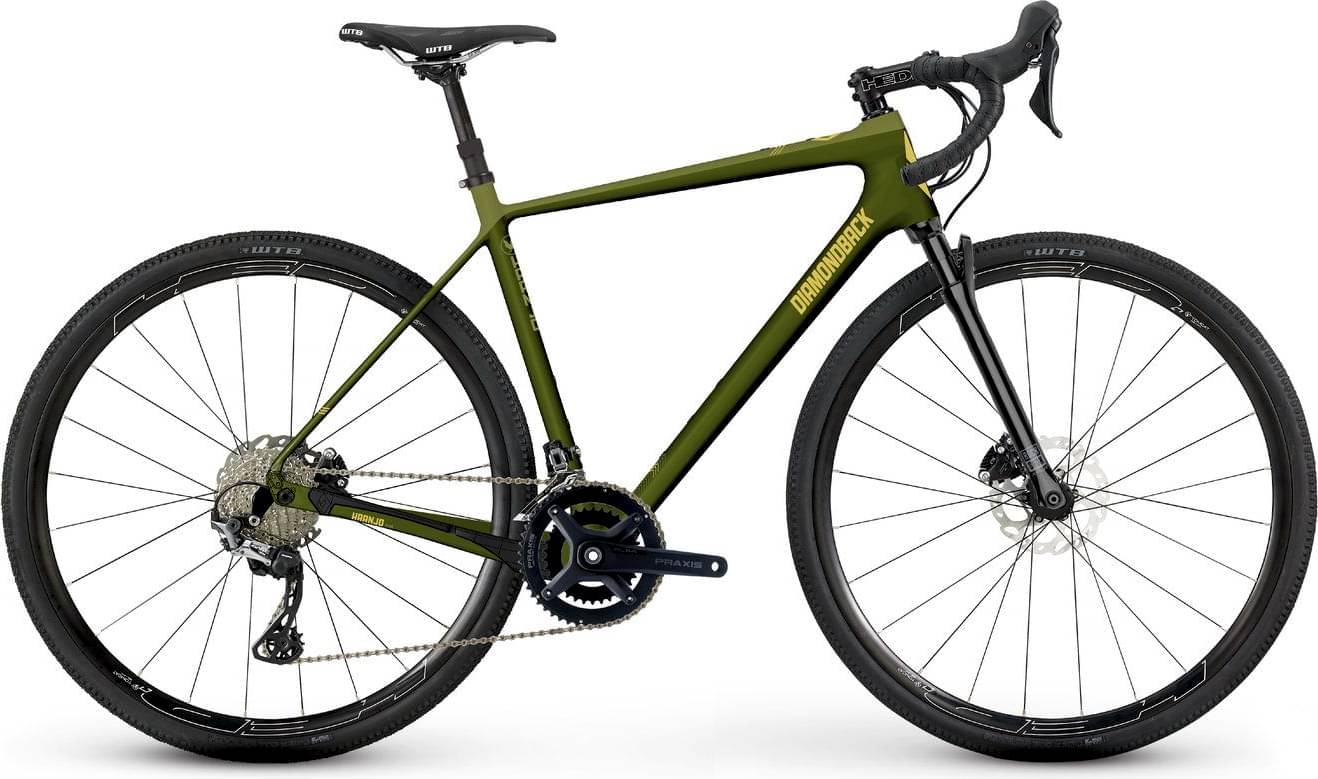

Haanjo 7C EXP completes the Diamondback Haanjo model. There are 60 bikes that carry this model name. You can easily view all of the Diamondback Haanjo bikes models from 2023, here.
Model range prices
Diamondback Haanjo 1 2023 is the most economical model, with a starting price of 785$. Diamondback Haanjo 8C 2023 on the other hand costs 5700$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Diamondback Haanjo 7C EXP price was 4400$. If we compare this with the average Gravel bike cost we notice that the price is 78.72% higher.
Haanjo 7C EXP components
Fork
This bike has the RockShox Rudy XPLR fork installed. The fork’s travel is 40mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Diamondback Haanjo 7C EXP 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Haanjo 7C EXP is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
The Diamondback model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
