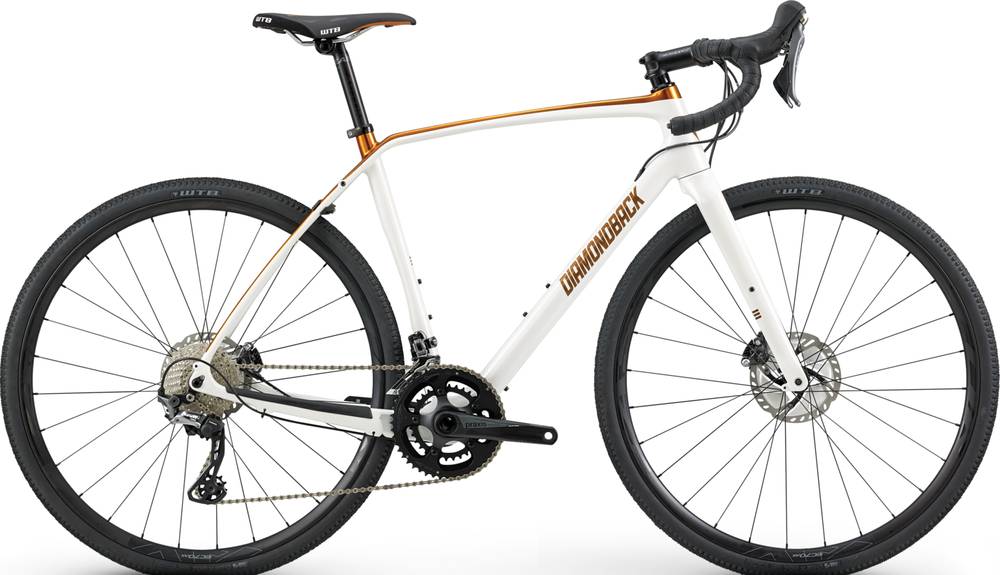

Diamondback Haanjo 8C Carbon 2021
2021 Road
Estimate price |
4,600$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano GRX810, Shadow Plus, 11 Speed
Front Derailleur
Shimano GRX810, 31.8mm Band Clamp
Shift Levers
Shimano GRX810 Dual Control 2x11 Speed
Cassette
Shimano CS-HG800 Cassette, 11 Speed, 11-34T
Crank
Praxis Girder, Direct Mount, 48/32T
Bottom Bracket
Praxis M30 Sealed
Chain
KMC X11EL, 11 Speed
Wheels
Front Hub
Easton EC70AX, 28h Aluminum Sealed Cartidge, Center Lock, 12mm Thru Axle
Rear Hub
Easton EC70AX, 28h Aluminum Sealed Cartidge, Center Lock, 12mm Thru Axle
Rims
Easton EC70AX, Carbon, 28h, 24mm Internal Width, Tubeless Ready
Spokes
Sapim Double Butted, 2.0/1.8/2.0
Tires
WTB Riddler, Dual DNA Compound, Lightweight Casing Tubeless, 700x37c
Brakes
Brakes
Shimano BR-RX810 Flat Mount Hydraulic Disc, w/160mm Front / 160mm Rear, RT800 Rotors
Brake Levers
Shimano GRX810
Cockpit
Stem
Easton EA70, +/-7° Rise, 31.8 Bar Bore
Handlebar
Easton EC70AX, Carbon, 16 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Pro
Seatpost
Easton EC70, Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 79 mm | 73 mm | 67 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Haanjo 8C Carbon is a Diamondback Haanjo model. There are 60 bikes that carry this model name. You can easily view all of the Diamondback Haanjo bikes models from 2021, here.
Model range prices
Diamondback Haanjo 1 2021 is the most affordable bike of this model and has a price of 785$. On the other hand, Diamondback Haanjo 8C Carbon 2021, is the most expensive and costs 4600$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 4600$. Doing a quick comparison, we notice that Haanjo 8C Carbon price is 86.84% higher than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Haanjo 8C Carbon 2021 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
