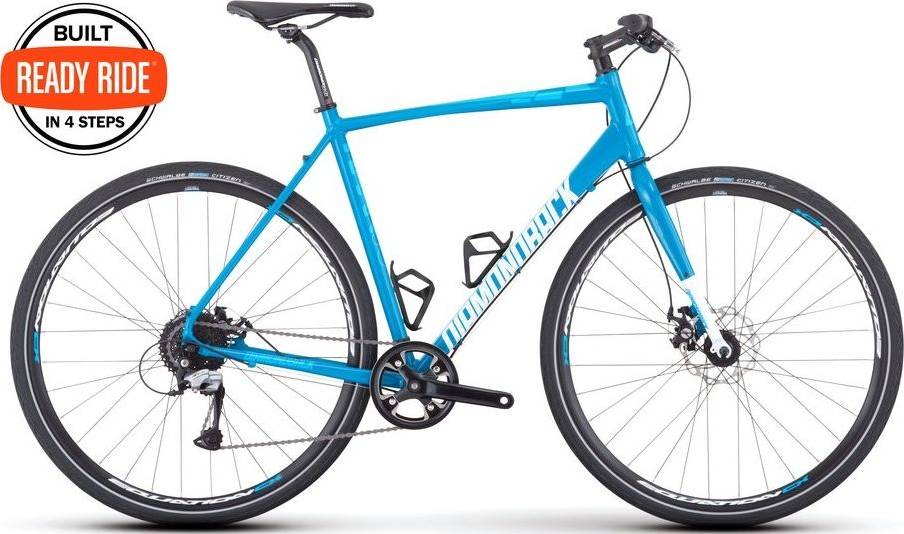

Diamondback Haanjo Metro 2017
2017 Road
Estimate price |
549$
Weight | 11.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Acera -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, 1 1/8" Headtube, Disc Only w/ Replaceable Hanger
Suspension Fork
DB Steel Urban Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts
Drivetrain
Rear Derailleur
Shimano Acera RD-T3000, 9 Speed
Shift Levers
Shimano Acera M3000, 9 Speed
Cassette
Shimano HG200, 9 Speed Cassette, 11-34T
Crank
Forged Alloy Arm, 38T Single Ring w/ Alloy Chainguard
Bottom Bracket
Sealed Cartridge
Chain
KMC Z99, 9 Speed
Pedals
DB Laser Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount
Rear Hub
32h Alloy w/ CNC Disc Mount, Cassette
Rims
DB Equation CX 700c 32h, Doublewall
Spokes
14g Stainless Steel
Tires
Schwalbe Citizen w/ Kevlar Guard, Reflective Strip, 700x37c
Brakes
Brakes
Tektro Aires Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Tektro 2 Finger Alloy Linear
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Flat Bar, 640mm Wide, 31.8mm Bar Bore
Grips
Diamondback Dual Density Grip
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Eldorado
Seatpost
DB X-Durance, Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.53 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 604 mm | 602 mm | 612 mm | 623 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 93 mm | 88 mm | 70 mm | 63 mm |
| Stack | 544 mm | 571 mm | 591 mm | 618 mm |
| Reach | 374 mm | 373 mm | 376 mm | 388 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1022 mm | 1020 mm | 1030 mm | 1041 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 749 mm | 779 mm | 805 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Haanjo Metro is part of the Diamondback Haanjo model. There are 60 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Haanjo Metro 2017 is the most affordable bike of this model and has a price of 549$. On the other hand, Diamondback Haanjo Comp Carbon 2017, is the most expensive and costs 2199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2017 and its price was 549$. If we compare this with the average Gravel bike cost we notice that the price is 348.45% smaller.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Haanjo Metro has a weight of 11.45 kg (25.24 lbs). In conclusion, the average Gravel bike weighs 40.84% less than Haanjo Metro.
Haanjo Metro components
Fork material
Haanjo Metro has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the Haanjo Metro bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Haanjo Metro is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Haanjo Metro comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
