Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
Suspension Fork
SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney TX800
Front Derailleur
Shimano Tourney TY500 Dual Pull
Shift Levers
Shimano SL-M315 3x7 Speed Rapid Fire Shifter
Cassette
Shimano GH20 Cassette, 7speed, 12-32 Tooth
Crank
Shimano Tourney TY301,42/34/24t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC Z7
Pedals
Wellgo Plastic Body
Wheels
Front Hub
Formula DC-20F, 6 Bolt, Disc, Quick Release
Rear Hub
Formula DC-22-7R, 6 Bolt, Disc, Quick Release
Rims
Aluminum MTB DDM-2 Double Wall, 32 hole
Spokes
Stainless Steel
Tires
Vee Tire Rail Escape, 27.5x2.25" or 29x2.25"
Brakes
Brakes
Tektro M275 IS Post Mount, Hydraulic with 160mm Rotors F/R
Brake Levers
Tektro M275 Hydraulic
Cockpit
Stem
Aluminum MTB 31.8 Bar Bore Stem
Handlebar
Aluminum 31.8mm Bar, 25mm Rise
Grips
MTB Grip
Headset
1-1/8" Semi Integrated Cartridge Bearing
Seat
Saddle
MTB Saddle
Seatpost
Aluminum 27.2 Post with 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.55 mm | 1.55 mm | 1.5 mm | 1.46 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 630 mm | 655 mm | 660 mm | 687 mm | 713 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 99 mm | 99 mm | 85 mm | 84 mm | 85 mm |
| Stack | 582 mm | 591 mm | 611 mm | 625 mm | 639 mm |
| Reach | 360 mm | 382 mm | 395 mm | 416 mm | 437 mm |
| Top Tube Length | 534 mm | 559 mm | 584 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 110 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 419 mm | 419 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1044 mm | 1069 mm | 1091 mm | 1118 mm | 1144 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 714 mm | 744 mm | 779 mm | 803 mm | 838 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

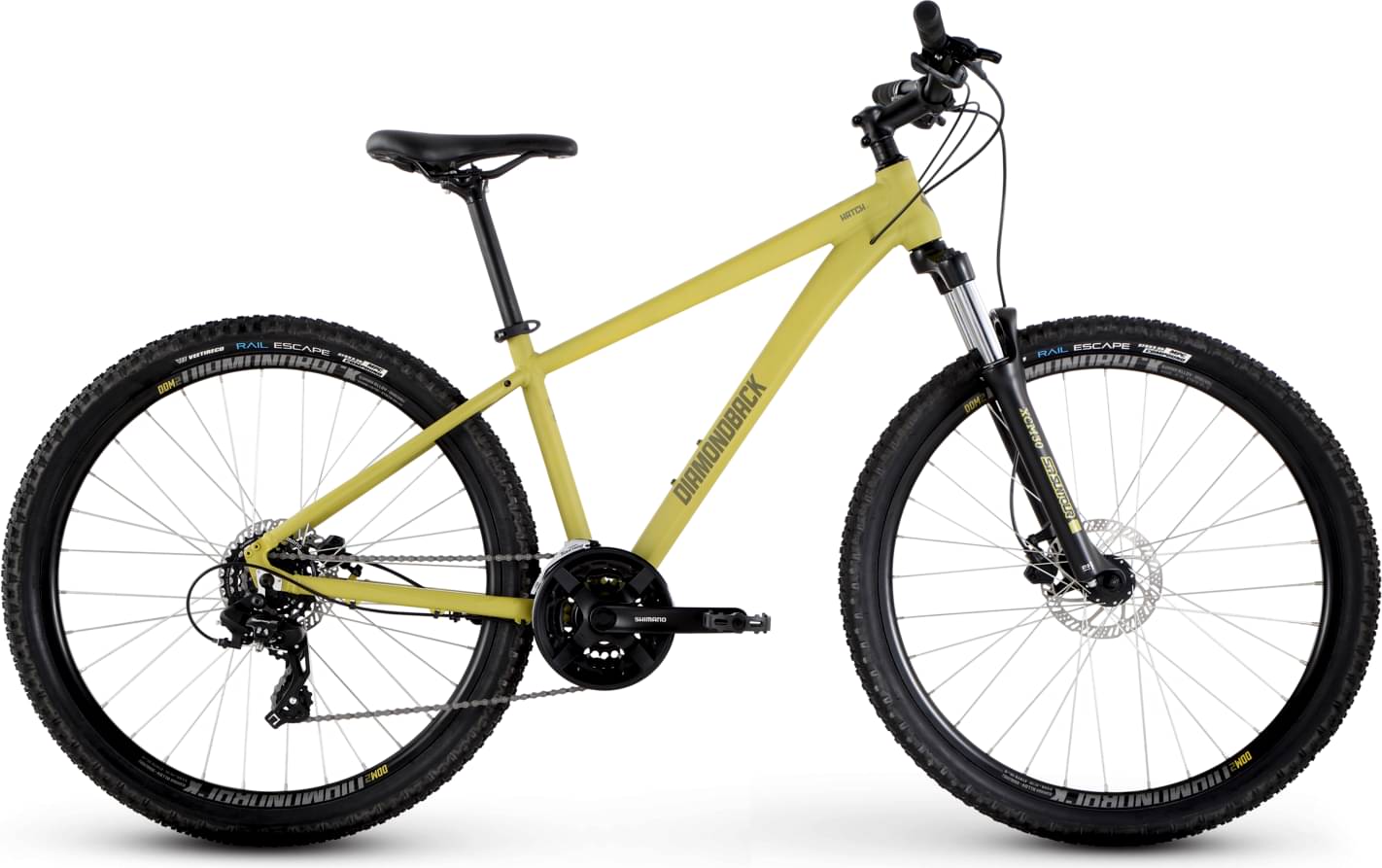

Model Overview
Hatch 3 is a Diamondback Hatch model. Diamondback launched 9 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Hatch 1 2023 has a starting price of 575$. Diamondback Hatch 3 2023 on the other hand is the most expensive at 775$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 775$. Comparing the average cost of a Crosscountry bike to this one, you will see that Hatch 3 price is 145.81% lower.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Diamondback Hatch 3 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Hatch 3 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Hatch 3 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
