Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Insight 6061-T6 Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, Vertical Compliance Stays, (VCS), w/ Disc Tabs, replaceable derailleur hanger
Suspension Fork
Insight Integrated Ferous Aero Hi-Ten Steel Straight Blade w/ Disc Tabs
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TX51
Shift Levers
Shimano EF-51 Easyfire 7spd
Cassette
Shimano 7spd (14-28t) Freewheel
Crank
Shimano FCM131 w/ chainguard, 28/38/48t
Bottom Bracket
Sealed Cartridge
Chain
KMC-Z51
Pedals
DB Toe Clip Compatible Platform
Wheels
Front Hub
32h Alloy QR
Rear Hub
32h Alloy QR Cassette
Rims
32h Equation R23 Doublewall
Spokes
Black 14g Stainless Steel
Tires
Kenda Kwick Trax 700x32c
Brakes
Brakes
Alloy Linear
Brake Levers
Shimano EF-51
Cockpit
Stem
DB 3D Forged 7° 31.8mm
Handlebar
DB 31.8mm low rise Alloy
Grips
Diamondback Dual Density Comfort Grip
Headset
Integrated "Cane Creek" Size Drop-in ACB 1 1/8"
Seat
Saddle
DB Performance Hybrid w/ Gel
Seatpost
Alloy Micro Adjust 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.497 mm | 1.493 mm | 1.501 mm |
| Front Center | 609 mm | 632 mm | 654 mm | 674 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 69 mm | 70 mm | 69 mm | 70 mm |
| Stack | 577 mm | 596 mm | 615 mm | 638 mm |
| Reach | 379 mm | 398 mm | 412 mm | 425 mm |
| Top Tube Length | 555 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1049 mm | 1073 mm | 1095 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 710 mm | 752 mm | 793 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

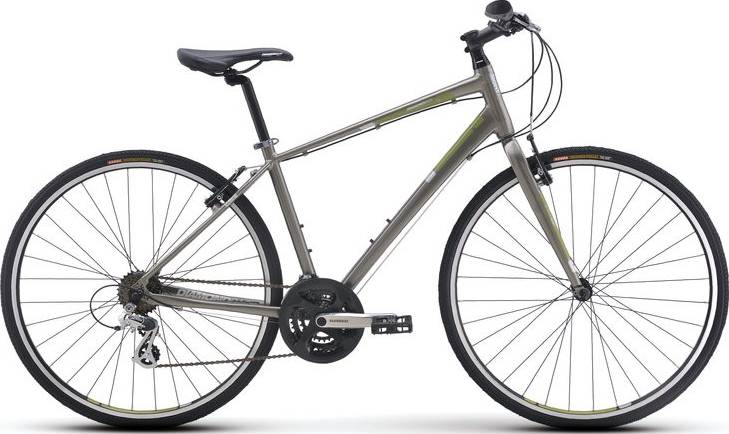

About this model
Insight 1 is part of the Diamondback Insight model. Diamondback released 10 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Insight 20 2017 is the most affordable bike of this model and has a price of 259$. On the other hand, Diamondback Insight 24 2017, is the most expensive and costs 299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Insight 1 components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When it comes to wheels, the Insight 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Insight 1 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
