Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Insight 6061-T6, Butted Aluminum Performance Hybrid w/ Formed / Hooded Top Tube, Integrated Headtube, VCS Compliant Stays, w/ Replaceable Derailleur Hanger
Suspension Fork
Insight Integrated Ferous Aero Hi-Ten Steel, Straight Blade
Drivetrain
Rear Derailleur
Shimano Altus 7 Speed
Front Derailleur
Shimano Tourney TY510, Top Swing, Dual Pull, 31.8mm Clamp Diameter
Shift Levers
Shimano EF-51 Easyfire, 3x7 Speed
Cassette
Shimano TZ-21 7 Speed Freewheel, 14-28T
Crank
Shimano Tourney TY501 w/ Chainguard, 48/38/28T
Bottom Bracket
Sealed Cartridge
Chain
KMC-Z51, 7 Speed
Pedals
DB Toe Clip Compatible Platform
Wheels
Front Hub
32h Alloy QR
Rear Hub
32h Alloy QR, Freewheel
Rims
32h Equation R23 Doublewall
Spokes
14g Stainless Steel
Tires
Kenda Kwick Trax, 700x32c
Brakes
Brakes
Alloy Linear
Brake Levers
Shimano EF-51
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB, Low rise, 630mm Wide, 31.8mm Bar Bore
Grips
Diamondback Dual Density Comfort Grip
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Performance Hybrid w/ Gel
Seatpost
Alloy Micro Adjust, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.501 mm | 1.493 mm | 1.501 mm |
| Front Center | 608 mm | 632 mm | 653 mm | 674 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 69 mm | 70 mm | 70 mm |
| Stack | 577 mm | 596 mm | 615 mm | 638 mm |
| Reach | 379 mm | 397 mm | 412 mm | 425 mm |
| Top Tube Length | 555 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm | 215 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1048 mm | 1073 mm | 1094 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 710 mm | 753 mm | 793 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

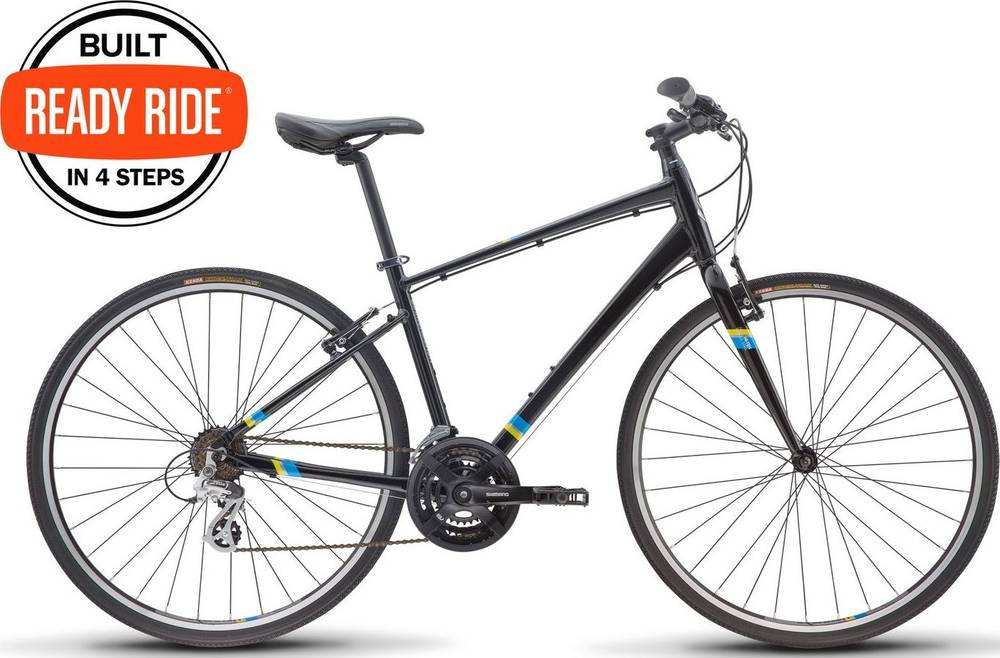

Insight 1 is part of the Diamondback Insight model. Diamondback released 10 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Diamondback Insight 20 2018 is the most affordable bike of this model and has a price of 259$. On the other hand, Diamondback Insight 1 2018, is the most expensive and costs 449$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Diamondback Insight 1 price was 449$. Comparing the average cost of a Fitness bike to this one, you will see that Insight 1 price is 46.1% smaller.
Overview of components
Fork material
Insight 1 has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Diamondback Insight 1 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Insight 1 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Diamondback Insight 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
