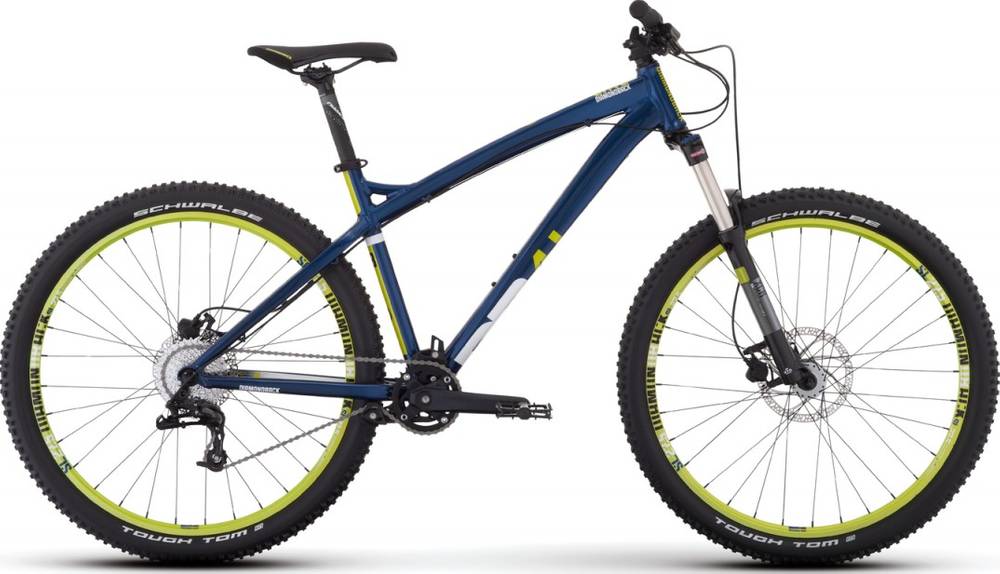

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR
-
Groupset X5, X4 -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready
Suspension Fork
SR Suntour XCR 120mm Travel, 32mm Stanchions, Magnesium Lowers, w/ Preload Adjust and Hydrolic Lock Out
Drivetrain
Rear Derailleur
SRAM X5, 9 Speed
Front Derailleur
Full ISCG-05 Chain Guide w/ Roller
Shift Levers
SRAM X4 9 Speed
Cassette
SRAM PG950 Cassette, 9 Speed, 11-34T
Crank
Alloy Arm w/ 32T Alloy Single Ring
Bottom Bracket
Sealed Cartridge
Chain
KMC Z99, 9 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h SL-7, 15MM Thru-Axle, Alloy w/ CNC Disc Mount,
Rear Hub
32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Rims
32h Diamondback SL-7 Doublewall
Spokes
14g Stainless Steel
Tires
Schwalbe Tough Tom 27x2.35", (60-584)
Brakes
Brakes
Tektro Auriga Hydraulic Disc, w/ 180 Front /160mm Rear Rotors
Brake Levers
Tektro 2 finger Alloy Linear w/ reach Adjust
Cockpit
Stem
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar
Diamondback "Pro Bar", 750mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB4L 135mm Kraton
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Sync'r Saddle
Seatpost
Alloy Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1087 mm | 1113 mm | 1135 mm | 1157 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 728 mm | 769 mm | 799 mm | 830 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Line is part of the Diamondback Line model. Diamondback launched 14 bikes of this model so far. Take a sneak peek at all Diamondback Line bikes models from 2017, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Line components
Fork
The Line comes factory-installed with the SunTour XCR fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of magnesium, but they are not so popular as steel or carbon forks.
Wheels size
The wheels on Line are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Line comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
