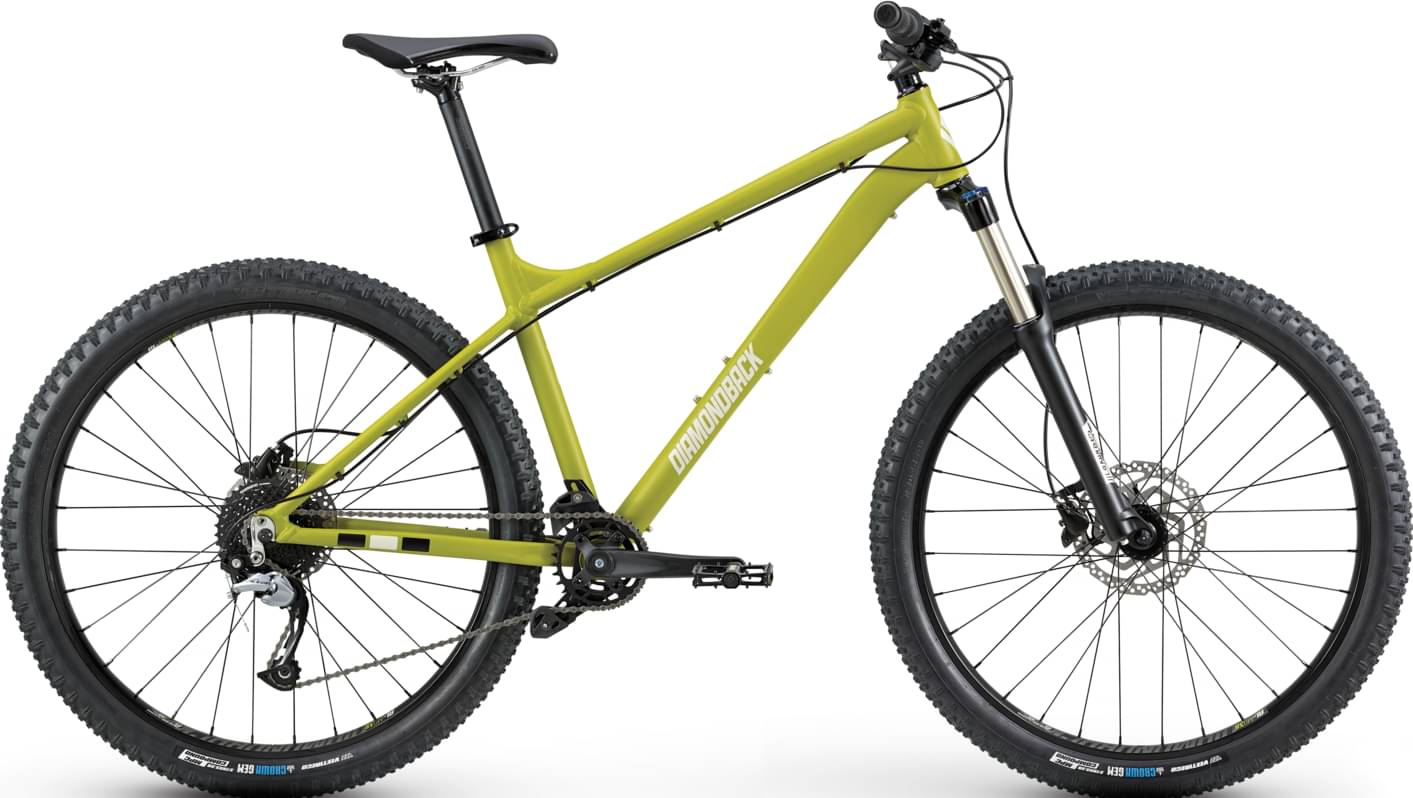

Diamondback Line 2022
2022 Mountain
Estimate price |
900$
Weight | 14.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready
Suspension Fork
SR Suntour XCR, 120mm Travel, 32mm Stanchions, Magnesium Lowers, w/ Preload Adjust and Hydraulic Lock Out
Drivetrain
Rear Derailleur
Shimano Acera M3000 Shadow, 9 Speed
Front Derailleur
Full ISCG-05 Chain Guide w/ Roller
Shift Levers
Shimano Acera M3000, 9 Speed
Cassette
Shimano HG200, 9 Speed, 11-36T
Crank
Alloy Arm w/ 30T Steel "Narrow Wide" Single Ring
Bottom Bracket
Sealed Cartridge
Chain
KMC Z9, 9 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount, 100mm
Rear Hub
32h Alloy w/ CNC Disc Mount, Cassette; 135mm
Rims
32h Diamondback DP25 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Crown Gem 27.5x2.35
Brakes
Brakes
Shimano MT-200 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar
Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Sync'r Saddle
Seatpost
Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.427 mm | 1.421 mm | 1.419 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 661 mm | 687 mm | 709 mm | 731 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 98 mm | 98 mm | 98 mm |
| Stack | 577 mm | 595 mm | 614 mm | 633 mm |
| Reach | 398 mm | 417 mm | 432 mm | 446 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1087 mm | 1113 mm | 1135 mm | 1157 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 728 mm | 769 mm | 799 mm | 830 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Line is a Diamondback Line model. There are 14 bikes that carry this model name. You can easily view all of the Diamondback Line bikes models from 2022, here.
Model range prices
Diamondback Line 24 2022 is the most economical model, with a starting price of 800$. Diamondback Line 2022 on the other hand costs 900$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Diamondback released this model in 2022, its price was 900$. If we compare this with the average Trail bike cost we notice that the price is 206.89% lower.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.29 kg (31.5 lbs), Diamondback bike is considerably heavier than average. In conclusion, the average Trail bike weighs 10.09% less than Line.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Diamondback Line 2022 bike is equipped with the Suntour XCR fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of magnesium, so, it’s a bit lighter than steel. However, it is not so resistant as a fork steel is.
Wheels
The Line 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Line comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Diamondback Line bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
