Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
Suspension Fork
SR Suntour XCT30 27.5", 80mm Travel, Coil Spring w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Altus M310, 8 Speed
Front Derailleur
Shimano Altus M313, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano EF-500 Easyfire, 3x8 Speed
Cassette
Shimano HG-31, 8 Speed Cassette, 11-32T
Crank
Shimano Tourney TY501, 42/34/24T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z82, 8 Speed
Pedals
DB4L Aluminum Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount; 100mm
Rear Hub
32h Alloy w/ CNC Disc Mount, Cassette; 135mm
Rims
32h Diamondback DP25 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Tire Crown Gem 27.5x2.35 Tires
Brakes
Brakes
Tektro Aries Mechanical Disc, w/ 160mm Front and Rear Rotors
Brake Levers
Shimano EF-500
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB D2 Kraton
Headset
1 1/8" Zero Stack
Seat
Saddle
DB Performance MTB Saddle
Seatpost
Aluminum Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 80 mm | 80 mm | 80 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

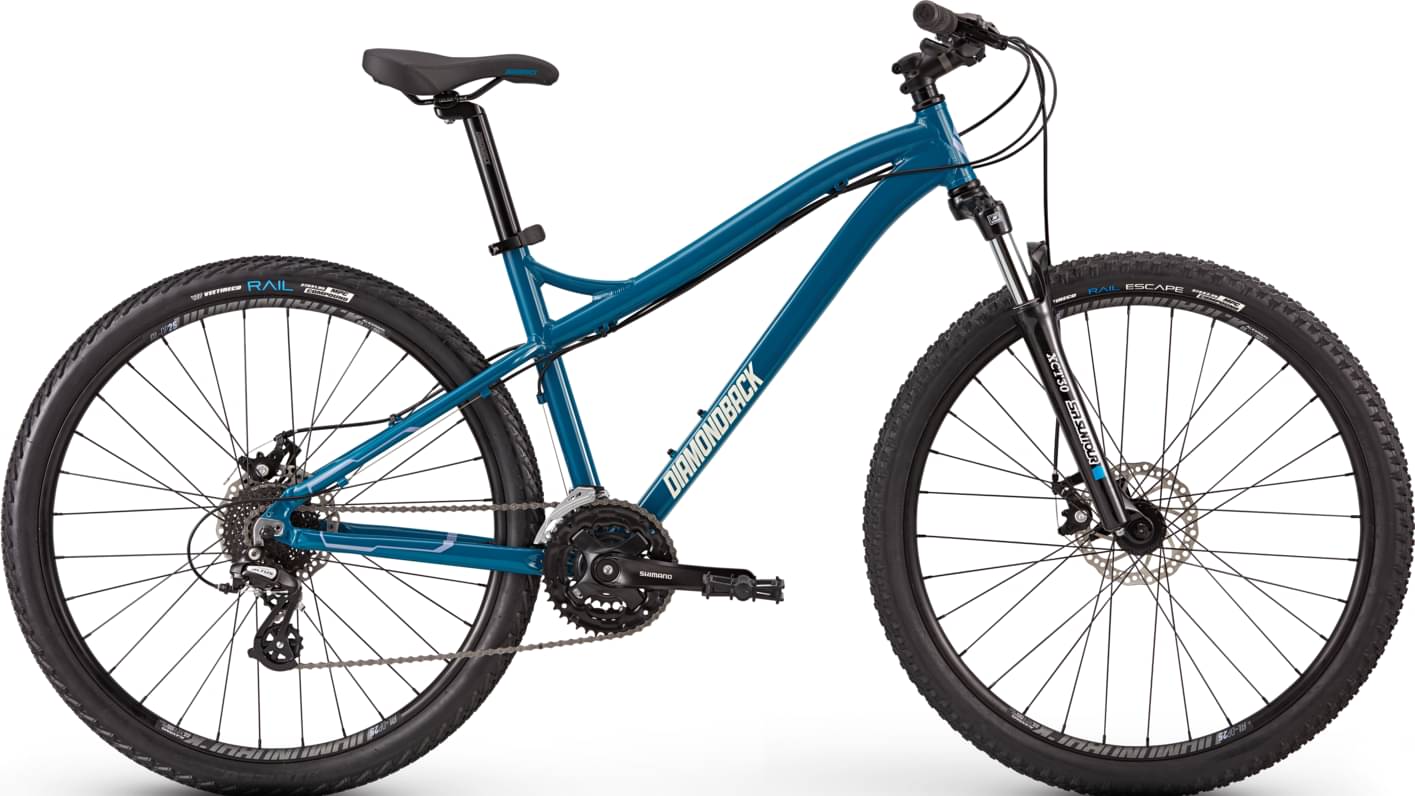

Model Overview
Lux 1 belongs to the Diamondback Lux model. Diamondback released 26 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Lux 1 2022 has a starting price of 750$. Diamondback Lux 3 2022 on the other hand is the most expensive at 1400$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Diamondback released this model in 2022, its price was 750$. Comparing the average cost of a Crosscountry bike to this one, you will see that Lux 1 price is 154% smaller.
Overview of components
Fork
The Suntour XCT is included from the factory. It has a travel distance of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Lux 1 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Lux 1 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Diamondback Lux 1 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
