Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube, Tapered Headtube, 9mm Quick Release Boost Drop Outs w/ Replaceable Hanger
Suspension Fork
Rock Shox Judy Silver TK, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, 30mm Steel Stanchions, Aluminum 1.5" Tapered Steerer Tube, Boost 110x15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM SX, 12 Speed
Shift Levers
SRAM SX Eagle 12 Speed X-Actuation Trigger
Cassette
SRAM PG1210, 12 Speed, 11-50T
Crank
SRAM SX w/ X-Sync 34T Chain Ring
Bottom Bracket
SRAM Powerspline
Chain
SRAM SX Eagle, 12 Speed, Power Link
Pedals
DB4L Aluminum Platform
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
Rear Hub
32h Aluminum 9mm Quick Release, Cassette w/ CNC Disc Mount, 141mm Boost spacing
Rims
32h Diamondback DP25 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Tire Crown Gem 27.5x2.35 Tires
Brakes
Brakes
Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Alloy Riser, 15mm Rise, 740mm Wide, 31.8mm Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Performance MTB Saddle
Seatpost
DB Aluminum Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

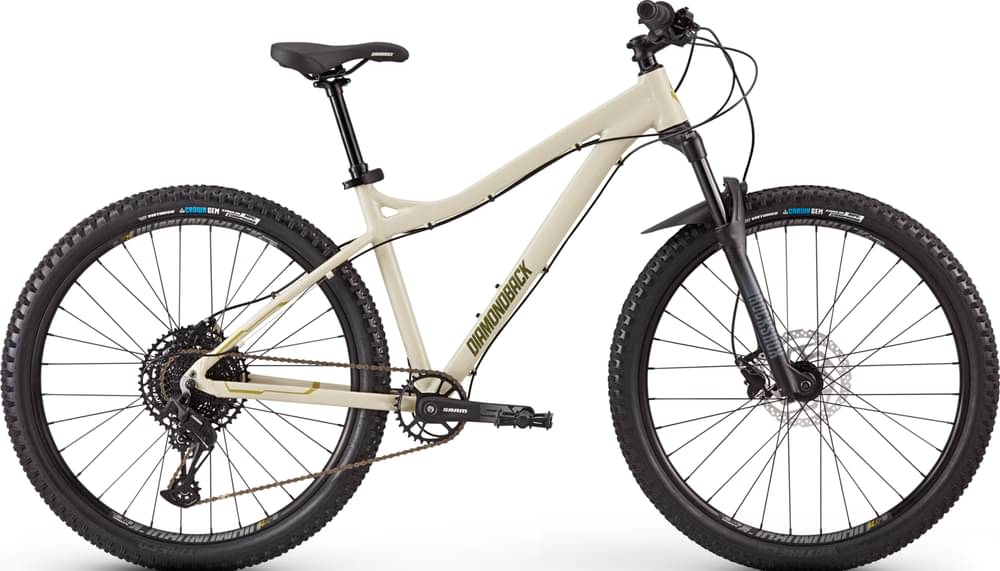

Lux 3 is a Diamondback Lux model. Diamondback launched 26 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Diamondback Lux 1 2021 is the most affordable bike of this model and has a price of 730$. On the other hand, Diamondback Lux 3 2021, is the most expensive and costs 1400$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 1400$. Doing a quick comparison, we notice that Lux 3 price is 97.29% smaller than the average cost of a Trail bike.
Overview of components
Fork
Diamondback Lux 3 2021 bike is equipped with the RockShox Judy Silver TK fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The Lux 3 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lux 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Lux 3 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
