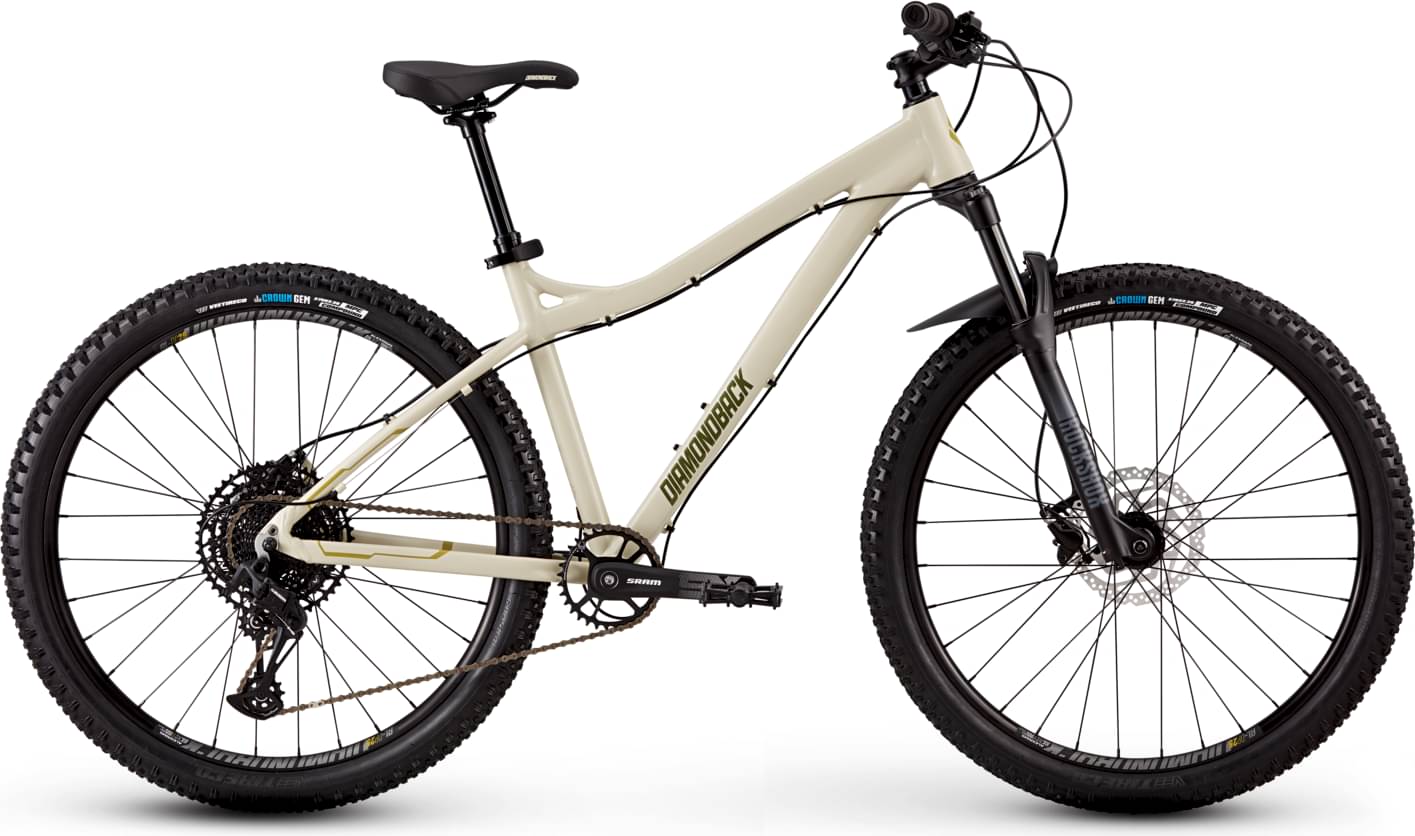

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube, Tapered Headtube, 9mm Quick Release Boost Drop Outs w/ Replaceable Hanger
Suspension Fork
Rock Shox Judy Silver TK, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, 30mm Steel Stanchions, Aluminum 1.5" Tapered Steerer Tube, Boost 110x15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM SX, 12 Speed
Shift Levers
SRAM SX Eagle 12 Speed X-Actuation Trigger
Cassette
SRAM PG1210, 12 Speed, 11-50T
Crank
SRAM SX w/ X-Sync 34T Chain Ring
Bottom Bracket
SRAM Powerspline
Chain
SRAM SX Eagle, 12 Speed, Power Link
Pedals
DB4L Aluminum Platform
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
Rear Hub
32h Aluminum 9mm Quick Release, Cassette w/ CNC Disc Mount, 141mm Boost spacing
Rims
32h Diamondback DP25 Doublewall, Tubeless Compatible Rim, Not Taped
Spokes
14g Stainless Steel
Tires
Vee Tire Crown Gem 27.5x2.35 Tires Non Tubeless Tire
Brakes
Brakes
Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Alloy Riser, 15mm Rise, 740mm Wide, 31.8mm Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Performance MTB Saddle
Seatpost
KS EXO Form 900i, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Lux 3 is part of the Diamondback Lux model. 26 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Diamondback Lux 1 2023 is the most economical model, with a starting price of 750$. Diamondback Lux 3 2023 on the other hand costs 1400$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 1400$. Comparing the average cost of a Trail bike to this one, you will see that Lux 3 price is 97.29% smaller.
Overview of components
Fork
The fork installed on this bike is the RockShox Judy Silver TK model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Lux 3 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Diamondback Lux 3 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Lux 3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Diamondback Lux 3 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
