Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Lux 27.5 Women's Specific Double Butted 6061-T6 Aluminum, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
Suspension Fork
RockShox 30 Silver, TK-27.5" w/ Turn Key Lockout, 100mm Travel, w/ Rebound and Compression Adjust
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM NX 1x, w/ X-Sync 30T Chain Ring
Bottom Bracket
SRAM GXP
Chain
SRAM PC-1130, 11 Speed, Power Link
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub
32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Rims
DB SL-7 27.5" 32h Doublewall
Spokes
14g Stainless Steel
Tires
Schwalbe Rapid Rob 27.5x2.25" w/ Kevlar Gaurd
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M315 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Bar, Devine Women's-Specific Width 720mm, 15mm Rise, 31.8mm Bar Bore
Grips
Devine Women's-Specific D2 Kraton
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
Devine Edition MTB Saddle
Seatpost
DB Laser Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

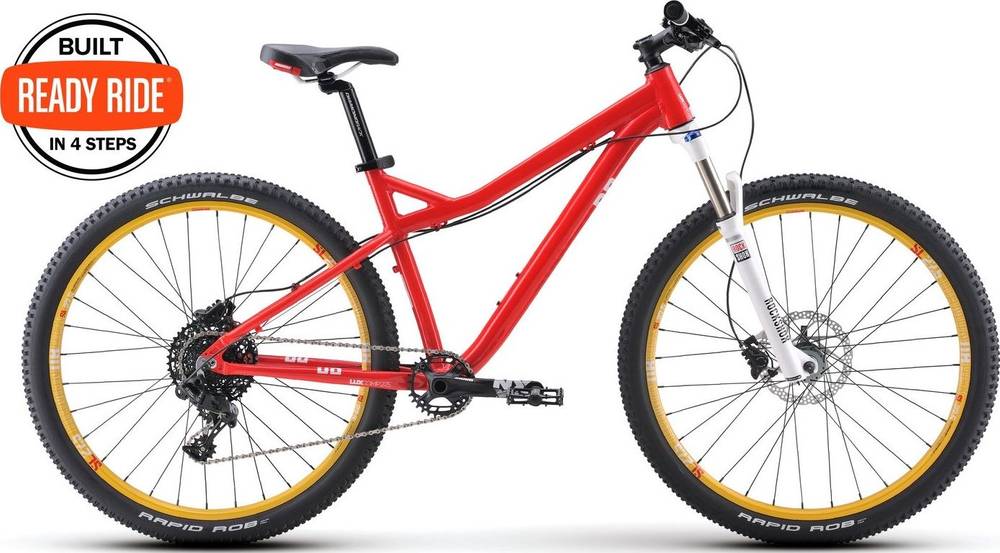

Lux Comp is a Diamondback Lux model. Diamondback released 26 bikes variations of this model so far. You can easily view all of the Diamondback Lux bikes models from 2017, here.
Model range prices
Diamondback Lux 2017 is the most economical model, with a starting price of 529$. Diamondback Lux Comp 2017 on the other hand costs 999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Diamondback released this model in 2017, its price was 999$. Comparing this to the average Crosscountry bike price, we see that the price is 90.69% lower.
Lux Comp components
Fork
The Lux Comp comes factory-installed with the RockShox 30 Silver TK fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Lux Comp bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lux Comp comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Lux Comp comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
