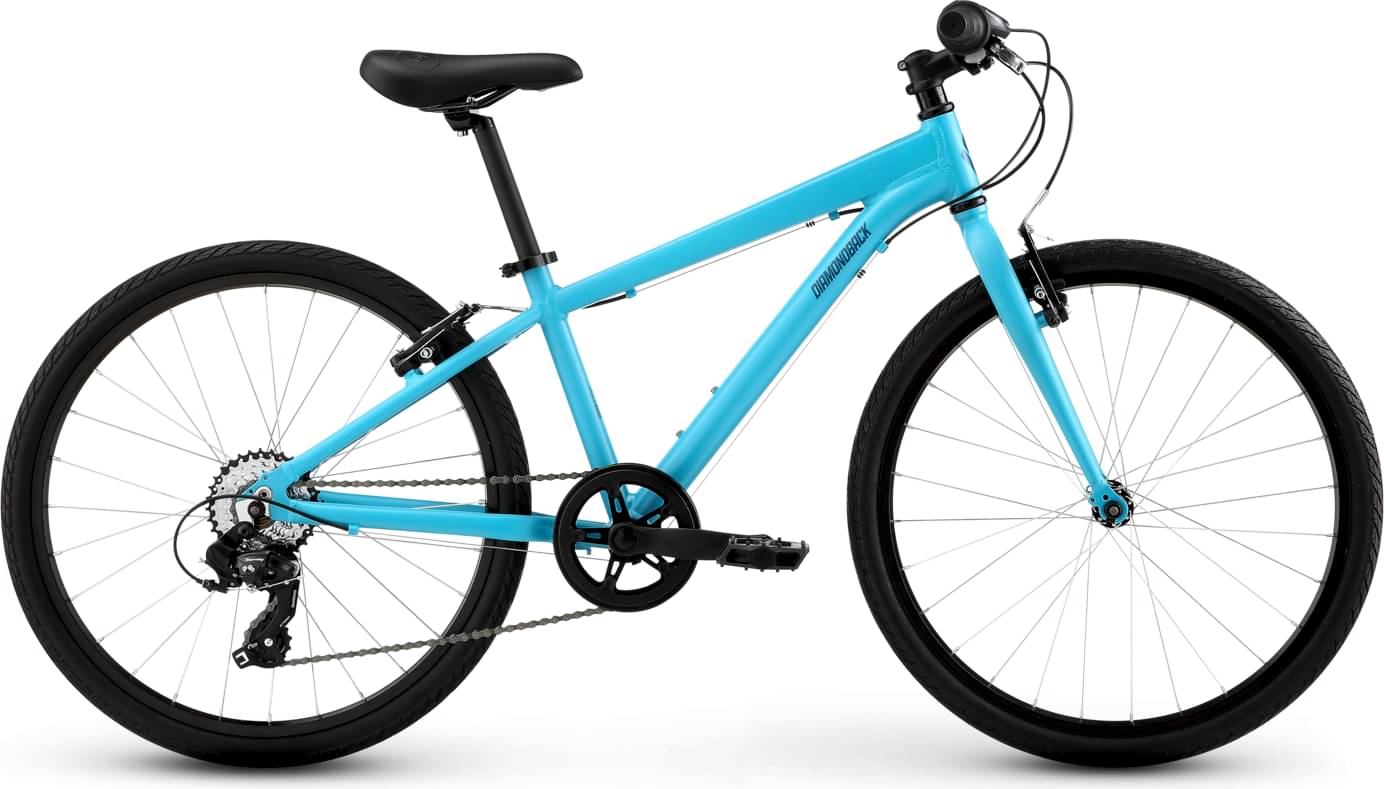

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
24" Low Standover 6061 Aluminum w/Replaceable Hanger
Suspension Fork
24" Hi-Ten Rigid, V-Mounts
Drivetrain
Rear Derailleur
Shimano Tourney FT 6/7 super short cage
Front Derailleur
N/A
Shift Levers
Shimano Revo 7 Speed (Rear)
Cassette
Shimano TZ21 7 Speed (13-28t)
Crank
152mm 3pc Steel, 36t w/Double Guard
Bottom Bracket
Sealed Mech Loose Ball
Chain
KMC Z51
Pedals
Resin Platform
Wheels
Front Hub
Aluminum 28h Nutted
Rear Hub
Aluminum 28h Nutted Freewheel
Rims
Aluminum Anodized 28h
Spokes
14g
Tires
24x1.75"
Brakes
Brakes
Aluminum V-Brake
Brake Levers
Aluminum V-Brake
Cockpit
Stem
Aluminum Ahead 60mm x 7° 31.8
Handlebar
580mm Aluminum 31.8, 25mm Rise
Grips
Soft Kraton Rubber
Headset
1-1/8" Threadless
Seat
Saddle
Diamondback Jr. Padded
Seatpost
Aluminum Micro Adjust 27.2 x 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.35 mm |
| Bottom Bracket Height | 260 mm |
| Front Center | 552 mm |
| Rake | 41 mm |
| Stack | 462 mm |
| Reach | 341 mm |
| Top Tube Length | 503 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 325 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 403 mm |
| Wheelbase | 952 mm |
| Bottom Bracket Drop | 35 mm |
| Standover Height | 623 mm |
| Wheels | 24" |
| Rider Min Height | 120 cm |
About this model
Metric 24 completes the Diamondback Metric model. 12 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Metric bikes models from 2023, by clicking here.
Model range prices
Diamondback Metric 24 2023 is the most economical model, with a starting price of 475$. Diamondback Metric 3 2023 on the other hand costs 975$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 475$. If we compare this with the average Hybrid bike cost we notice that the price is 18.32% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Metric 24 model has 24″ aluminum wheels. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
