Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Alivio, Acera -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum Tubing 700c Sport Fitness Geometry
Suspension Fork
Carbon Disc Road with Carbon Steer Tube
Drivetrain
Rear Derailleur
Shimano Alivio M3100SGS
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Acera Rapid Fire
Cassette
Shimano 9 Speed (11-34t)
Crank
Shimano M371 Altus, Aluminum 26/36/48t with Guard
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC HG53
Pedals
Aluminum Body/Steel Cage
Wheels
Front Hub
Formula Aluminum Disc Quick Release 32h
Rear Hub
Formula Aluminum Disc 32h
Rims
Aluminum Double Wall with CNC Side Wall 32h
Spokes
14g Stainless Steel
Tires
Vee Tire Zilent, 700x35c, Wire Bead
Brakes
Brakes
Tektro T275 Hydraulic Disc with160mm Rotors
Brake Levers
Tektro Hydraulic T275
Cockpit
Stem
Aluminum 31.8
Handlebar
Aluminum 15mm Rise, 31.8
Grips
ERGO Comfort
Headset
Integrated 1-1/8"
Seat
Saddle
DB Performance Padded,w/Steel Rail
Seatpost
Aluminum Micro Adjust 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.5 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 578 mm | 599 mm | 620 mm | 640 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 96 mm | 86 mm | 81 mm | 76 mm |
| Stack | 538 mm | 552 mm | 566 mm | 592 mm |
| Reach | 371 mm | 377 mm | 388 mm | 395 mm |
| Top Tube Length | 538 mm | 548 mm | 563 mm | 578 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 325 mm | 425 mm | 490 mm | 525 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1001 mm | 1022 mm | 1043 mm | 1064 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 682 mm | 713 mm | 763 mm | 792 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

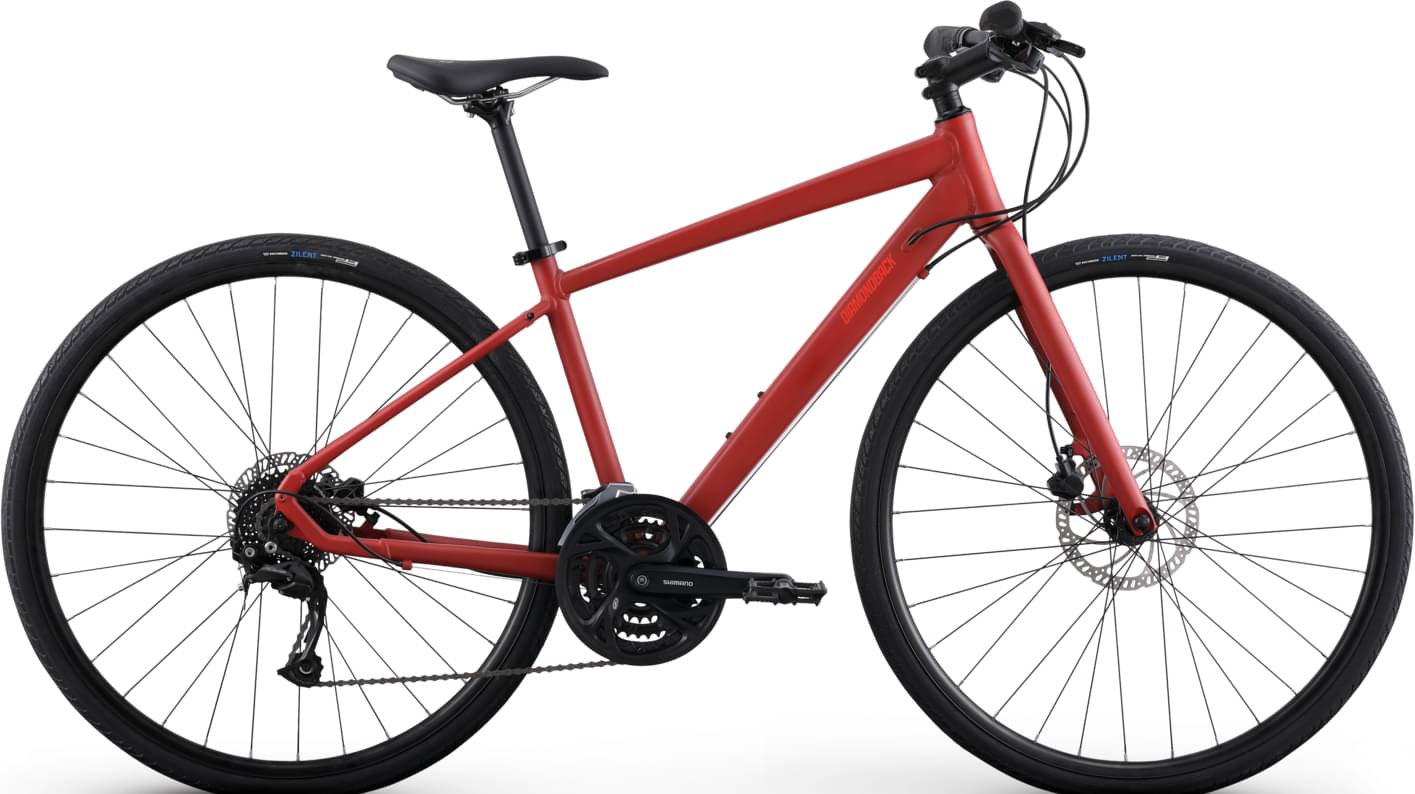

About this model
Metric 3 is part of the Diamondback Metric model. There are 12 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Diamondback Metric 24 2022 is the most affordable bike of this model and has a price of 475$. On the other hand, Diamondback Metric 3 2022, is the most expensive and costs 975$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Diamondback released this model in 2022, its price was 975$. If we compare this with the average Hybrid bike cost we notice that the price is 73.49% more expensive.
Overview of components
Fork material
Metric 3 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Metric 3 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Metric 3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Metric 3 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
