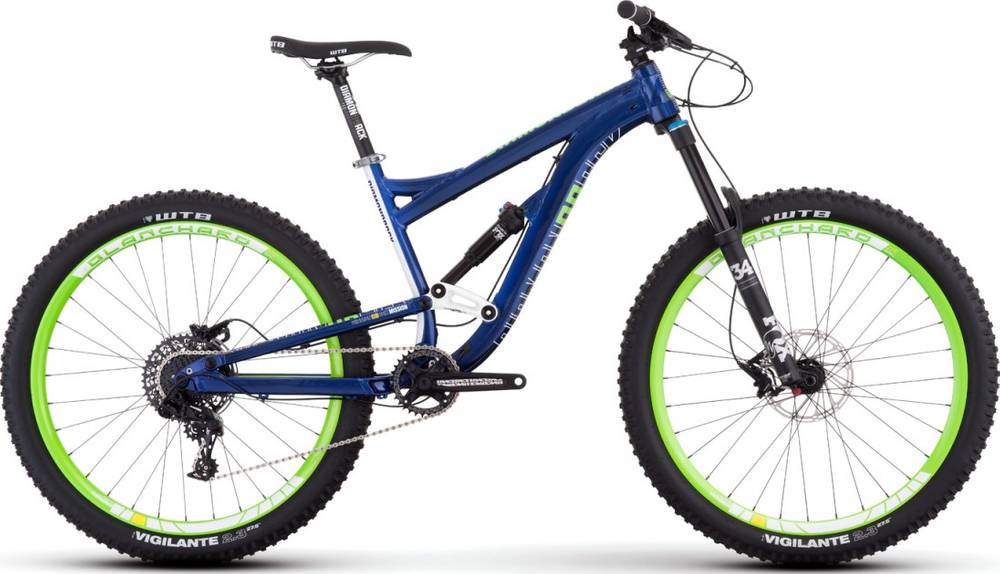

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 34
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mission All Mountain 27.5, 160mm 6061-T6 Weapons Grade Aluminum w/ Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, 1.5" Tapered Head Tube, Knuckle Box Technology, ISCG-05, 142x12mm E-Thru-axle Drop Out
Suspension Fork
Fox Performance 34 Float 27.5", 160mm Travel, Open Cartridge, 3 Position Lever w/ External Rebound Adjust, 1.5" Butted Alloy Tapered Steerer Tube, 34mm Easton Aluminum Stanchions, w/ 15mm Thru-axle
Rear Shock
Fox Float DPS, 3 Position Lever, "LV" Eyelet, 8.5x2.5" Air, w/ Rebound Adjust
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
Raceface Ride, 32T "Narrow Wide" Single Ring
Bottom Bracket
Raceface Outboard Bearing
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy,15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, 142x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
WTB Vigilante Comp, 27.5x2.3"
Brakes
Brakes
SRAM Level T Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Cockpit
Stem
DB35 Alloy, 50mm Reach, 35mm Bar Bore
Handlebar
DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge
Seat
Saddle
WTB Volt Comp
Seatpost
DB Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 557 mm | 582 mm | 608 mm | 633 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 105 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1132 mm | 1157 mm | 1174 mm | 1196 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 760 mm | 773 mm | 798 mm | 811 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mission 1 completes the Diamondback Mission model. 15 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Mission 1 components
Fork
The Mission 1 comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Mission 1 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Diamondback Mission 1 bike has the Fox Float DPS model installed, and has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Diamondback Mission 1 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Mission 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Diamondback Mission 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
